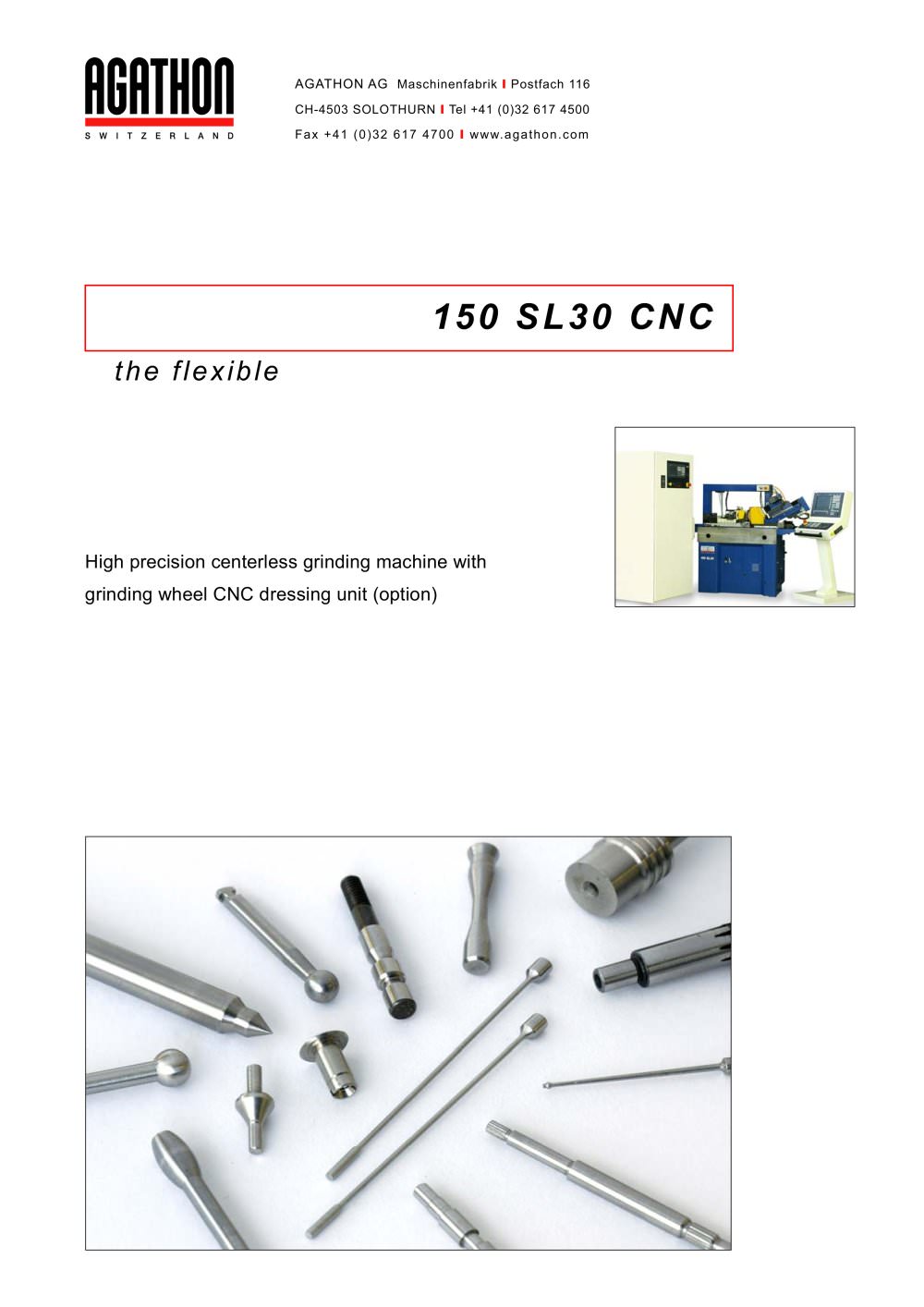

150 SL 30 CNC Applications Simple equipment Advantages The AGATHON 150 SL 30 CNC is suitable for a vast spectrum of parts with diame- ters 10 mm and a plunge length of max. 60 mm. On the basis of its good accessibil- ity and simple changeovers, the machine can be used for both small and large production runs. The 150 SL 30 CNC is also available without CNC dressing. On this model, the dressing attachment is equipped with a template holder. A stepping motor is used to provide the infeed of the X-axis. An hydropneumatic drive executes the axial displacement in the Y-direction. The machine has a...

Siemens 840 D control unit Automatic dressing of the grinding wheel Contour editor CNC dressing (option) Options / Peripherals Grinding example A precision CNC dressing device with rotary or stationary dressing tool is installed on the grinding-wheel side. The device is equipped with a Heidenhain glass scales with a resolution of 0.0001 mm. Rotating dressing enables to dress conven- tional as well as CBN and diamond grinding wheels on the machine. The diamond disc has a diameter of 90 mm and can have different shapes in accordance with the application. Dressing amount, dressing interval and number...

Production Workpiece diameter range 0.1 to 10 mm Grinding wheel Control wheel Diameter 200 mm Width 50 mm (optional 63 mm) Peripheral speed with frequency converter (continuously adjustable) 20 to 63 m/s Power of the grinding wheel motor 2.2 kW Diameter 100 mm Width 50 mm (optional 63 mm) Peripheral speed (continuously adjustable) 0 to 94 m/min Speed (continuously adjustable) 0 to 300 min Control wheel dressing With template, cross slide movement hydropneumatic Precision CNC dressing unit with rotary tool (diamond disk for all grinding means) 90 mm Precision CNC dressing unit with stationary...
