150 SL 20D
1 / 2 PagesView full catalog
150 SL 20D
Product catalog summary
Product Overview: The document describes the AGATHON 150 SL20D, a high precision centerless grinding machine designed for through-feed grinding. It is manufactured by AGATHON AG in Solothurn, Switzerland.
Technical Specifications:
- Workpiece Diameter Range: 0.1 to 10 mm
- Grinding Wheel: Diameter of 150 mm, width of 50 mm (optional 63 mm), peripheral speed of 25/35/45 m/s (up to 63 m/s with optional frequency converter), and motor power of 2.2 kW.
- Control Wheel: Diameter of 100 mm, width of 50 mm (optional 63 mm), speed adjustable from 20 to 300 min-1, and inclination of -2.5° / +0.5°.
- Dressing: Both grinding and control wheels are dressed with a template and hydropneumatic cross slide movement.
- Loading Attachments: Options include manual loading with a table or automatic loading with a handling system, vibration feeder, HF loader, and conveyor belts.
- Connection Data and Weight: Power supply of 3x400V 50/60 Hz, machine weight of 700 kg, compressed-air supply of 6 bar, air consumption of 7.5 m³/h, and space requirement of approximately 6 m².
Services Offered: AGATHON provides engineering for customer-specific handling solutions, optimized grinding tools and technologies, training courses for machine operation and maintenance, and international after-sales service.
See more
Catalog excerpts

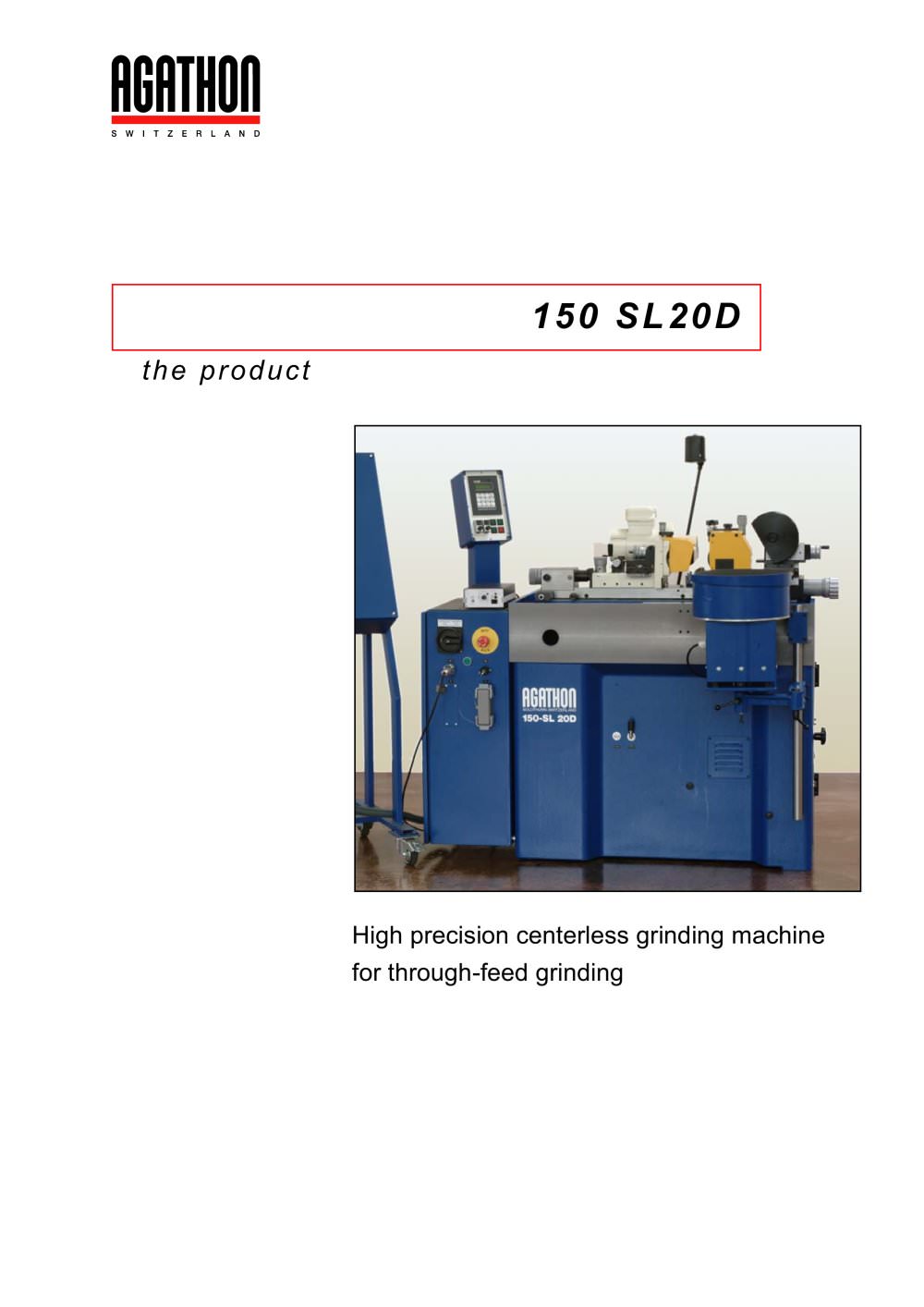

High precision centerless grinding machinefor through-feed grinding >
Open the catalog to page 1
Production Workpiece diameter range 0.1 to 10 mm Grinding wheel Diameter 150 mm Width 50 mm (option 63 mm) Peripheral speed 25/35/45 m/s(with optional frequency converter max. 63 m/s)Power of grinding wheel motor 2.2 kW Control wheel Diameter 100 mm Width 50 mm (option 63 mm) Speed continuous adjustable (AC servomotor) 20 to 300 min > -1 Inclination of the control wheel -2.5 / +0.5а Grinding wheel dressing With template, cross slide movement hydropneumatic Control wheel dressing AGATHON services for high precision centerless grinding machines With template, cross slide movement hydropneumatic...
Open the catalog to page 2All AGATHON catalogs and technical brochures
