150 SL 20
Product catalog summary
Product Overview: The 150 SL20 is a high precision centerless grinding machine designed for through-feed and plunge grinding methods, manufactured by AGATHON AG in Switzerland.
Technical Specifications:
- Workpiece Diameter Range: 0.1 to 10 mm
- Grinding Wheel: Diameter of 150 mm (optional 200 mm), width of 50 mm (optional 63 mm), peripheral speed of 25/35/45 m/s (up to 63 m/s with optional frequency converter), and motor power of 2.2 kW.
- Control Wheel: Diameter of 100 mm, width of 50 mm (optional 63 mm), speed adjustable from 1 to 300 min-1, and inclination of -2.5° / +0.5°.
- Plunge Axis: Operated by an AC servomotor with a smallest programmable step of 0.1 μm and infeed speed ranging from 0.001 mm/s to 25 mm/s.
- Dressing: Both grinding and control wheel dressing are performed with templates and hydropneumatic cross slide movement.
- Loading Attachments: Options include manual loading with a table or automatic loading with a handling system, vibration feeder, HF loader, and conveyor belts.
- Connection Data and Weight: Power supply of 3x400V 50/60 Hz, machine weight approximately 940 kg, compressed-air supply of 6 bar, air consumption of 7.5 m³/h, and space requirement of approximately 6 m².
Services Offered: AGATHON provides engineering for customer-specific handling solutions, optimized grinding tools and technologies, training courses for machine operation and maintenance, and international after-sales service.
Additional Information: The document notes that technical modifications are subject to change as of the date 12.09.2007.
See more
Catalog excerpts

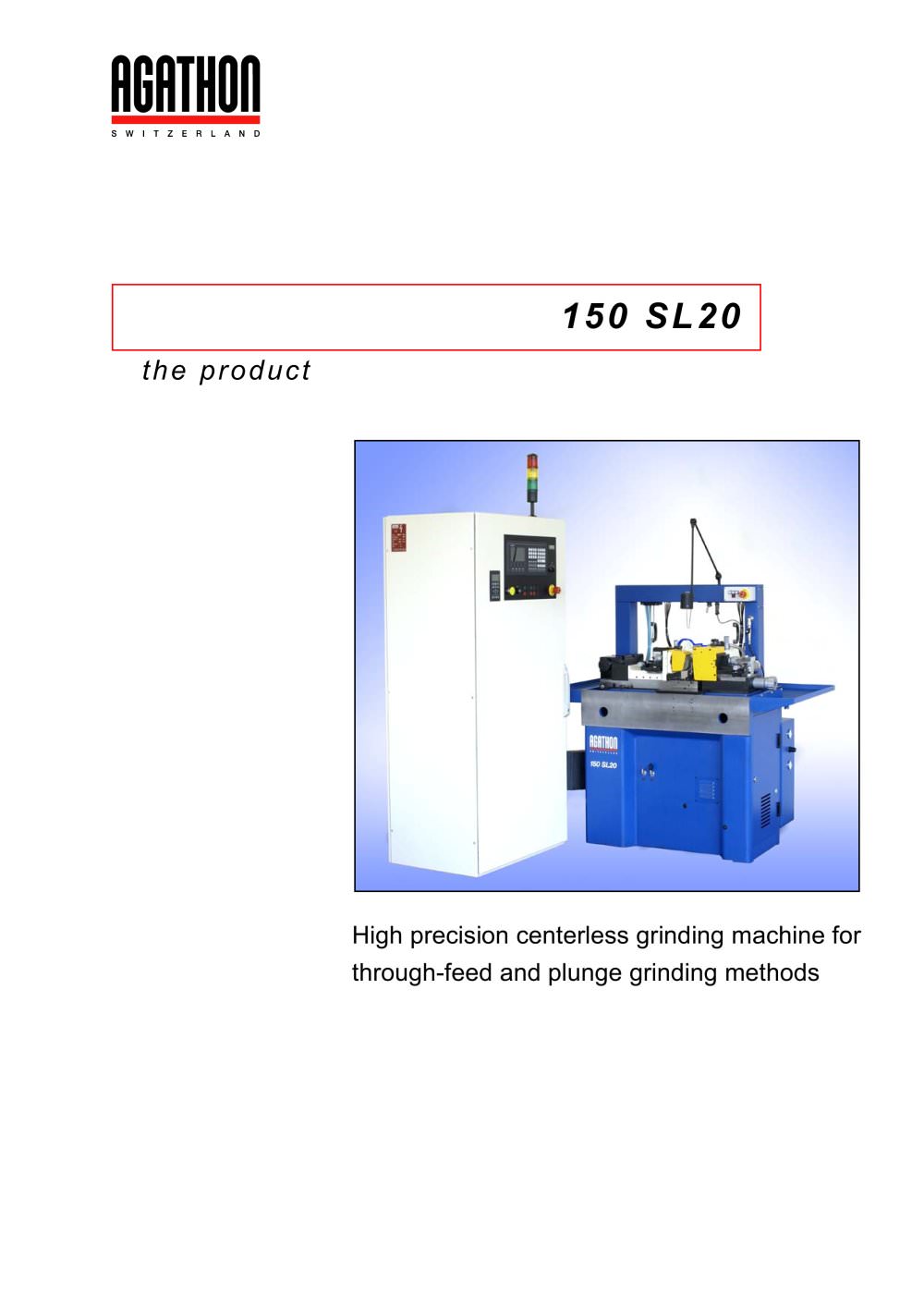

High precision centerless grinding machine for through-feed and plunge grinding methods >
