Portable Pressure Measuring Instruments S2600

Product catalog summary

Overview: The S2600 series is a professional instrument line designed for precise measurement of gaseous media in various fields such as industry, medical, and air conditioning. These portable pressure measuring instruments are ergonomically designed for ease of use and feature magnets for hands-free operation.

Key Features:

Robust protective housing to guard against dirt, blows, and shocks.
Available in three pressure measuring ranges.
Displays measured values in multiple units including mbar, Pa, hPa, kPa, mmHg, inHg, and PSI.
Automatic zero correction and a hold-function for convenient readings.
Certified according to EN 50379-2 for official measurements.

Applications: Ideal for measuring pressure, vacuum, and differential pressure in applications such as chimney draft measurement, inlet and nozzle pressure measurement, pressure drop in gases, filter checks, ventilation systems, production and extraction systems, and laboratory vacuum measurement.

Technical Specifications:

Measuring Ranges: FZM 30: 150 mbar, DMG 15: 1,000 mbar, DMG 25: 5,000 mbar.
Overpressure Safety: FZM 30: max. 1.35 bar, DMG 15: max. 3 bar, DMG 25: max. 10 bar.
Resolution: Varies by model and pressure range.
Accuracy: Generally 1.0% +/- 1 digit of the measured value.
Connection: FZM 30, DMG 15: 8 mm diameter; DMG 25: 3 mm diameter.
Power Supply: 2 x 1.5 V Mignon batteries.
Display: LCD, transflective.
Weight and Dimensions: Approx. 250 g; 143 x 66 x 37 mm.
Approvals: EG Directive 89/336/EWG (CE), EN 50379-2, WEEE/RoHS.

Scope of Delivery: Each instrument comes with a protective housing and is available in three types: FZM 30, DMG 15, and DMG 25.

Catalog excerpts

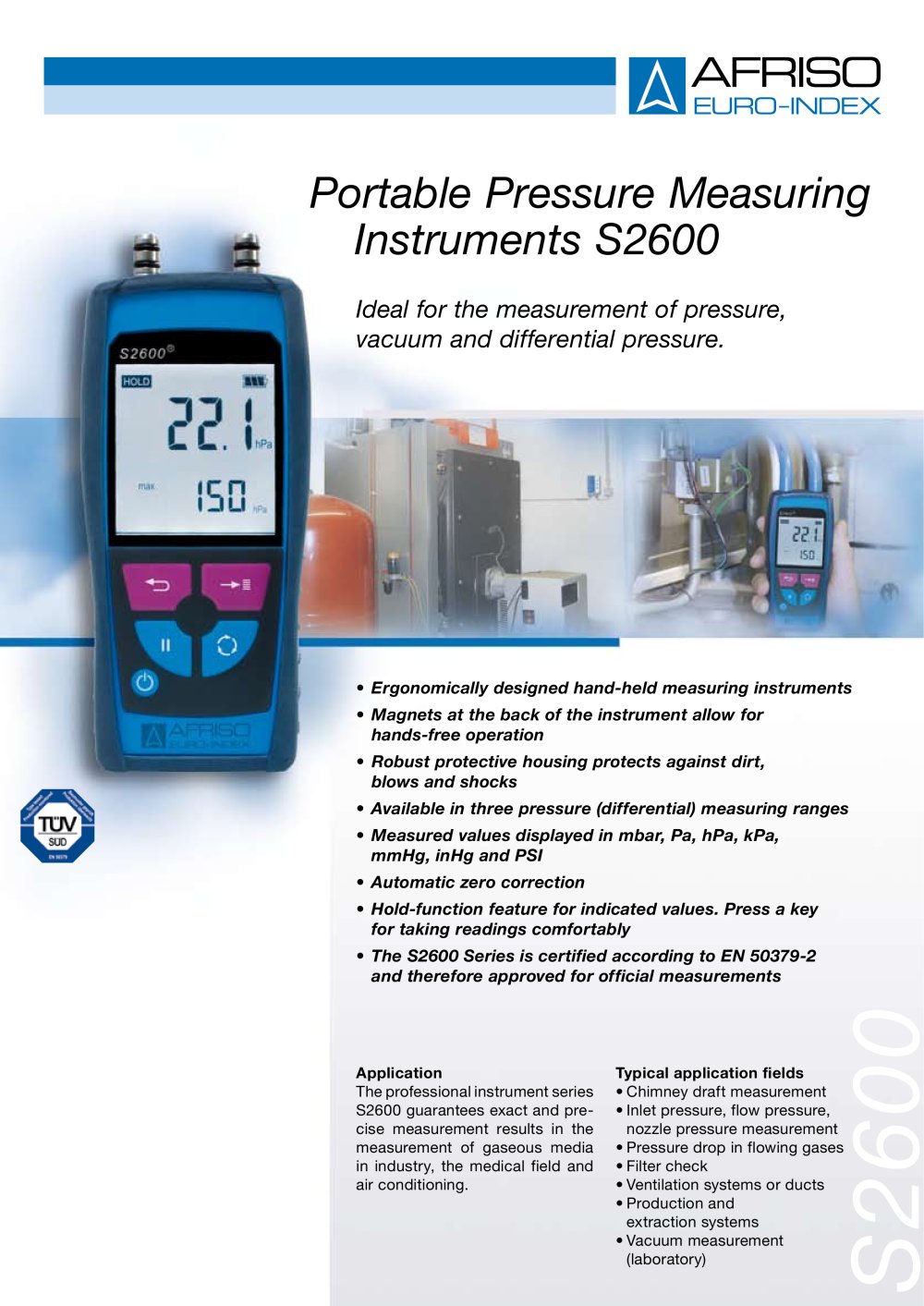

Portable Pressure Measuring Instruments S2600-1

Application The professional instrument series S2600 guarantees exact and precise measurement results in the measurement of gaseous media in industry, the medical field and air conditioning. Portable Pressure Measuring Instruments S2600 S2600 • Ergonomically designed hand-held measuring instruments • Magnets at the back of the instrument allow for hands-free operation • Robust protective housing protects against dirt, blows and shocks • Available in three pressure (differential) measuring ranges • Measured values displayed in mbar, Pa, hPa, kPa, mmHg, inHg and PSI • Automatic zero correction • Hold-function feature for indicated values. Press a key for taking readings comfortably • The S2600 Series is certified according to EN 50379-2 and therefore approved for official measurements Ideal for the measurement of pressure, vacuum and differential pressure. Typical application fields • Chimney draft measurement • Inlet pressure, flow pressure, nozzle pressure measurement • Pressure drop in flowing gases • Filter check • Ventilation systems or ducts • Production and extraction systems • Vacuum measurement (laboratory)

Open the catalog to page 1

Portable Pressure Measuring Instruments S2600-2

Ident-Nr. 991517 06615 02/09 Your specialist distributor Technical Specification Measuring ranges FZM 30: 150 mbar DMG 15: 1.000 mbar DMG 25: 5.000 mbar Overpressure safety FZM 30: max. 1.35 bar DMG 15: max. 3 bar DMG 25: max. 10 bar Resolution FZM 30: 0.01 mbar (< 19.99) or 0.1 mbar (> 20) DMG 15: 0.1 mbar (< 199.9) or 1 mbar (> 200) DMG 25: 1 mbar (< 1999) or 10 mbar (> 2000) Accuracy [% of measured value] FZM 30: 1.0 +/- 1 digit (< 130 mbar) bzw. 1.5 +/- 1 digit (> 150 mbar) DMG 15: 1.0 +/- 1 digit (10 to 1.000 mbar) DMG 30: 1.0 +/- 1 digit (20 to 5.000 mbar) Connection FZM 30, DMG 15: 8 mm...
