EUROLYZER ST

Product catalog summary

Application
The EUROLYZER ST is designed for checking and servicing small to medium-sized heating systems according to BlmSchV standards. It is also suitable for safety-technical CO checks of gas-fired installations. The instrument is ideal for bi-valency combination and efficiency-modulating BHKW heating installations, providing accurate 'Eta' value calculations for all combustion heating systems with fuel-specific dewpoint calculations.

Features

Intuitive user guidance with a touchpad for scrolling.
High-resolution TFT color monitor with excellent contrast.
Choice of display colors for measurement values.
Data storage on a Micro-SD card for flexibility.
Extended CO measuring range with H2 compensation.
Multi-tasking function with two active display levels.
Separate measurement programs for differential pressure and temperature.
Compatible with oil, gas, and pellet-fired installations.
NiMH rechargeable battery providing up to 8 hours of measurement.
Cost-effective with a high price/quality ratio.

Measurement Capabilities

Flue gas analysis, pressure measurement, and temperature measurement.
NO/NOx measurement with a range of 0 to 2,000 ppm and a resolution of 1 ppm.

Technical Specifications

Memory: Micro-SD card up to 4 GB.
Housing: Mineral fiber plastic with a magnet.
Power Supply: NiMH rechargeable battery 6V/2Ah, with external mains adaptor and charger.
Temperature: Plug connector system for NiCr-Ni thermoelements (Type K).
Connections: Draught/Pressure (7 mm diameter), Gas (8 mm diameter).
Data Communication: USB interface, wireless infra-red printer interface, Bluetooth (optional).
Approvals: Compliant with BlmSchV, KUO, and EN 50379-2.
Weight: Approximately 400 g.

Scope of Delivery
The package includes the EUROLYZER ST, calibration protocol, mains adaptor, flue gas probe, condensate filter cartridge, ambient air sensor, connector set for gas fittings, protective sleeve with magnet, and an aluminum instrument case.

Options

Package memory function.
Bluetooth interface.
Printer.

Measured and Calculated Values

Measured: O2, CO/H2, NO, flue gas temperature, combustion air temperature, draught, pressure.
Calculated: CO undiluted, NOx, Lambda, CO2, efficiency (Eta), temperature difference, pressure difference, Eta-BW, flue gas losses (qA), dewpoint.

Measuring Ranges and Accuracy

Flue gas temperature: 0 °C to +1,000 °C, resolution 1 °C, accuracy ± 1 °C + 1 digit (up to 300 °C), ± 1% of measured value (above 300 °C).
External wall or air temperature: -20 °C to +200 °C, resolution 0.1 °C, accuracy ± 3 °C + 1 digit (-20.0 to 0.0 °C), ± 1 °C + 1 digit (-0.1 to +200.0 °C).
Draught/Differential pressure: ± 50 hPa (draught)/± 130 hPa (diff.-press.), accuracy ± 2 Pa (up to ± 2 hPa), ± 1% of measured value (up to ± 50 hPa), ± 1.5% of measured value (above ± 50 hPa), resolution 1 Pa (= 0.01 hPa).
O2 Measurement: 0 to 21 vol.-%, resolution 0.1 vol.-%, accuracy ± 0.2 vol.-% of measured value.
CO2 Determination: Indicating range 0 to CO2 max., resolution 0.1 vol.-%, accuracy ± 0.2 vol.-%.
CO Measurement: 0 to 5,000 ppm (nominal)/0 to 9,999 (max.), resolution 1 ppm, accuracy ± 5 ppm (up to 50 ppm), ± 5% of measured value (above 50 ppm).

Catalog excerpts

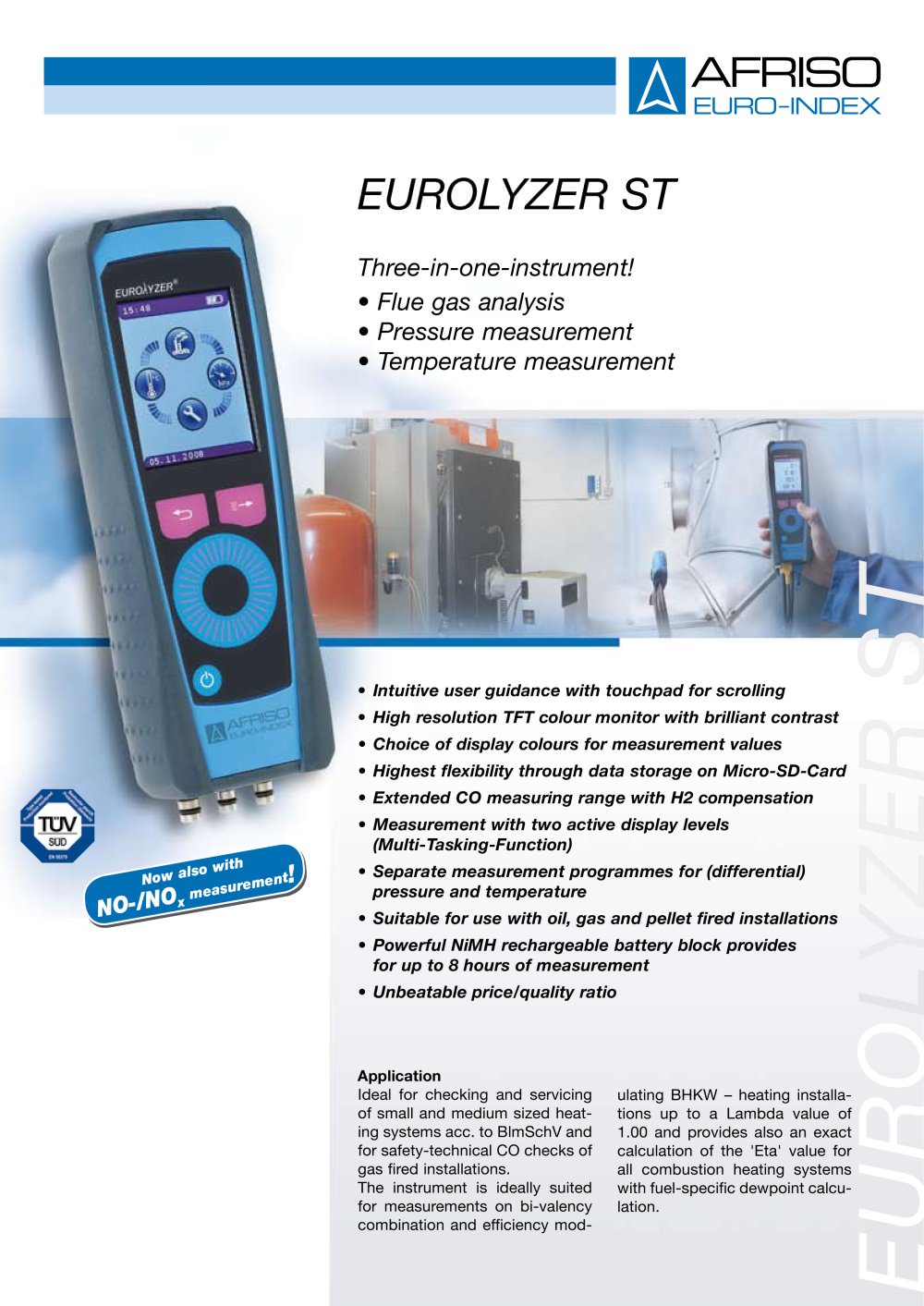

Application Ideal for checking and servicing of small and medium sized heating systems acc. to BlmSchV and for safety-technical CO checks of gas fired installations. The instrument is ideally suited for measurements on bi-valency combination and efficiency modulating BHKW – heating installations up to a Lambda value of 1.00 and provides also an exact calculation of the 'Eta' value for all combustion heating systems with fuel-specific dewpoint calculation. EUROLYZER ST EUROLYZER ST • Intuitive user guidance with touchpad for scrolling • High resolution TFT colour monitor with brilliant contrast • Choice of display colours for measurement values • Highest flexibility through data storage on Micro-SD-Card • Extended CO measuring range with H2 compensation • Measurement with two active display levels (Multi-Tasking-Function) • Separate measurement programmes for (differential) pressure and temperature • Suitable for use with oil, gas and pellet fired installations • Powerful NiMH rechargeable battery block provides for up to 8 hours of measurement • Unbeatable price/quality ratio Now also with NO-/NOx measurement! Three-in-one-instrument! • Flue gas analysis • Pressure measurement • Temperature measurement

Open the catalog to page 1

Ident-Nr. 991517 06505 11/08 Your specialist distributor AFRISO-EURO-INDEX GmbH • Lindenstraße 20 • DE-74363 Güglingen/Württ. • Germany Phone +49 (0) 71 35/1 02-0 • Fax +49 (0) 71 35/1 02-1 47 • [email protected] • www.afriso.de NO-Measurement Measuring range: 0 ... 2.000 ppm Resolution: 1 ppm Accuracy: ± 5 ppm of meas. value Memory Micro-SD-card (Option: std. commercial up to max. 4 GB) Housing (Protective Sleeve) Mineral fibre plastic (slot plastic with magnet) Power Supply NiMH rechargeable battery 6V/2Ah, external mains adaptor and charger Temperature Plug connector system for NiCr-Ni thermoelements...
