AFM 60 FH

Product catalog summary

Overview
The AFM 60 FH is a simplified and versatile version of the AFM 60 Combi head, designed for felling and loading operations. It offers a cost-effective alternative to expensive feller buncher machines, suitable for felling, cross-cutting, piling, loading, and building forestry roads.

Specifications

Felling and Cutting: Maximum felling diameter is 80 cm, and maximum cross-cutting diameter is 60 cm. It uses a chain saw with an output of 45 kW and a chain speed of 40 m/s. The chain pitch options are .404 or 3/4", with a maximum saw bar length of 82 cm and a chain oil tank volume of 11 liters. Automatic chain tensioning is available with the .404 saw bar.
Loading: The maximum opening of arms is 1120 mm, with a maximum grip area of 0.42 m².
Dimensions and Weight: The maximum width is 1340 mm, length is 1380 mm, frame height is 1000 mm, and the weight including the rotator is 1400 kg.
Hydraulic System: It uses an LS directional valve type with a maximum pressure of 320 bar.

Recommended Base Machine
The AFM 60 FH is compatible with forest machines or excavators weighing 16–25 tons, requiring a minimum engine output of 80 kW and a minimum oil flow of 250 l/min.

Contact Information
AFM-Forest Ltd, Vasarakatu 21, 403020 Jyväskylä, FINLAND. Tel: +358 20 765 9050, Fax: +358 20 765 9051, Website: www.afm-forest.fi

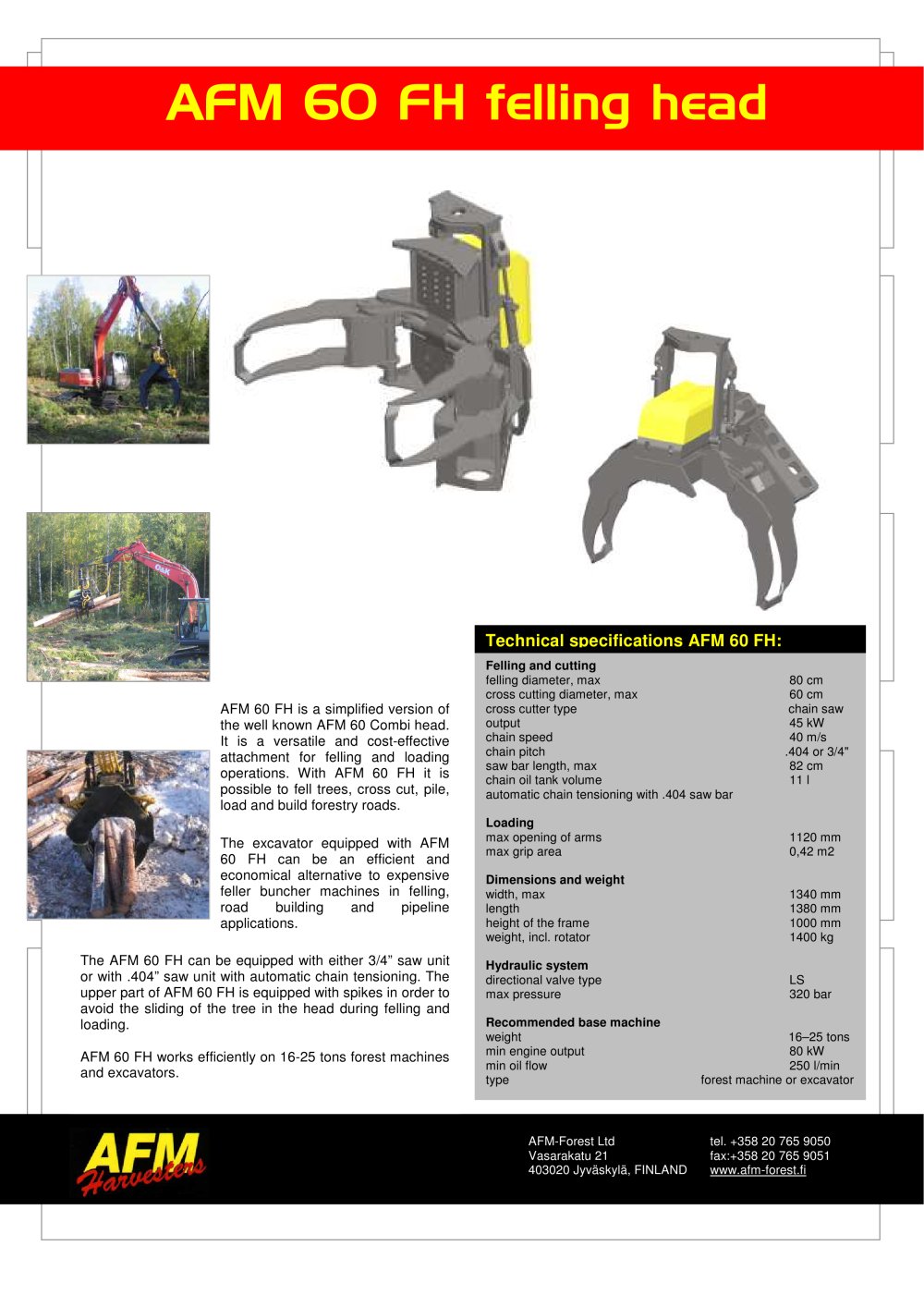

Catalog excerpts

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:13.00pt "Arial", sans-serif; } .font1 { font:15.00pt "Arial", sans-serif; } .font2 { font:16.00pt "Arial", sans-serif; } .font3 { font:30.60pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial Black", sans-serif; } .font5 { font:57.00pt "Arial Black", sans-serif; } AFM 60 FH felling head AFM 60 FH is a simplified version of the well known AFM 60 Combl head. It is a versatile and cost-effective attachment for felling and loadlng oprations. With AFM 60 FH rt is possible to tell trees. cross eut. pile, load and build forestry roads. Technical spcifications AFM 60 FH: Felling and cutting lolling diameter. max 80 cm cross cutting diameter. max 60 cm c驯osscutter type cham saw output 45 kW diain speed 40 m/s chain pneh 404 or 3/4p saw bar length, max 82 cm chain ol tank volume 1tl automate chain tensioning with 404 saw bar Loadlng max opemng o* arms 1120 mm max giip area 0.42 m2 Dimensions and weight wdth, max 1340 mm length 1360 mm height ol the trame 1000 mm weight, incl rotator 1400 kg Hydraulic System direct looal valve type LS max pressure 320 bar Recommended base machine weight 16-25 tons min engine output 80 kW mm i: i flow 250 Lftim type forest machine or excavator The excavator equipped with AFM 60 FH can be an efficient and economical alternative to expensive feller buncher machines in felling. road building and pipeline applications. The AFM 60 FH can be equipped wrth erther 3/4* saw unit or wlth .404* saw unit wlth automate chaln tenslonlng, The upper part of AFM 60 FH is equipped with spikes m order to avotd the sJJding of the tree in the head during felling and loadlng. AFM 60 FH works effioently on 16*25 tons forest machines and excavators. AFM AFM-Forest LW Vasarakatu 21 403020 Jvvaskyla. PINLAND M. '358 20 765 9050 !ax>358 20 765 9051 «wwafm-fixeslh

Open the catalog to page 1
