Specifications:

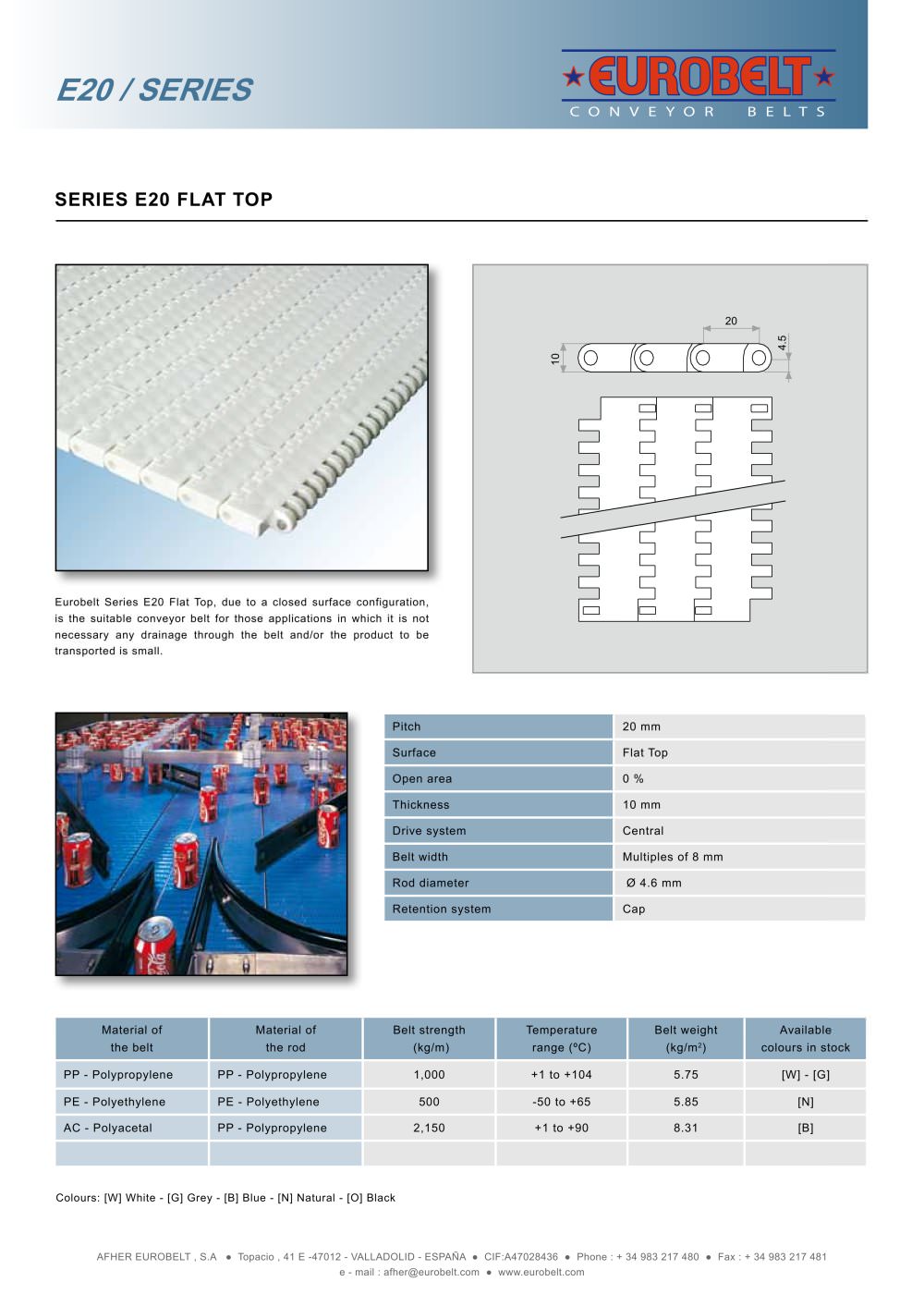

The Eurobelt Series E20 Flat Top conveyor belt is designed with a closed surface configuration, making it ideal for applications where drainage is not required and for transporting small products. The belt is available in different materials, each with specific properties:

• Polypropylene (PP): Belt strength of 1,000 kg/m, temperature range from +1 to +104 ºC, and weight of 5.75 kg/m². Available in white and grey.
• Polyethylene (PE): Belt strength of 500 kg/m, temperature range from -50 to +65 ºC, and weight of 5.85 kg/m². Available in natural color.
• Polyacetal (AC): Belt strength of 2,150 kg/m, temperature range from +1 to +90 ºC, and weight of 8.31 kg/m². Available in blue.

Design Features:

• Pitch: 20 mm
• Surface: Flat Top
• Open Area: 0%
• Thickness: 10 mm
• Drive System: Central
• Belt Width: Multiples of 8 mm
• Rod Diameter: Ø 4.6 mm
• Retention System: Cap

Color Options: White [W], Grey [G], Blue [B], Natural [N], Black [O].
