Specifications:

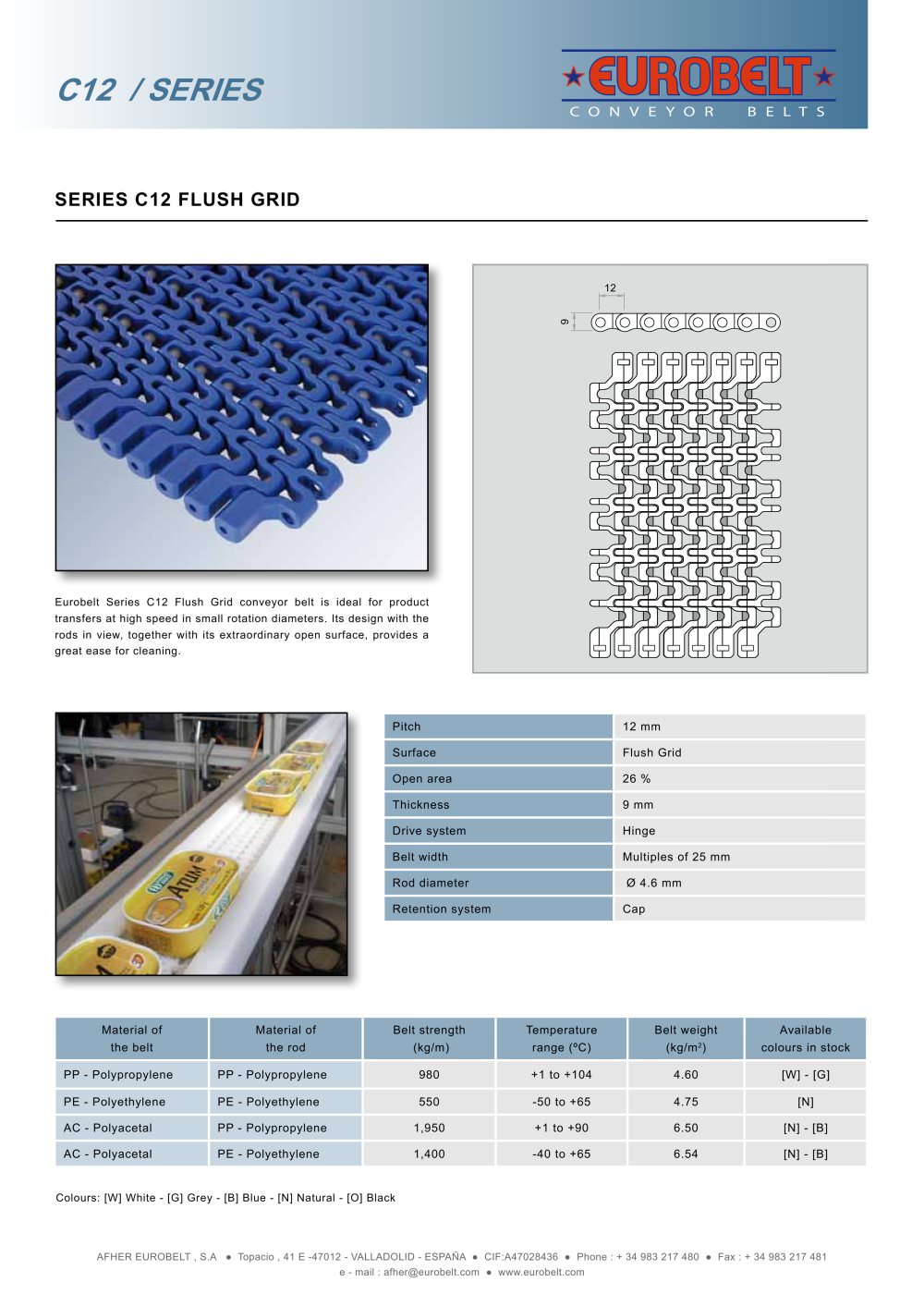

The Eurobelt Series C12 Flush Grid conveyor belt is designed for high-speed product transfers with small rotation diameters. It features a pitch of 12 mm, a flush grid surface, and an open area of 26%. The belt thickness is 9 mm, and it uses a hinge drive system. Belt widths are available in multiples of 25 mm, with a rod diameter of 4.6 mm and a cap retention system.

Materials and Performance:
The belt is available in different material combinations:

• PP (Polypropylene) belt and rod: Strength of 980 kg/m, temperature range of +1 to +104°C, weight of 4.60 kg/m², available in white and grey.
• PE (Polyethylene) belt and rod: Strength of 550 kg/m, temperature range of -50 to +65°C, weight of 4.75 kg/m², available in natural.
• AC (Polyacetal) belt with PP rod: Strength of 1,950 kg/m, temperature range of +1 to +90°C, weight of 6.50 kg/m², available in natural and blue.
• AC (Polyacetal) belt with PE rod: Strength of 1,400 kg/m, temperature range of -40 to +65°C, weight of 6.54 kg/m², available in natural and blue.

Design and Functionality:
The Series C12 is engineered to minimize dead areas between machines and conveyors, reducing them to 20 mm. This design enhances productivity by ensuring seamless product movement without loss.

Color Options:
The belts are available in various colors: White (W), Grey (G), Blue (B), Natural (N), and Black (O).
