AEMC Instruments
SC-1 Voltage Testers

SC-1 Voltage Testers

Product catalog summary

Overview: The Voltage Tester Model SC-1 is designed for quick and easy AC voltage testing, suitable for various applications using both contact and non-contact methods. It features an LED light for indicating normal operation and offers approximately 5 hours of continuous operation on battery power.

Features:

AC Voltage Test: Contact method ranges from 70 to 250VAC, while the non-contact method ranges from 70 to 600VAC.
DC Voltage Test: Capable of testing up to 250VDC.
Polarity Test: Ranges from 1.5V to 36VDC.
Continuity Check: Ranges from 0 to 5MΩ.
Microwave Leakage Detection: Detects leakage ≥5mW/CM2.
Temperature Range: Operates between 14 to 122°F (-10° to +50°C).
Frequency Range: Operates between 50 to 500Hz.
Facilitates reading current draw of devices plugged into it and through extension cords.

Applications:

Connection wiring check
Ground/earthing check
Capacitor, diode, rectifier, and transistor (NPN/PNP type) testing
Ignition check
Testing bulbs, relay coils, fuses, and speakers
Fault finding and locating broken wires
Static radiation pickup (TV or monitor)

Ordering Information: The Voltage Tester Model SC-1 can be ordered using Catalog No. 2121.01.

Specifications:

AC Voltage Test: Contact method from 70 to 250VAC, non-contact method from 70 to 600VAC.
Frequency Range: 50 to 500Hz.
DC Voltage Test: Up to 250VDC.
Polarity Check: 1.5V to 36VDC.
Continuity Check: 0 to 50MΩ.
Power Source: Requires two 1.5V alkaline or silver type batteries.

Contact Information: For technical assistance, customer support, sales, repair, and calibration services, contact AEMC Instruments at their respective emails and phone numbers provided in the document.

Catalog excerpts

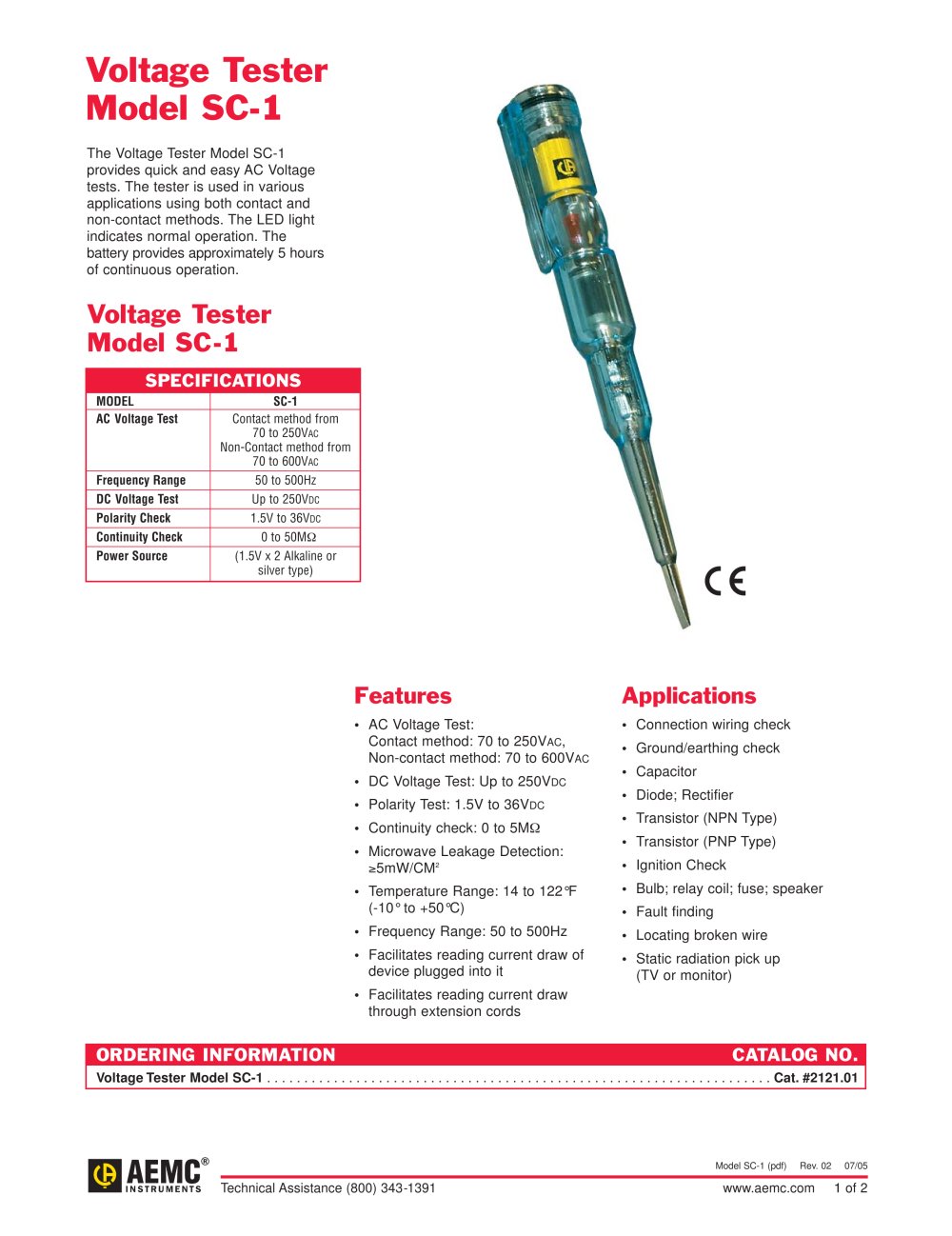

The Voltage Tester Model SC-1 provides quick and easy AC Voltage tests. The tester is used in various applications using both contact and non-contact methods. The LED light indicates normal operation. The battery provides approximately 5 hours of continuous operation. Features • AC Voltage Test: Contact method: 70 to 250VAC, Non-contact method: 70 to 600VAC • DC Voltage Test: Up to 250VDC • Polarity Test: 1.5V to 36VDC • Continuity check: 0 to 5MÙ • Microwave Leakage Detection: 5mW/CM2 • Temperature Range: 14 to 122°F (-10° to +50°C) • Frequency Range: 50 to 500Hz • Facilitates reading current draw of device plugged into it • Facilitates reading current draw through extension cords Applications • Connection wiring check • Ground/earthing check • Capacitor • Diode; Rectifier • Transistor (NPN Type) • Transistor (PNP Type) • Ignition Check • Bulb; relay coil; fuse; speaker • Fault finding • Locating broken wire • Static radiation pick up (TV or monitor) Voltage Tester Model SC-1 ORDERING INFORMATION CATALOG NO. Voltage Tester Model SC-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat. #2121.01 Voltage Tester Model SC-1 SPECIFICATIONS MODEL SC-1 AC Voltage Test Contact method from 70 to 250VAC Non-Contact method from 70 to 600VAC Frequency Range 50 to 500Hz DC Voltage Test Up to 250VDC Polarity Check 1.5V to 36VDC Continuity Check 0 to 50MÙ Power Source (1.5V x 2 Alkaline or silver type) Model SC-1 (pdf) Rev. 02 07/05 Technical Assistance (800) 343-1391 www.aemc.com 1 of 2

Open the catalog to page 1

Model SC-1 (pdf) Rev. 02 07/05 Technical Assistance (800) 343-1391 www.aemc.com 2 of 2 Contact Us United States & Canada: Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments 200 Foxborough Blvd. Foxborough, MA 02035 USA (508) 698-2115 • Fax (508) 698-2118 www.aemc.com Customer Support – for placing an order, obtaining price & delivery: [email protected] Sales Department – for general sales information: [email protected] Repair and Calibration Service – for information on repair & calibration, obtaining a user manual: [email protected] Technical and Product Application Support – for technical and...

Open the catalog to page 2
