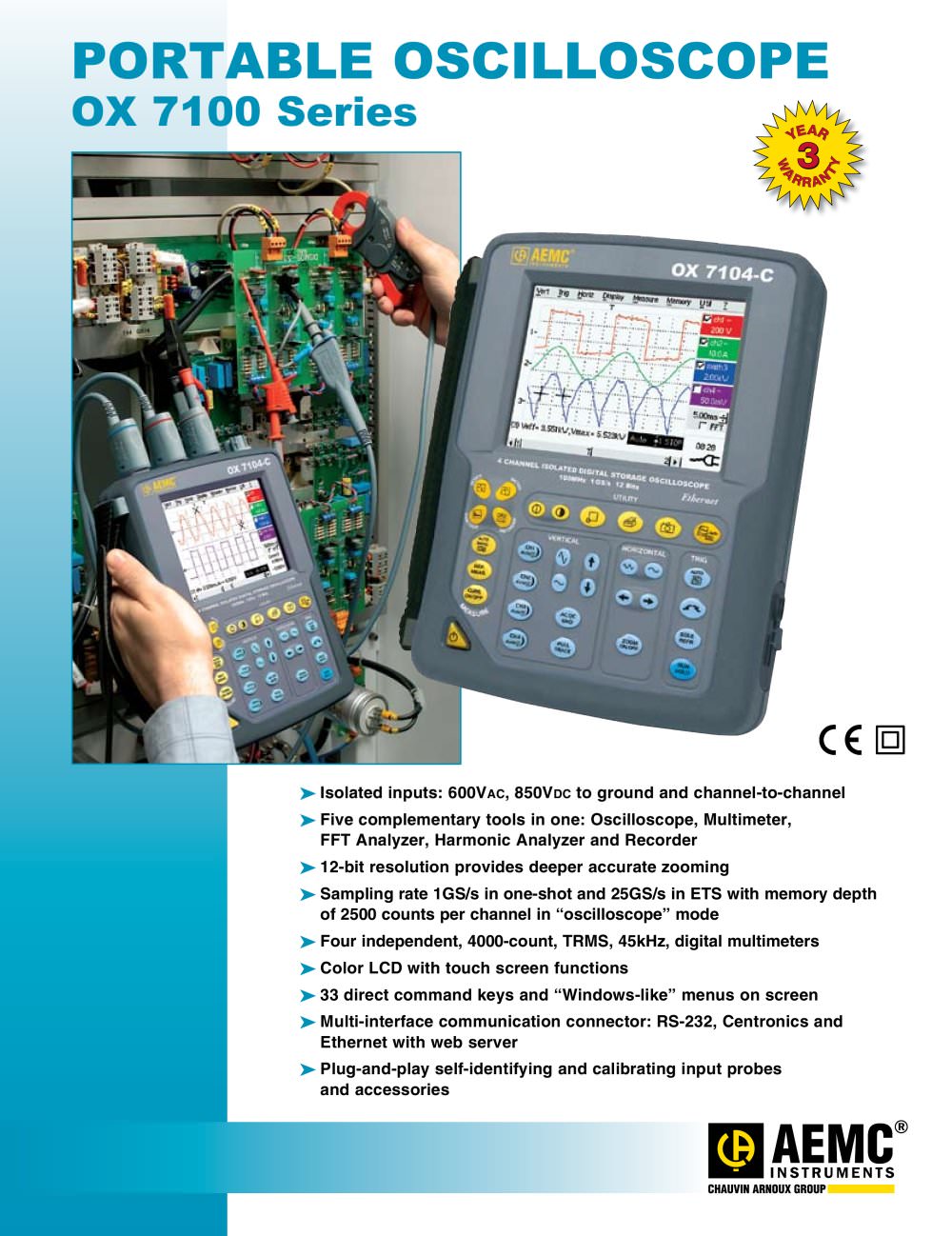

PORTABLE Oscilloscope OX 7100 Series 3 WARRANTY YEAR „· Isolated inputs: 600Vac, 850Vdc to ground and channel-to-channel „· Five complementary tools in one: Oscilloscope, Multimeter, FFT Analyzer, Harmonic Analyzer and Recorder „· 12-bit resolution provides deeper accurate zooming „· Sampling rate 1GS/s in one-shot and 25GS/s in ETS with memory depth of 2500 counts per channel in “oscilloscope” mode „· Four independent, 4000-count, TRMS, 45kHz, digital multimeters „· Color LCD with touch screen functions „· 33 direct command keys and “Windows-like” menus on screen „· Multi-interface communication connector: RS-232, Centronics and Ethernet with web server „· Plug-and-play self-identifying and calibrating input probes and accessories

Field testing is quick and easy thanks to the Model OX 7104-C’s hand strap and the use of Probix Smart Probes, some that have control buttons, with user definable functions, right on the probes themselves. Windows-like menus can be pulled down and executed with the convenient stylus. Features „· Isolated inputs; 600Vac, 850Vdc to ground and channel- to-channel „· Five complementary tools in one: Oscilloscope, Multimeter, FFT Analyzer, Harmonic Analyzer and Recorder „· Sampling rate 1GS/s in one-shot mode and 25GS/s in ETS — memory depth of 2.5k per channel in “ oscilloscope” mode „· Four isolated...

CONSTRUCTION Isolated inputs for each channel 1/4 VGA (320 x 240) Color LCD Utility program buttons Shockproof dirt resistant overmold Trigger mode selection Hand strap ON/OFF button Direct access keys to four instrument modes Isolated inputs for each channel rated 600V Cat. III Horizontal and vertical trace adjustments Charging port Test signal terminals Communications port Technical Assistance (800) 343-1391 www.aemc.com 3

OSCILOSCOPE Complete automatic measurements for precise analysis The automatic measurements window displays up to 18 parameters for any signal. For a clear analysis, two markers identify the portion of the signal where the first automatic measurement was made. A specific measurement zone can then be selected by outlining it with manual cursors, for a reliable and more precise result. A direct comparison of two waveforms is performed by checking “variation from reference memory”, in order to display up to 18 parameters of the signal as differences from the reference. If mathematical functions,...

Math functions In oscilloscope mode, the math functions (1, 2, 3 and 4) can be used on each trace to define a mathematical function and vertical scaling in actual physical unit(s). The real-time on-screen display capability of the mathematical editor presents four calculated trace results, on which all cursor-selected and automatic measurements are available. It is therefore possible to examine waveforms as power, for example (V x I), and make all associated measurements. Many math functions are available, for example +, -, x, /, as well as sine, cosine, exponent, logarithm, square root, etc.,...

MULTIMETER TRMS Digital Multimeter Pressing the meter key gives access to the multimeter function. The Model OX 7104 includes a four-channel TRMS digital multimeter where the Model OX 7102 includes a two-channel digital multimeter — the basic instruments for all diagnostics — measures amplitude (AC and DC voltage and current, power, thermocouples, etc.), resistance, continuity, capacitance and to test components. The PT 100 configuration can be used to measure a temperature based on 100W resistive RTD. All sensors used can be scaled to their true physical unit for optimum application efficiency....

ANALYZER Harmonic Analyzer (optional) Harmonic analysis is a basic function for all users in the fields of power distribution, electrical engineering and power electronics. With the optional Harmonic Analysis firmware installed, the Model OX 7104-C can display harmonics up to the 31st for signals having fundamental frequencies between 40 and 450Hz. Harmonic analysis can be displayed on all channels simultaneously, in real-time. Harmonic analysis results are displayed in bargraph form. The status zone indicates: • the total RMS voltage of the signal in V, the total harmonic distortion in % • for...

The FULL SCREEN feature provides full screen display of waveforms, without other information or menus, at the push of a button. The FULL TRACE feature activates horizontal splitting of the display screen, allowing you to view waveforms from independent channels separately. Full Screen Display Function Full Trace Display Function Zoom Function Instrument menus for all functions plus on-line help Display Trace parameters, Math Function parameters or Memory, in the color of the trace Context sensitive display area showing current adjustments Value of time based coefficient (s/div) in Oscilloscope...

Specifications Model OX 7102-C OX 7104-C INTERFACE Screen Specifications Color 5.7” LCD (115 x 86mm) 320 x 240 — CCFL backlighting Display Mode Vectors with interpolation — 500 samples on screen No. of Traces on Screen Four traces and four references — Split screen and full screen modes (tracing zone 110 x 74) Front Panel Control 32 direct shortcuts Screen Control Touch screen — “Windows-like” menus and graphic commands Languages Five complete languages, menus and on-line help (English, French, German, Spanish, Italian) VERTICAL Bandwidth 100MHz Channels Two isolated channels Four isolated channels...

SOFTWARE The Ethernet interface and its web server offer new ways of working and communicating, local or remote, with a convenience and effectiveness that will quickly make them necessities. All that is needed for communication is that the other equipment (printer, PC, etc.) has an IP address. Thus, even on the road, you can print results on a network printer, exchange files between the OX 7100 series oscilloscopes and a computer. You can also monitor the instrument remotely from any PC, display the traces in real-time and control it using the instrument panel. Whether locally or at a distance,...
