Product catalog summary

Overview

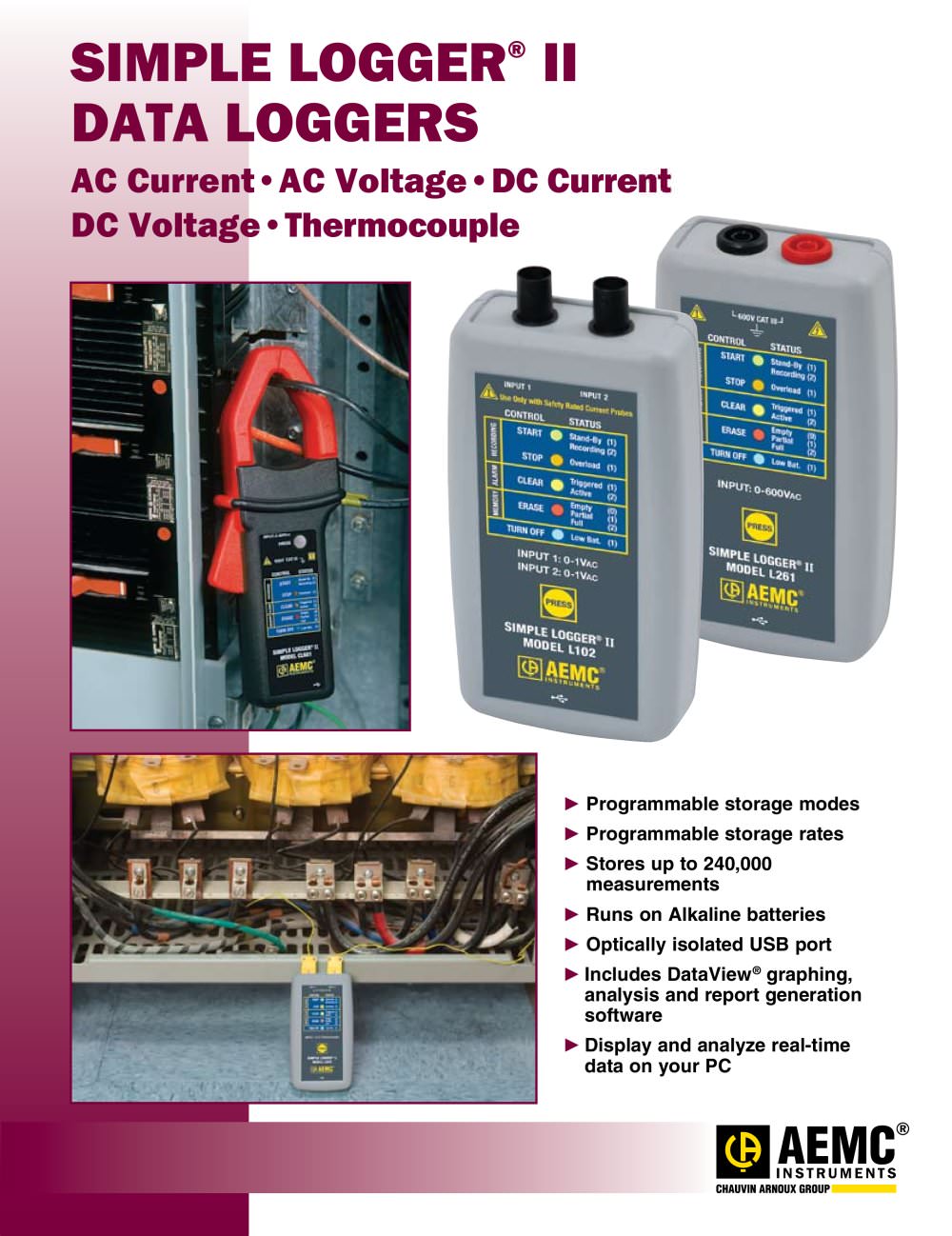

The Simple Logger® II series is a line of cost-effective data loggers designed for electrical measurements such as AC/DC current, voltage, and temperature. These compact, battery-operated devices offer extensive data storage capabilities, making them suitable for various applications.

Specifications

Programmable storage modes and rates.
Capacity to store up to 240,000 measurements.
Operates on alkaline batteries with a life ranging from 100 hours to over 45 days.
Features an optically isolated USB port for data transfer.
Includes DataView® software for data analysis and report generation.
True RMS measurements for accurate signal representation.

Features

Real-time data display and analysis on a PC.
Alarm programming tools for setting trigger points.
Compact size for easy installation in tight spaces.
Available in nine models for different measurement needs.

Applications

Fault and intermittent current detection.
Neutral and harmonic current monitoring.
Load profiling for transformer and meter selection.
Machine load monitoring to prevent equipment failure.
HVAC and temperature profiling.

Software Features

Real-time data recording and display.
Configuration of logger functions and parameters.
Custom view and report creation.
Free software upgrades.

Model Specifications

Model CL601: Measures AC current up to 600A with true RMS AC measurements and an alarm function with LED indicators.
Model L101: Compatible with AC current probes with voltage output, lightweight and compact.
Model L102: Two independent channels, compatible with AC current probes with voltage output.
Model L111: Compatible with AC current probes with current output, includes a fused input for safety.
Model L261: TRMS voltage recording up to 600VAC/DC, suitable for surge and sag recording.

Recording Modes

Start/Stop: Records data at a set rate until memory is full or a specified end time is reached.
FIFO (First In First Out): Continuously records by overwriting the oldest data once memory is full.
Extended Recording Mode (XRM™): Allows for continuous recording by reducing the storage rate once memory is full.

Accessories
Various current probes are available for different measurement ranges and applications, enhancing the versatility of the Simple Logger® II series.

Training and Support
AEMC® offers training seminars on ground resistance testing, insulation resistance testing, and power quality, providing additional support and education for users.

Contact Information
Chauvin Arnoux®, Inc. d.b.a AEMC® Instruments, 200 Foxborough Blvd., Foxborough, MA 02035 USA. Phone: (800) 343-1391, (508) 698-2115. Fax: (508) 698-2118. Email: [email protected]

Product Offerings
AEMC® offers a range of test and measurement instruments including Megohmmeters, Power Quality Analyzers, Ground Resistance Testers, and more.

AEMC® Website and Storefront
The AEMC® website provides technical product information, software updates, user manuals, and more. The online store offers replacement parts, refurbished items, and product specials.

Technical Sales and Assistance
For technical problems or assistance, email the technical hotline at [email protected].
