AEMC Instruments

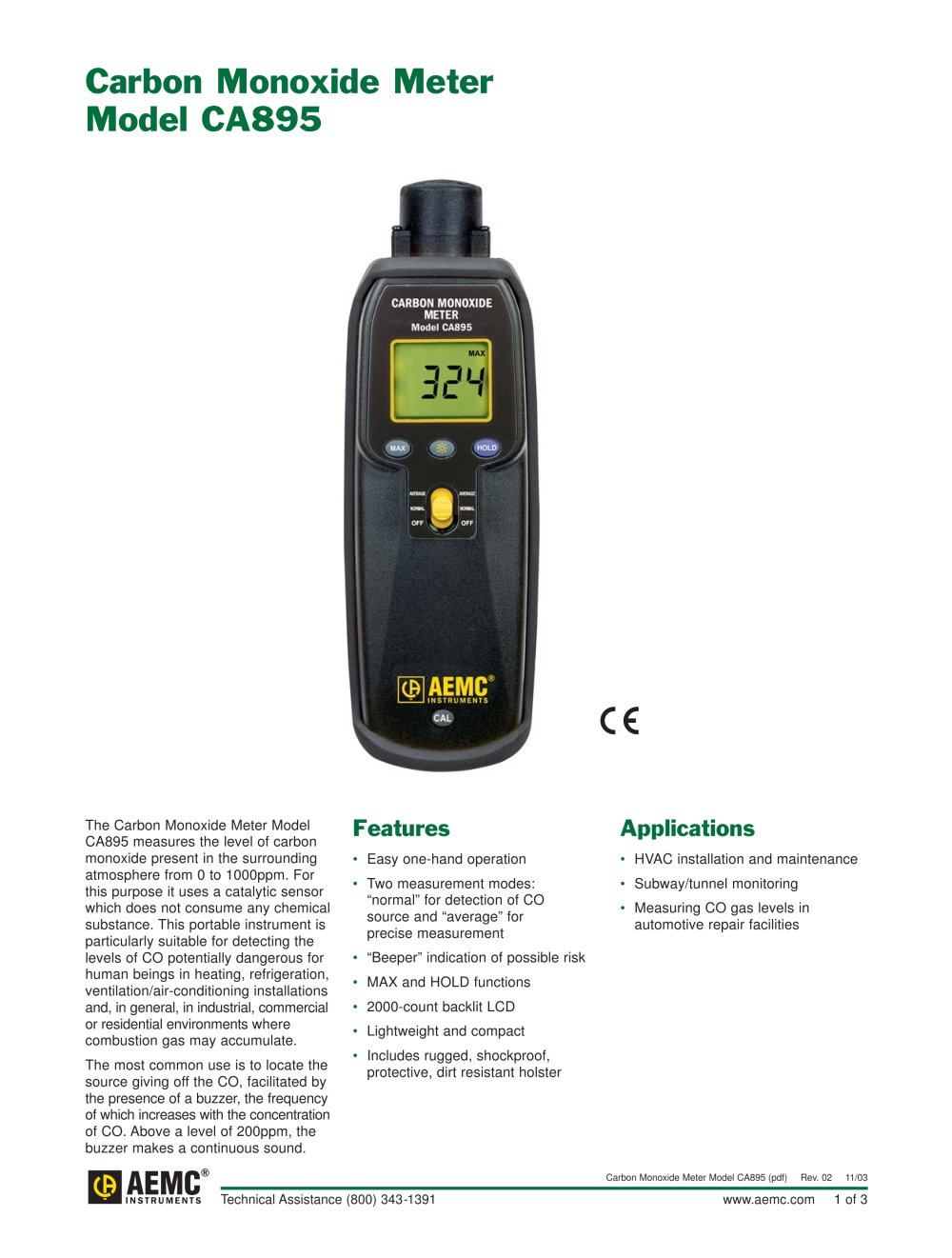

CA895 Carbon Monoxide Meters

CA895 Carbon Monoxide Meters

Product catalog summary

Overview: The Carbon Monoxide Meter Model CA895 is designed to measure carbon monoxide (CO) levels in the atmosphere ranging from 0 to 1000ppm. It utilizes a catalytic sensor that does not consume chemical substances, making it suitable for environments where combustion gases may accumulate, such as HVAC installations, subways, tunnels, and automotive repair facilities.

Features:

Easy one-hand operation with two measurement modes: 'normal' for CO source detection and 'average' for precise measurement.
Audible 'beeper' indication for potential risk, with a continuous sound above 200ppm.
MAX and HOLD functions for measurement convenience.
2000-count backlit LCD for clear display.
Lightweight, compact design with a rugged, shockproof, and dirt-resistant holster.

Specifications:

Measurement Range: 0 to 1000ppm with a display resolution of 1ppm.
Accuracy: ±5% of reading ± 5ppm.
Response Time: Less than 70 seconds to 90% of the measurement.
Operating Temperature: 32° to 122°F (0° to 50°C), 15 to 90% RH without condensation.
Storage Temperature: -4° to 140°F (-20° to 60°C), 0 to 80% RH without battery.
Power Source: 9V battery with low battery indication.
Dimensions: 9.33 x 2.38 x 1.5 inches (237 x 60.5 x 38mm).
Weight: Approximately 6.2 oz (190g) including battery.

Construction: The device includes a CO sensor, low battery indicator, MAX button, backlight, 3-way selector switch (OFF/NORMAL/AVERAGE), 3½ digit display, HOLD button, and a protective cap for the calibration screw.

Ordering Information: The Carbon Monoxide Meter Model CA895 (Cat. #2121.35) comes with a 9V Alkaline battery, protective holster, and user manual. A calibration screwdriver is included.

Contact Information: For technical assistance, sales, repair, and calibration services, contact AEMC Instruments in the USA or Chauvin Arnoux SCA in France. Detailed contact information is provided for various regions.

Catalog excerpts

United States & Canada: Chauvin Arnoux > , Inc.d.b.a. AEMC Customer Support - for placing an order, obtaining price & delivery: > ή Instruments200 Foxborough Blvd. Foxborough, MA02035 USA (508) 698-2115 ? Fax (508) 698-2118 www.aemc.com [email protected] Sales Department for general sales information: [email protected] Repair and Calibration Service - for information on repair & calibration, obtaining a user manual: [email protected] Technical and Product Application Support ֖for technical and application support: [email protected] Webmaster - for information regarding www.aemc.com: [email protected]...

Open the catalog to page 3
