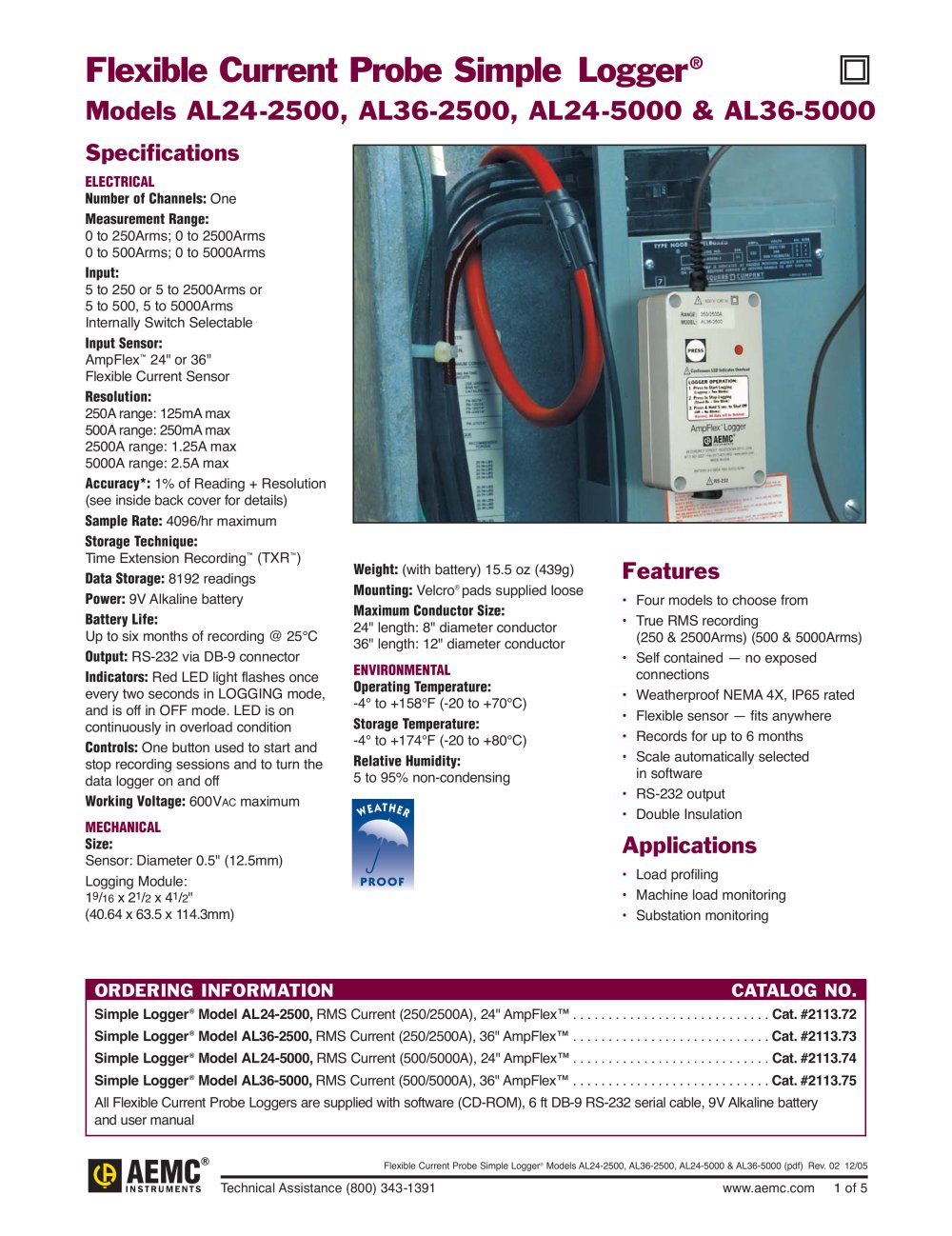

AL24-2500 Flexible Current Probe Loggers
1 / 5Pages

ELECTRICALNumber of Channels: One Measurement Range: 0 to 250Arms; 0 to 2500Arms 0 to 500Arms; 0 to 5000Arms Input: Input Sensor: 5 to 250 or 5 to 2500Arms or 5 to 500, 5 to 5000Arms Internally Switch Selectable AmpFlex > Ι 24" or 36"Flexible Current Sensor Accuracy*: 1% of Reading + Resolution(see inside back cover for details) Resolution: 250Arange: 125mAmax 500Arange: 250mAmax 2500Arange: 1.25Amax 5000Arange: 2.5Amax Sample Rate: 4096/hr maximum Storage Technique: Time Extension Recording > (TXR > ٙ ) Data Storage: 8192 readings Weight: (with battery) 15.5 oz (439g) Power: 9V Alkaline battery Mounting: Velcro > pads supplied loose > Battery Life: Maximum Conductor Size: Ε Four models to choose from Up tosix months of recording @ 25C 24" length: 8" diameter conductor 36" length: 12" diameter conductor Е True RMS recording (250 & 2500Arms) (500 & 5000Arms) ENVIRONMENTAL Operating Temperature: -4to +158аF (-20 to +70C) Output: RS-232 via DB-9 connector Storage Temperature: Е Self contained no exposedconnections Indicators: Controls: One button used to start andstop recording sessions and to turn the data logger on and off Red LED light flashes onceevery two seconds in LOGGING mode, and is off in OFF mode. LED is on continuously in overload condition -4װto +174F (-20 to +80аC) Working Voltage: 600V Relative Humidity: Weatherproof NEMA4X, IP65 rated 5 to 95% non-condensing Օ Flexible sensor fits anywhere ו Records for up to 6 months Scale automatically selectedin software > AC maximum Օ RS-232 output Double Insulation MECHANICALSize: Sensor: Diameter 0.5" (12.5mm)Logging Module:1 > Օ Load profiling > 9 / > 16 x 2 > 1 / > 2 x 4 > 1 / > 2 "(40.64 x 63.5 x 114.3mm) Machine load monitoring Օ Substation monitoring > Simple Logger > Model AL24-2500, RMS Current (250/2500A), 24" AmpFlexΙ. . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat.#2113.72Simple Logger > Model AL36-2500, RMS Current (250/2500A), 36" AmpFlexΙ. . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat.#2113.73Simple Logger > Model AL24-5000, RMS Current (500/5000A), 24" AmpFlexΙ. . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat.#2113.74Simple Logger > Model AL36-5000, RMS Current (500/5000A), 36" AmpFlexΙ. . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat.#2113.75 All Flexible Current Probe Loggers are supplied with software (CD-ROM), 6 ft DB-9 RS-232 serial cable, 9V Alkaline battery and user manual > Flexible Current Probe Simple Logger Models AL24-2500, AL36-2500, AL24-5000 & AL36-5000 (pdf)Rev. 0212/05 Technical Assistance (800) 343-1391www.aemc.com 1 of 5 size="-1">

Ε Very easy to setup and use no programming required ו Print both graphs andtabular listings 486 or higher Օ 8MB of RAM Statistics appear onscreen: Max, Min, Avg,Date and Time Օ Paste graphs into otherapplications Windows > ծ 95/98/2000/ME/XPor Windows > NT Ε Programmable scale and units for all DC loggers. Automatic selection for AC loggers On-Line display of datalogger values Օ One serial port not in use by any other device Zoom capability with automaticstatistics update Օ User programmable High and Low limits (Model L215) 8MB hard drive space for program and 400kB max per file stored Օ...

On-line display of data Plot area with value and time datashown on the X and Y axis Click the Annotate button to add a title and descriptiveinformation to your graph.This information can be storedand printed with a graph. GraphStatistics Annotatebutton Automatic update ofY data at cursor position > Flexible Current Probe Simple Logger Models AL24-2500, AL36-2500, AL24-5000 & AL36-5000 (pdf)Rev. 0212/05

Click the scale button in the file menu tocreate custom scales and engineering unitsfor DC voltage (Models L410 & L430)and DC current loggers (Model L320). Click and drag your mouse to zoom up the desired area of thegraph for better viewing.The Min,Max and Average statisticsat the bottom of the graph update automatically when thegraph is zoomed. Flexible Current Probe Simple Logger ή Models AL24-2500, AL36-2500, AL24-5000 & AL36-5000 (pdf)Rev. 0212/05 Technical Assistance (800) 343-1391www.aemc.com 4 of 5 >
