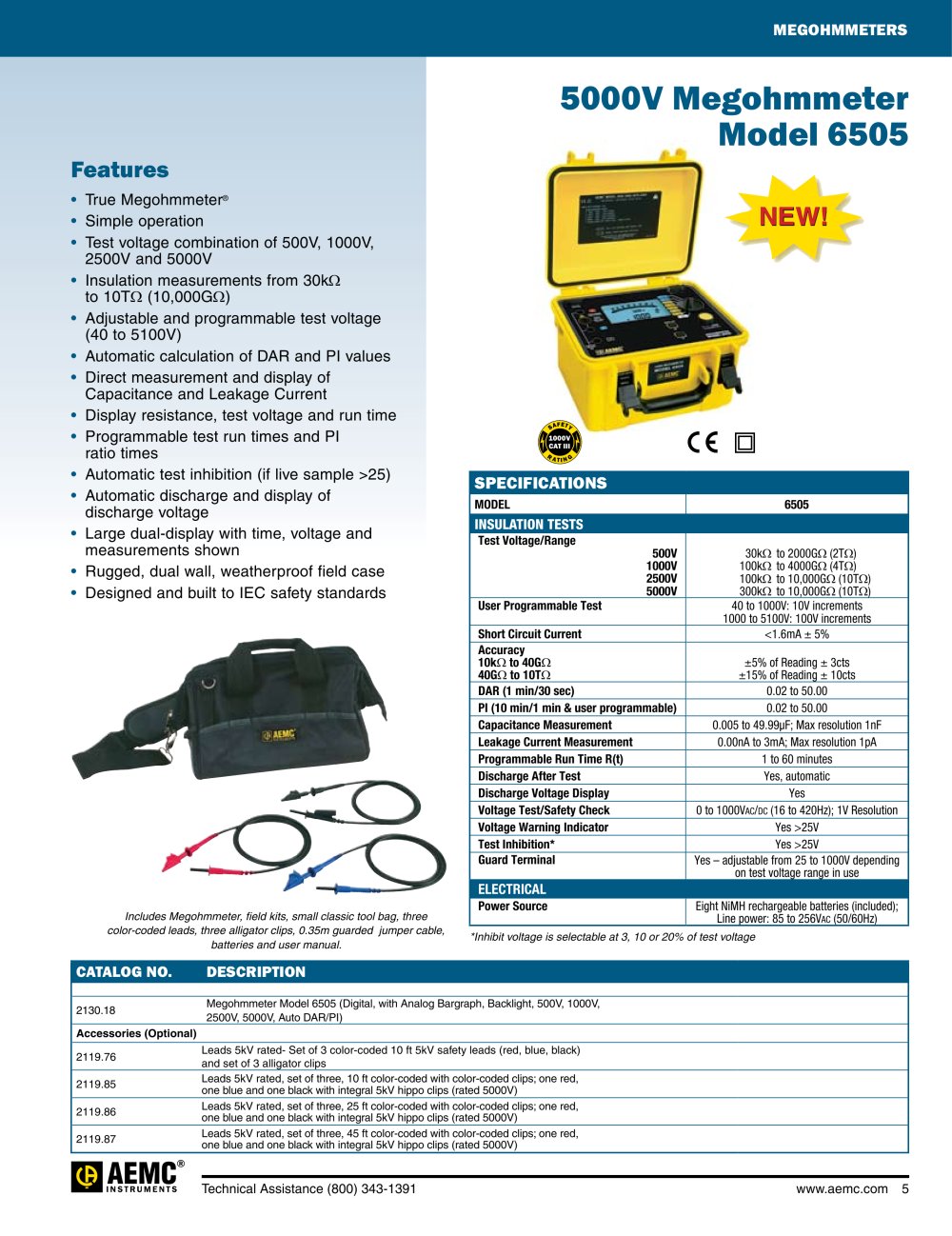

Technical Assistance (800) 343-1391 www.aemc.com 5 Features • True Megohmmeter® • Simple operation • Test voltage combination of 500V, 1000V, 2500V and 5000V • Insulation measurements from 30kÙ to 10TÙ (10,000GÙ) • Adjustable and programmable test voltage (40 to 5100V) • Automatic calculation of DAR and PI values • Direct measurement and display of Capacitance and Leakage Current • Display resistance, test voltage and run time • Programmable test run times and PI ratio times • Automatic test inhibition (if live sample >25) • Automatic discharge and display of discharge voltage • Large dual-display with time, voltage and measurements shown • Rugged, dual wall, weatherproof field case • Designed and built to IEC safety standards Megohmeters 5000V Megohmmeter Model 6505 Includes Megohmmeter, field kits, small classic tool bag, three color-coded leads, three alligator clips, 0.35m guarded jumper cable, batteries and user manual. Catalog No. Description 2130.18 Megohmmeter Model 6505 (Digital, with Analog Bargraph, Backlight, 500V, 1000V, 2500V, 5000V, Auto DAR/PI) Accessories (Optional) 2119.76 Leads 5kV rated- Set of 3 color-coded 10 ft 5kV safety leads (red, blue, black) and set of 3 alligator clips 2119.85 Leads 5kV rated, set of three, 10 ft color-coded with color-coded clips; one red, one blue and one black with integral 5kV hippo clips (rated 5000V) 2119.86 Leads 5kV rated, set of three, 25 ft color-coded with color-coded clips; one red, one blue and one black with integral 5kV hippo clips (rated 5000V) 2119.87 Leads 5kV rated, set of three, 45 ft color-coded with color-coded clips; one red, one blue and one black with integral 5kV hippo clips (rated 5000V) NEW! Specifications MODEL 6505 Insulation Tests Test Voltage/Range 500V 1000V 2500V 5000V 30kÙ to 2000GÙ (2TÙ) 100kÙ to 4000GÙ (4TÙ) 100kÙ to 10,000GÙ (10TÙ) 300kÙ to 10,000GÙ (10TÙ) User Programmable Test 40 to 1000V: 10V increments 1000 to 5100V: 100V increments Short Circuit Current <1.6mA ± 5% Accuracy 10kÙ to 40GÙ 40GÙ to 10TÙ ±5% of Reading ± 3cts ±15% of Reading ± 10cts DAR (1 min/30 sec) 0.02 to 50.00 PI (10 min/1 min & user programmable) 0.02 to 50.00 Capacitance Measurement 0.005 to 49.99ìF; Max resolution 1nF Leakage Current Measurement 0.00nA to 3mA; Max resolution 1pA Programmable Run Time R(t) 1 to 60 minutes Discharge After Test Yes, automatic Discharge Voltage Display Yes Voltage Test/Safety Check 0 to 1000Vac/dc (16 to 420Hz); 1V Resolution Voltage Warning Indicator Yes >25V Test Inhibition* Yes >25V Guard Terminal Yes – adjustable from 25 to 1000V depending on test voltage range in use ELECTRICAL Power Source Eight NiMH rechargeable batteries (included); Line power: 85 to 256Vac (50/60Hz) *Inhibit voltage is selectable at 3, 10 or 20% of test voltage 1000V CAT III RATING SAFETY
