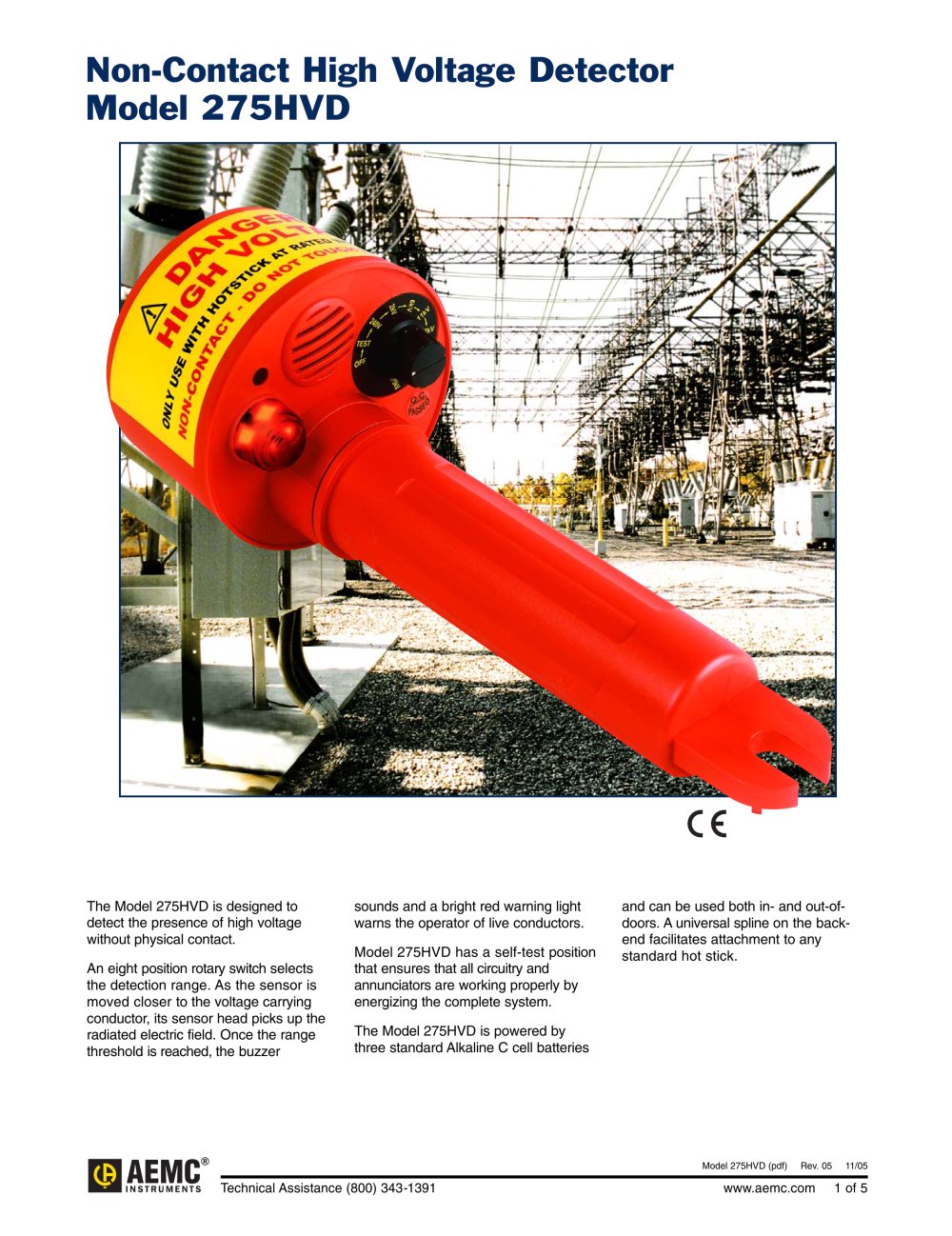

Model 275HVD (pdf) Rev. 05 11/05 Technical Assistance (800) 343-1391 www.aemc.com 1 of 5 The Model 275HVD is designed to detect the presence of high voltage without physical contact. An eight position rotary switch selects the detection range. As the sensor is moved closer to the voltage carrying conductor, its sensor head picks up the radiated electric field. Once the range threshold is reached, the buzzer sounds and a bright red warning light warns the operator of live conductors. Model 275HVD has a self-test position that ensures that all circuitry and annunciators are working properly by energizing the complete system. The Model 275HVD is powered by three standard Alkaline C cell batteries and can be used both in- and out-ofdoors. A universal spline on the backend facilitates attachment to any standard hot stick. Non-Contact High Voltage Detector Model 275HVD
Open the catalog to page 1
Model 275HVD (pdf) Rev. 05 11/05 Technical Assistance (800) 343-1391 www.aemc.com 2 of 5 Features • Non-contact high voltage detector • Wide range of detection; finds 80V to 275kV; one instrument fits all applications • Eight switch-selectable voltage sensitivity ranges • Lightweight, minimizes sway at the end of long hot sticks • Audible and visual indication of live voltage • Self-test ensures that all system functions and indicators are working properly by energizing the complete system • Designed for use with hot sticks incorporating a universal spline adapter Applications • Non-contact...
Open the catalog to page 2
Model 275HVD (pdf) Rev. 05 11/05 Technical Assistance (800) 343-1391 www.aemc.com 3 of 5 MODEL 275HVD ELECTRICAL Detection Frequency 40 to 70Hz Ranges 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV Detection Selection range is detected at approximately 10" (25cm) from the voltage Greater detection distances can be obtained at lower voltage positions MECHANICAL Self Test User selectable Indicators Bright red LED and audible buzzer Power Source Three 1.5V C cell batteries ENVIRONMENTAL Operating Temperature 5° to 130°F (-15° to 55°C) Storage Temperature -4° to 150°F (-20° to 65°C) Humidity 0...
Open the catalog to page 3
ORDERING INFORMATION CATALOG NO. Non-Contact High Voltage Detector Model 275HVD (240V to 275kV) Manual self-test. . . . . . . . . . . . . . . . . . . . . . . . . Cat. #2131.12 CIncludes three C cell batteries, padded carrying case and user manual Construction Rotary selector with the following settings: Buzzer — high audible level • OFF • TEST • 240V • 2kV • 6kV • 11kV • 22kV • 33kV • 132kV • 275kV Battery holder/handle Universal spline for hot stick connection Large bright red warning light (two LEDs) Universal spline for hot stick connection Model 275HVD includes three C cell batteries, a...
Open the catalog to page 4
Models 275HVD (pdf) Rev. 05 11/05 Technical Assistance (800) 343-1391 www.aemc.com 5 of 5 Contact Us United States & Canada: Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments 200 Foxborough Blvd. Foxborough, MA 02035 USA (508) 698-2115 • Fax (508) 698-2118 www.aemc.com Customer Support – for placing an order, obtaining price & delivery: customerservice@aemc.com Sales Department – for general sales information: sales@aemc.com Repair and Calibration Service – for information on repair & calibration, obtaining a user manual: repair@aemc.com Technical and Product Application Support – for...
