VERTICAL LAMINAR FLOW STATION ISO 4 - ISO 5

Product catalog summary

Overview: The Vertical Laminar Flow Station ISO 4 - ISO 5 is designed to provide optimal product protection by creating a sterile laminar airflow from the top to the work surface. This ensures a sterile environment over the end product.

Structure: The station is constructed from laminated plywood or stainless steel, making it compatible with clean room environments.

Filtration: The system includes a V-type absolute HEPA filter with 99.999% efficiency for particles as small as 0.3µm. It features a rigid aluminum frame, fiberglass filter media, and epoxy steel protection grids. A synthetic prefilter with 90% gravimetric efficiency is also included.

Air Flow System: Utilizes ECM fans for continuous electrical current flow, achieving up to 80% efficiency and low noise levels, while consuming 30-40% less electricity than standard fans.

Applications: Suitable for electronics, optics, food industry, biotechnology, and medical research.

Features: The station is compact, monoblock, aesthetic, sturdy, automatic, and includes an electrical window.

Lighting: Equipped with white fluorescent tubes installed outside the working enclosure.

Mains Supply: Operates on 220V – 50 kHz single phase with a power consumption of 900 W.

Control Panel: Includes a start/stop button, stand-by mode, UV activation control, front shutter control, clogging alarm, and light button.

Air Circuits:

Open Circuit - V: Air enters through the prefilter, passes through the absolute filter, and ensures ISO 5 (class 100) conditions. Airflow is rejected at the front of the cabinet.
Recycling Circuit – V1: 30% fresh air enters through the prefilter, with 70% recycled through a back grid or perforated work area. 30% is rejected at the front.
Exhaust Circuit – V2: Fresh air enters through the prefilter, with part of the airflow recycled through a back grid or perforated work area using a second fan. 30% is rejected at the front.

Catalog excerpts

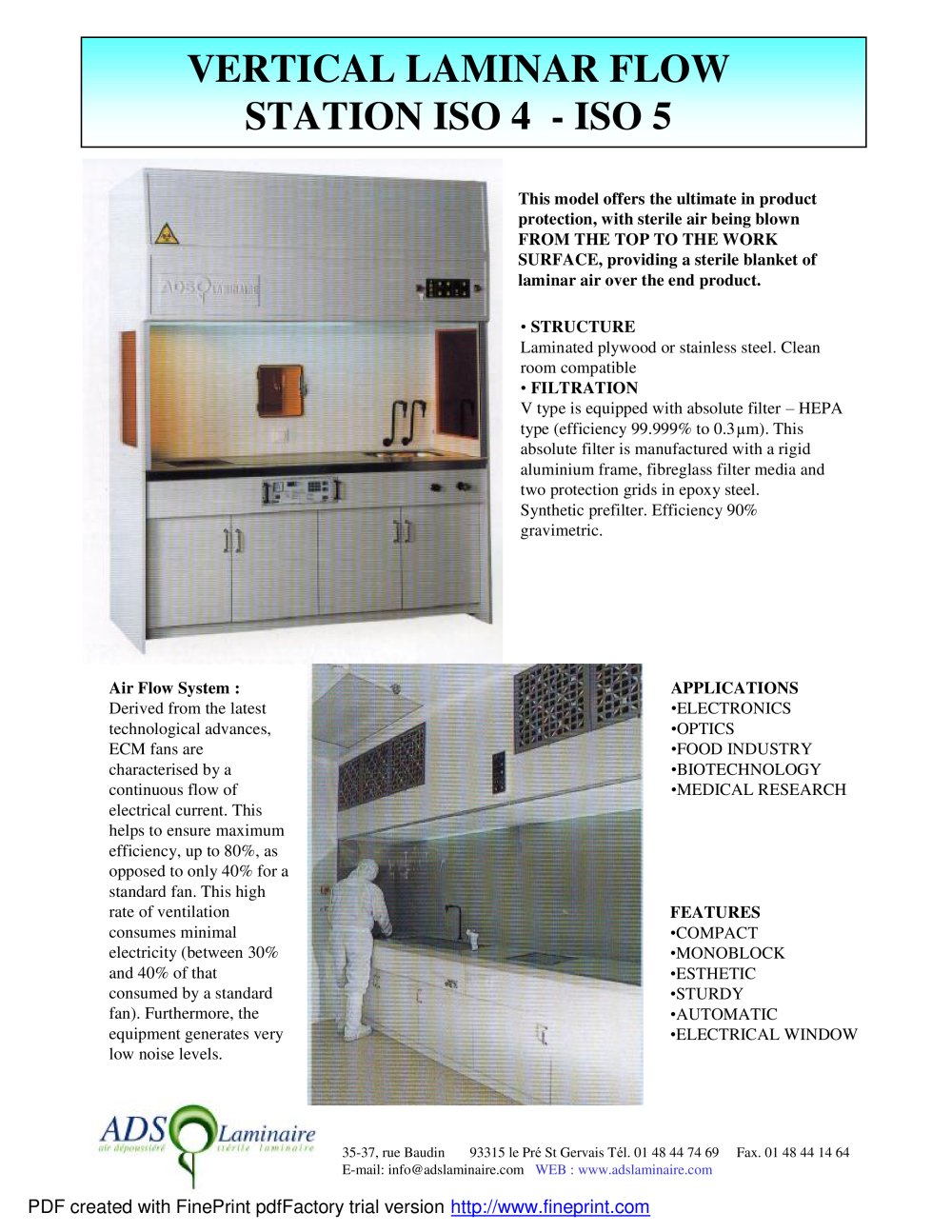

VERTICAL LAMINAR FLOW STATION ISO 4 - ISO 5-1

Air Flow System : Derived from the latest technological advances, ECM fans are characterised by a continuous flow of electrical current. This helps to ensure maximum efficiency, up to 80%, as opposed to only 40% for a standard fan. This high rate of ventilation consumes minimal electricity (between 30% and 40% of that consumed by a standard fan). Furthermore, the equipment generates very low noise levels. This model offers the ultimate in product protection, with sterile air being blown FROM THE TOP TO THE WORK SURFACE, providing a sterile blanket of laminar air over the end product. STRUCTURE Laminated plywood or stainless steel. Clean room compatible Օ FILTRATION V type is equipped with absolute filter - HEPA type (efficiency 99.999% to 0.3 nm). This absolute filter is manufactured with a rigid aluminium frame, fibreglass filter media and two protection grids in epoxy steel. Synthetic prefilter. Efficiency 90% gravimetric. APPLICATIONS ELECTRONICS ՕOPTICS FOOD INDUSTRY ՕBIOTECHNOLOGY MEDICAL RESEARCH FEATURES ՕCOMPACT MONOBLOCK ՕESTHETIC STURDY ՕAUTOMATIC ELECTRICAL WINDOW 35-37, rue Baudin 93315 le Prթ St Gervais Tl. 01 48 44 74 69 Fax. 01 48 44 14 64 E-mail: [email protected] WEB : www.adslaminaire.com PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

Open the catalog to page 1

VERTICAL LAMINAR FLOW STATION ISO 4 - ISO 5-2

OPEN CIRCUIT - V Lighting : White fluorescent tubes are installed outside the working enclosure. Mains supply : 220V - 50 kHz single phase Power = 900 W Control Panel with : - Start/Stop button - Stand-by mode - UV activation control - Front shutter (open/close) - 1 Alarms (clogging) - Light button The air comes into the cabinet through the prefilter. It is blown into the absolute filter. The laminar airflow ensure ISO 5 (class 100) in the all working. The airflow is rejected in the front of the cabinet. c RECYCLING CIRCUIT - V1 The fresh air (30%) comes into the cabinet through the prefilter....

Open the catalog to page 2
