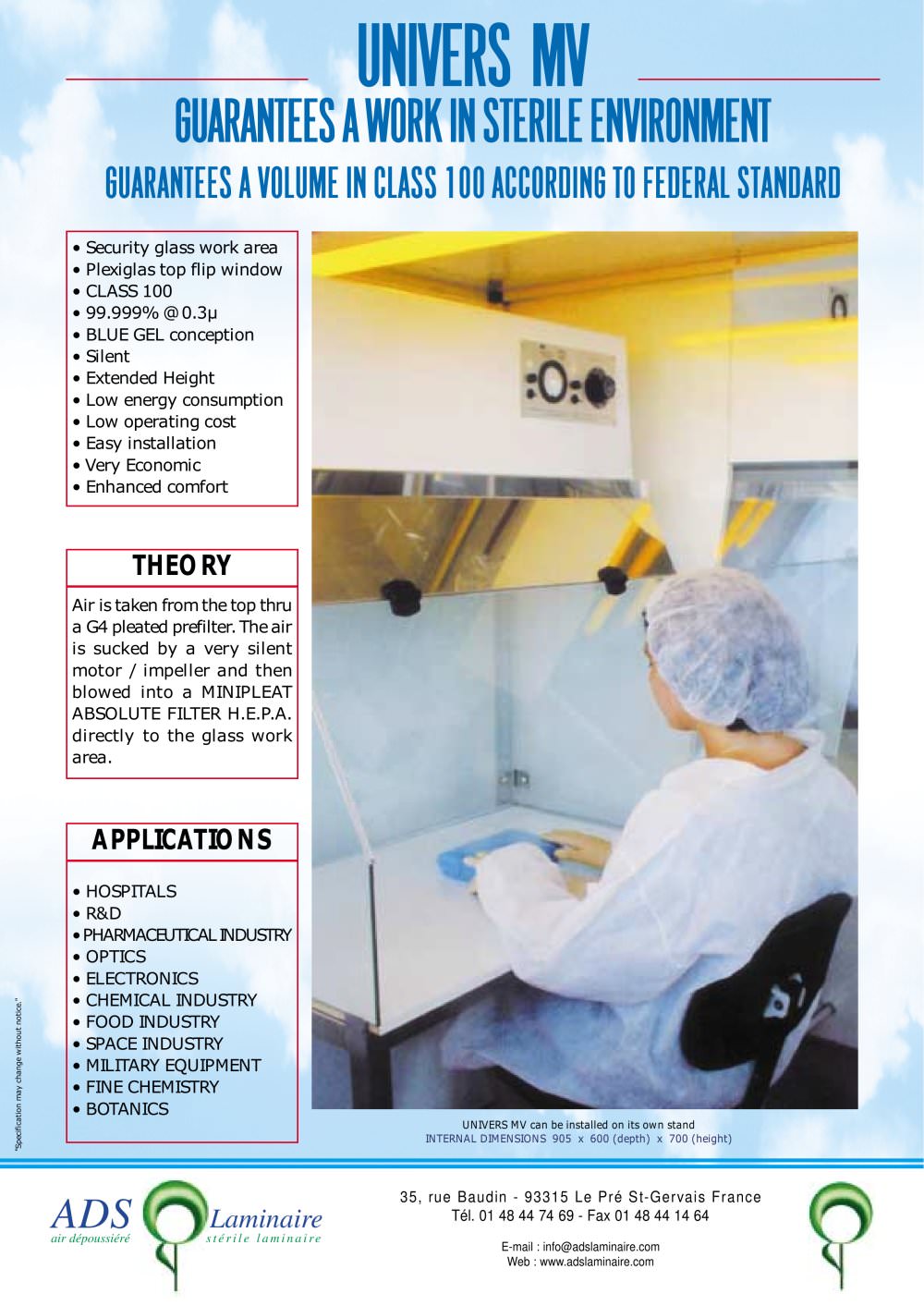

BUARANTEES A WORK IN STERILE ENVIRONMENT GUARANTEES A VOLUME IN CLASS 100 ACCORDINB TO FEDERAL STANDARD Security glass work area Plexiglas top flip window CLASS 100 99.999% @ 0.3p BLUE GEL conception Silent Extended Height Low energy consumption Low operating cost Easy installation Very Economic Enhanced comfort THEORY Air is taken from the top thru a G4 pleated prefilter. The air is sucked by a very silent motor / impeller and then blowed into a MINIPLEAT ABSOLUTE FILTER H.E.P.A. directly to the glass work area. ■ APPLICATIONS o 5 HOSPITALS Օ R&D PHARMACEUTICAL INDUSTRY Օ OPTICS ELECTRONICS Օ CHEMICAL INDUSTRY FOOD INDUSTRY Օ SPACE INDUSTRY MILITARY EQUIPMENT Օ FINE CHEMISTRY BOTANICS UNIVERS MV can be installed on its own stand INTERNAL DIMENSIONS 905 x 600 (depth) x 700 (height) 35, rue Baudin - 93315 Le Prթ St-Gervais France Tl. 01 48 44 74 69 - Fax 01 48 44 14 64 E-mail : [email protected] Web : www.adslaminaire.com ADS n air dpoussi驩r _ ? Laminaire strile laminaire

■CONTROL PANEL on/off FAN Օ on/off LIGHTING Fan speed controller Օ FAN fuse LIGHTING fuse Օ MANOMETER ■LIGHTING Fluorescent lighting provides 400-600 lux average on the work surface ■SPEED VARIATOR The speed variation keeps the air flow when filter is getting clogged. ■ABSOLUTE FILTER(MINIPLEAT) EFFICIENCY PROTECTION GRID FRAME SEALANT THIGHTNESS 99.999% @ 0.3u EPOXY PAINTED ANODIZED ALUMINUM POLYURETHANE BLUE GEL BLUE GEL THIGHTNESS The tightness between the filter and the fan unit is ensured by a fluid gasket, well known in the industry. This GEL is usually called blue gel because of its...
