- AD HORIZONTAL DUCTLESS FUME HOOD
AD HORIZONTAL DUCTLESS FUME HOOD
AD HORIZONTAL DUCTLESS FUME HOOD
- Ductless design with activated charcoal filter for a wide range of chemical removal.
- Integrated prefilter and extended adsorption capacity.
- Silent operation with low energy consumption and operating cost.
- Easy installation and economic operation.
- Enhanced comfort with optional features like metallic stand, additional duct, lighting, and air velocity measurement.
- Models: AD 8, AD 12, AD 16 with varying flow rates, power, weight, and dimensions.
- Flow Rate: AD 8 - 1000 m3/h, AD 12 - 1400 m3/h, AD 16 - 1800 m3/h.
- Power: AD 8 - 300W, AD 12 - 400W, AD 16 - 600W.
- Weight: AD 8 - 72 Kg, AD 12 - 110 Kg, AD 16 - 140 Kg.
- Filter: CA 125 with charcoal weight of 30 Kg for AD 8 and 60 Kg for AD 12 and AD 16.
- Optional reduced capacity filter type CA 6/6 with 13 Kg per filter.
- Features on/off fan control, lighting option, fan speed adjustor, fan fuse, lighting fuse, and time totalizer.
- Charcoal filter has an average lifetime of 6-12 months.
- Robust adjustable fan with no maintenance required, ensuring low noise and the ability to double flow rate if necessary.
- Air is drawn into the work volume by negative pressure, purified by an activated charcoal filter, and then expelled back into the room.
Catalog excerpts

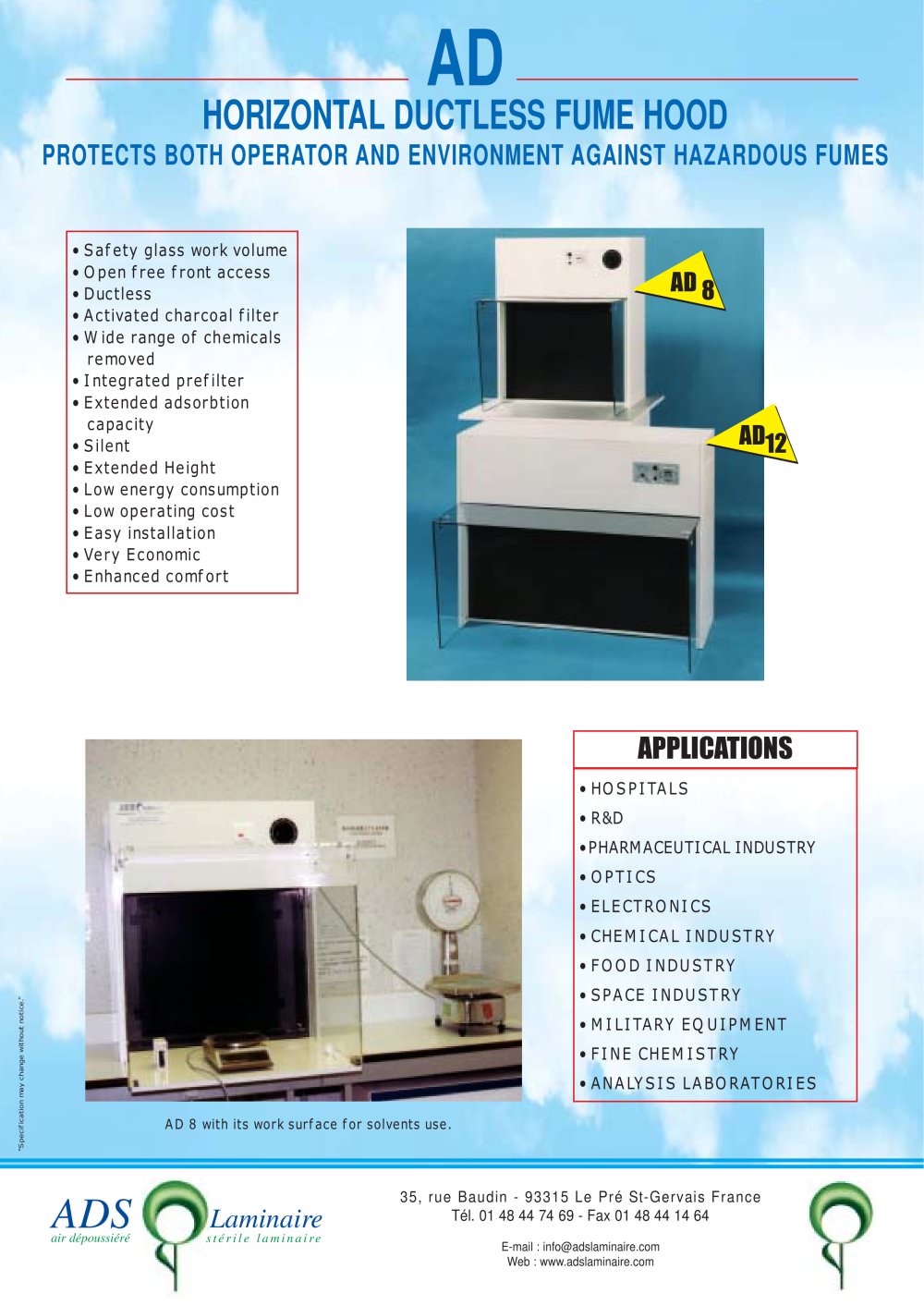

AD HORIZONTAL DUCTLESS FUME HOOD PROTECTS BOTH OPERATOR AND ENVIRONMENT AGAINST HAZARDOUS FUMES Safety glass work volume Օ Open free front access Ductless Օ Activated charcoal filter Wide range of chemicals removed Օ Integrated prefilter Extended adsorbtion capacity Օ Silent Extended Height Օ Low energy consumption Low operating cost Օ Easy installation Very Economic Օ Enhanced comfort APPLICATIONS HOSPITALS Օ R&D PHARMACEUTICAL INDUSTRY Օ OPTICS ELECTRONICS Օ CHEMICAL INDUSTRY FOOD INDUSTRY Օ SPACE INDUSTRY MILITARY EQUIPMENT Օ FINE CHEMISTRY ANALYSIS LABORATORIES AD 8 with its work surface for solvents use. ADS air dթpoussir Laminaire st驩rile laminaire 35, rue Baudin - 93315 Le Pr St-Gervais France Tl. 01 48 44 74 69 - Fax 01 48 44 14 64 E-mail : [email protected] Web : www.adslaminaire.com
Open the catalog to page 1
■CONTROL PANEL on/off FAN CONTROL Օ on/off LIGHTING (option) Fan speed ajustor Օ FAN fuse LIGHTING fuse (option) ՕTIME TOTAL IZER ADSOuhue ■LIGHTING (option) Fluorescent lighting provides an average of 400-600 lux on the work surface ■SPEEDAJUSTOR The speed variation allows fan variation according to polluant emission quantity. 0 \ ■THEORY Air is taken into the work volume thanks to the negative pressure, sucked by a very silent motor/impeller. The air volume is purified by an activated charcoal filter and then blown out on the top of the unit back to the room. 1 H H I- il -i un 'lu v ■FAN...
Open the catalog to page 2All ADS LAMINAIRE catalogs and technical brochures
