TENSION TCC

TENSION TCC

Product catalog summary

Specifications:
The TCC tension load cells are constructed from stainless steel AISI 630 (17-4-PH) and are hermetically sealed to an IP67 rating, ensuring high durability and resistance to environmental factors. They have a high overload capacity and come with an individual test report. An EX version is available for hazardous areas as an optional feature.

Applications:
These load cells are suitable for suspended vessel weighing and crane applications, making them versatile for various industrial uses.

Technical Data:
The load cells have a maximum usable load and destructive load capacity, with specific rated outputs and nominal deflection values. They maintain a high level of accuracy with minimal errors in linearity, hysteresis, and repeatability. The cells are designed to withstand temperature variations, with specified effects on zero output signal and nominal load cell output. The input and output impedance values are provided, along with insulation impedance and recommended supply voltage. The compensated and nominal temperature ranges are also specified.

Model Variants:
The TCC models include TCC 10, TCC 15, TCC 25, and TCC 50, with rated capacities of 10, 15, 25, and 50 tons respectively. Each model has specific dimensions and weight, with a standard cable length of 5 meters featuring a polyurethane jacket and dual floating screen.

Additional Information:
The document notes that technical improvements may lead to changes in specifications. The data was issued in June 2007, and the company is ISO 9001:2000 certified, ensuring quality management standards.

Catalog excerpts

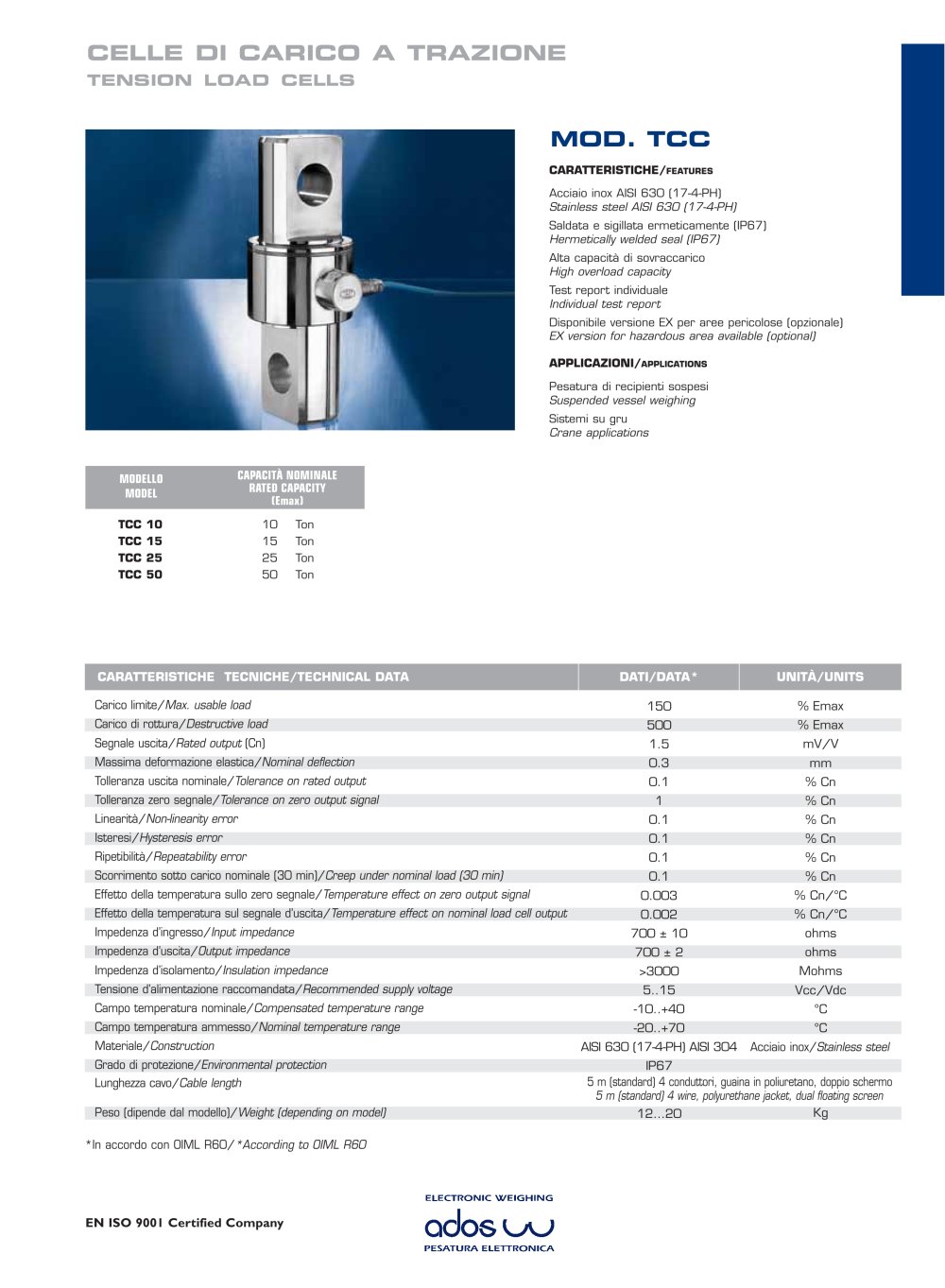

CARATTERISTICHE/ FEATURES Acciaio inox AISI 630 (17-4-PH) Stainless steel AISI 630 (17-4-PH) Saldata e sigillata ermeticamente (IP67) Hermetically welded seal (IP67) Alta capacit di sovraccarico High overload capacity Test report individuale Individual test report Disponibile versione EX per aree pericolose (opzionale) EX version for hazardous area available (optional) APPLICAZIONI/ APPLICATIONS Pesatura di recipienti sospesi Suspended vessel weighing Sistemi su gru Crane applications MODELLOMODELCAPACIT NOMINALERATED CAPACITY(Emax) > TCC 10TCC 15TCC 25TCC 50 10Ton15Ton25Ton 50Ton CARATTERISTICHE TECNICHE/TECHNICAL DATA DATI/DATA*UNIT/UNITS Carico limite/ Max. usable load 1505001.5 0.3 0.110.1 0.1 0.1 0.10.003 0.002700 10700 ѱ2>30005..15-10..+40 -20..+70AISI 630 (17-4-PH) AISI 304IP671220 % Emax% EmaxmV/Vmm% Cn % Cn % Cn % Cn % Cn % Cn% Cn/ŰC % Cn/Cohms ohmsMohmsVcc/VdcаC C Carico di rottura/ Destructive load Segnale uscita/ Rated output (Cn)Massima deformazione elastica/ Nominal deflection Tolleranza uscita nominale/ Tolerance on rated output Tolleranza zero segnale/ Tolerance on zero output signal LinearitР/ Non-linearity error Isteresi/ Hysteresis error Ripetibilit/ Repeatability error Scorrimento sotto carico nominale (30 min)/ Creep under nominal load (30 min) Effetto della temperatura sullo zero segnale/ Temperature effect on zero output signal Effetto della temperatura sul segnale duscita/ Temperature effect on nominal load cell output Impedenza dҒingresso/ Input impedance Impedenza duscita/ Output impedance Impedenza dҒisolamento/ Insulation impedance Tensione dalimentazione raccomandata/ Recommended supply voltage Campo temperatura nominale/ Compensated temperature range Campo temperatura ammesso/ Nominal temperature range Materiale/ Construction Acciaio inox/ Stainless steel Grado di protezione/ Environmental protection Lunghezza cavo/ Cable length 5 m (standard) 4 conduttori, guaina in poliuretano, doppio schermo 5 m (standard) 4 wire, polyurethane jacket, dual floating screen Peso (dipende dal modello)/ Weight (depending on model) Kg *In accordo con OIML R60/ *According to OIML R60 >
