Overview

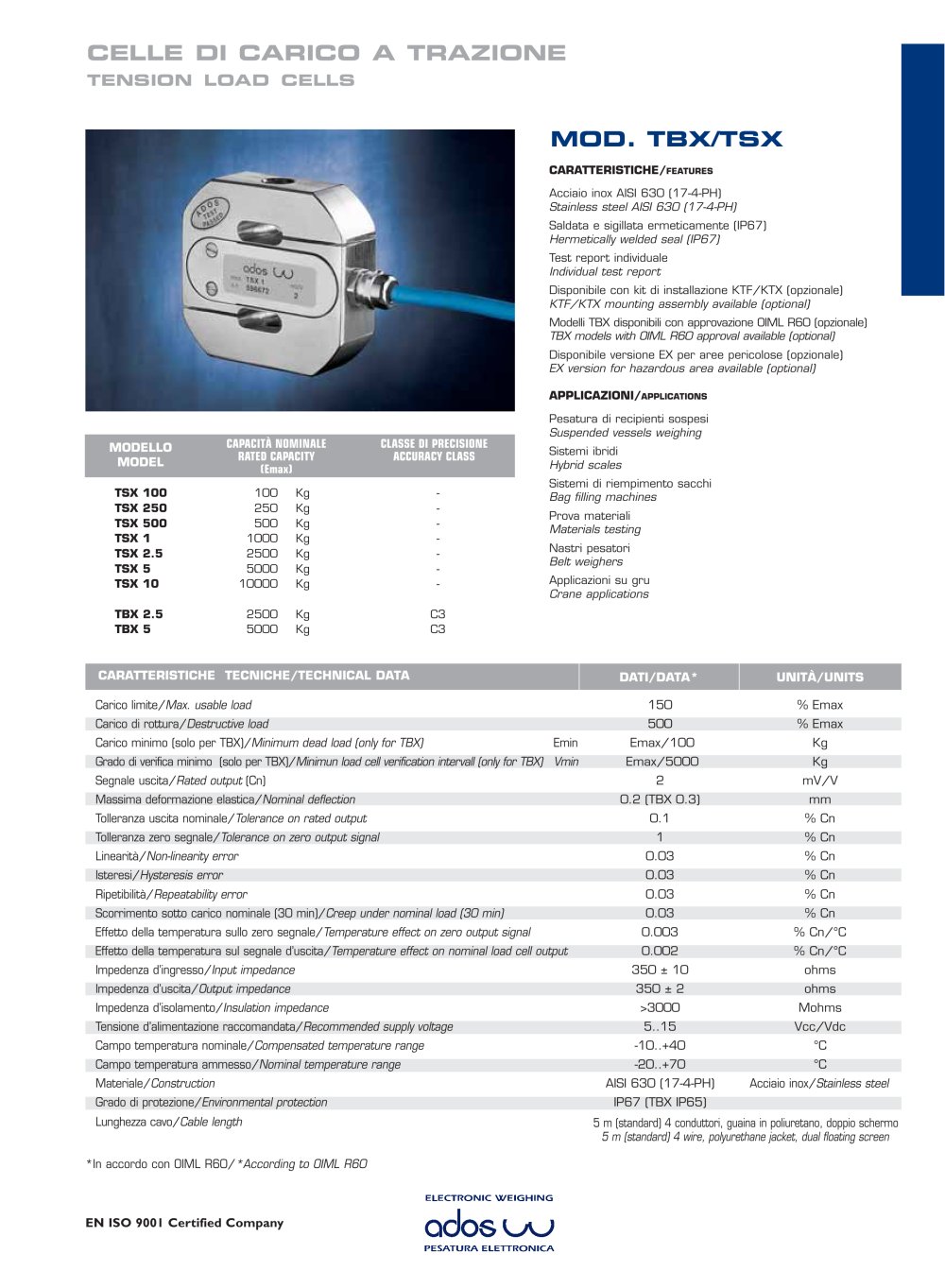

This document provides technical specifications and features for the TBX/TSX tension load cells, which are designed for various industrial applications. The load cells are made from stainless steel AISI 630 (17-4-PH) and are hermetically sealed to IP67 standards. They come with optional features such as OIML R60 approval and EX versions for hazardous areas.

Features

• Material: Stainless steel AISI 630 (17-4-PH)
• Hermetically sealed (IP67)
• Individual test report provided
• Optional installation kits (KTF/KTX)
• Optional OIML R60 approval for TBX models
• Optional EX version for hazardous areas

Applications

• Suspended vessels weighing
• Hybrid scales
• Bag filling machines
• Materials testing
• Belt weighers
• Crane applications

Technical Data

• Max. usable load: 150% Emax
• Destructive load: 500% Emax
• Minimum dead load (only for TBX): Emax/100
• Minimum load cell verification interval (only for TBX): Emax/5000
• Rated output: 2 mV/V
• Nominal deflection: 0.2 mm (TBX 0.3 mm)
• Tolerance on rated output: 0.1% Cn
• Tolerance on zero output signal: 1% Cn
• Non-linearity error: 0.03% Cn
• Hysteresis error: 0.03% Cn
• Repeatability error: 0.03% Cn
• Creep under nominal load (30 min): 0.03% Cn
• Temperature effect on zero output signal: 0.003% Cn/°C
• Temperature effect on nominal load cell output: 0.002% Cn/°C
• Input impedance: 350 ± 10 ohms
• Output impedance: 350 ± 2 ohms
• Insulation impedance: >3000 Mohms
• Recommended supply voltage: 5..15 Vcc/Vdc
• Compensated temperature range: -10..+40°C
• Nominal temperature range: -20..+70°C

Models and Capacities

• TSX models range from 100 Kg to 10000 Kg
• TBX models available in 2500 Kg and 5000 Kg
• Accuracy class: C3 for TBX models

Additional Information

• 5 m standard cable with 4 wires, polyurethane jacket, dual floating screen
• Dimensions provided with a tolerance of ± 0.5 mm
• Color coding for wiring: Red (+ Excitation), Black (- Excitation), Green (+ Signal), White (- Signal)

Company Information
ADOS S.r.l., Via Lazio 25, 20090 Buccinasco, Milano, Italy. Certified quality system ISO 9001:2000.
