Overview

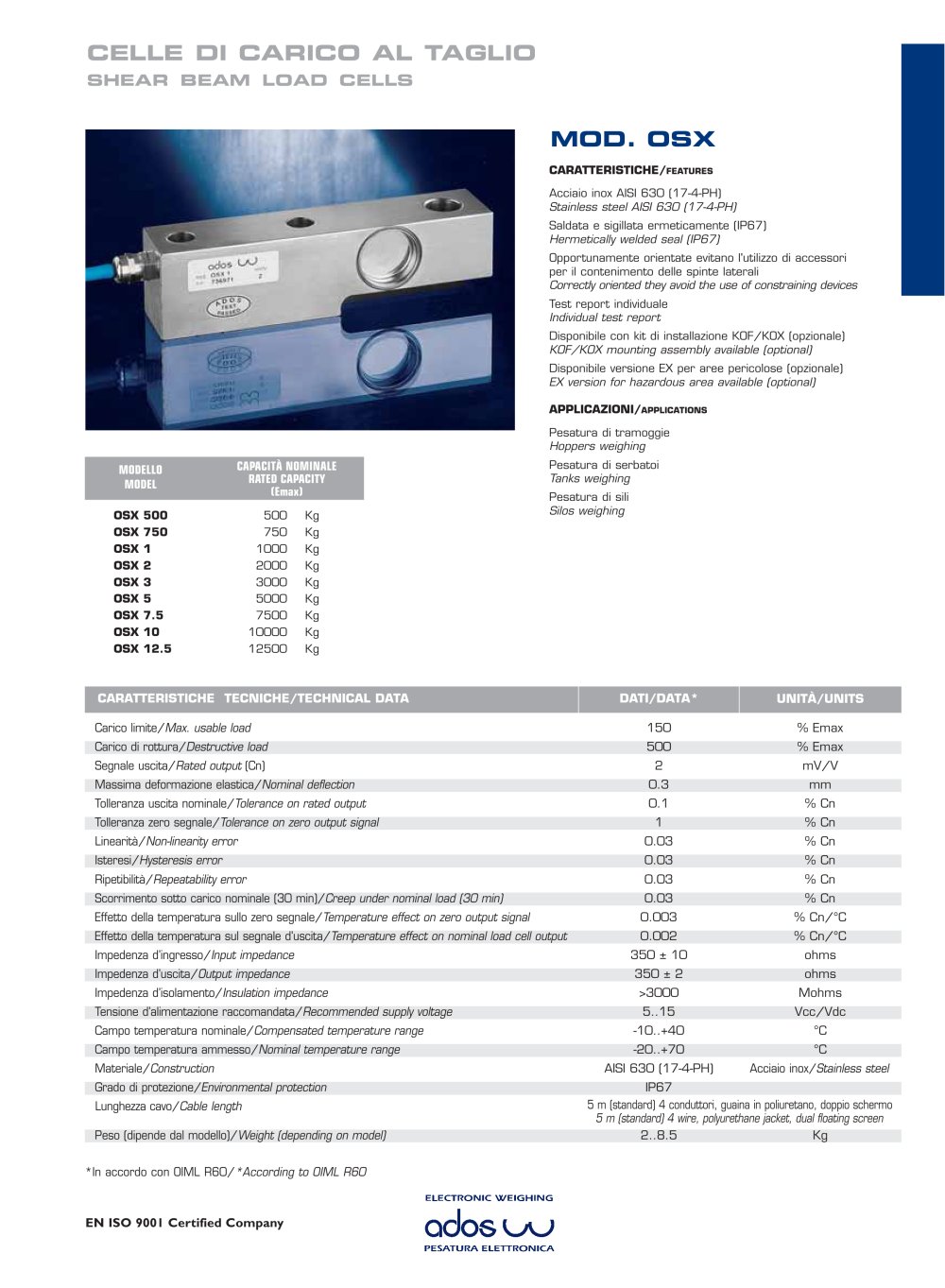

The document provides technical specifications and features of the Shear Beam Load Cells, Model OSX, manufactured by ADOS S.r.l. These load cells are designed for weighing applications in hoppers, tanks, and silos.

Features

Constructed from stainless steel AISI 630 (17-4-PH).
Hermetically welded seal with IP67 protection.
Correct orientation eliminates the need for lateral constraint devices.
Individual test reports are provided.
Optional installation kits (KOF/KOX) and EX versions for hazardous areas are available.

Applications

Hoppers weighing
Tanks weighing
Silos weighing

Technical Specifications

Max. usable load: 150% Emax
Destructive load: 500% Emax
Rated output: 2 mV/V
Nominal deflection: 0.3 mm
Tolerance on rated output: 0.1% Cn
Tolerance on zero output signal: 1% Cn
Non-linearity error: 0.03% Cn
Hysteresis error: 0.03% Cn
Repeatability error: 0.03% Cn
Creep under nominal load (30 min): 0.03% Cn
Temperature effect on zero output signal: 0.003% Cn/°C
Temperature effect on nominal load cell output: 0.002% Cn/°C
Input impedance: 350 ± 10 ohms
Output impedance: 350 ± 2 ohms
Insulation impedance: >3000 Mohms
Recommended supply voltage: 5..15 Vcc/Vdc
Compensated temperature range: -10..+40°C
Nominal temperature range: -20..+70°C
Material: Stainless steel AISI 630 (17-4-PH)
Environmental protection: IP67
Weight: 2..8.5 Kg depending on model

Model Variants

OSX 500: 500 Kg
OSX 750: 750 Kg
OSX 1: 1000 Kg
OSX 2: 2000 Kg
OSX 3: 3000 Kg
OSX 5: 5000 Kg
OSX 7.5: 7500 Kg
OSX 10: 10000 Kg
OSX 12.5: 12500 Kg

Additional Information

Standard cable length: 5 m with 4 wires, polyurethane jacket, dual floating screen.
Color coding for connections: + Excitation (Red), - Excitation (Black), + Signal (Green), - Signal (White).
Dimensions are provided with a tolerance of ± 0.5 mm.
Certified quality system ISO 9001:2000.
