ADOS
SHEAR BEAM ESX

SHEAR BEAM ESX

Product catalog summary

Overview
The document provides technical specifications and features of the Shear Beam Load Cells, Model ESX, manufactured by ADOS S.r.l. These load cells are designed for industrial weighing applications and are made from stainless steel AISI 630 (17-4-PH). They are hermetically sealed (IP67) and offer a low-profile design.

Features

Constructed from stainless steel AISI 630 (17-4-PH).
Hermetically welded seal with IP67 protection.
Low-profile design that avoids the need for lateral constraint devices.
Economical solution for industrial weighing.
Mechanically interchangeable with competitive products.
Individual test report provided.
Optional KEF mounting assembly and EX version for hazardous areas available.

Applications

Hoppers weighing.
Tanks weighing.
Pallet scales.
Low-profile platform scales.

Technical Specifications

Rated capacities range from 500 Kg to 5000 Kg depending on the model.
Maximum usable load and destructive load are specified.
Rated output, nominal deflection, and various tolerances are detailed.
Temperature effects on zero output signal and nominal load cell output are provided.
Input and output impedance, insulation impedance, and recommended supply voltage are specified.
Compensated and nominal temperature ranges are given.
Weight varies depending on the model.

Dimensions
Dimensions for each model (ESX 500, ESX 1, ESX 2, ESX 3, ESX 5) are provided in millimeters with a tolerance of ±0.5 mm.

Additional Information

Color coding for wiring is specified.
Technical improvements may cause changes in specifications.
Certified quality system ISO 9001:2000.

Catalog excerpts

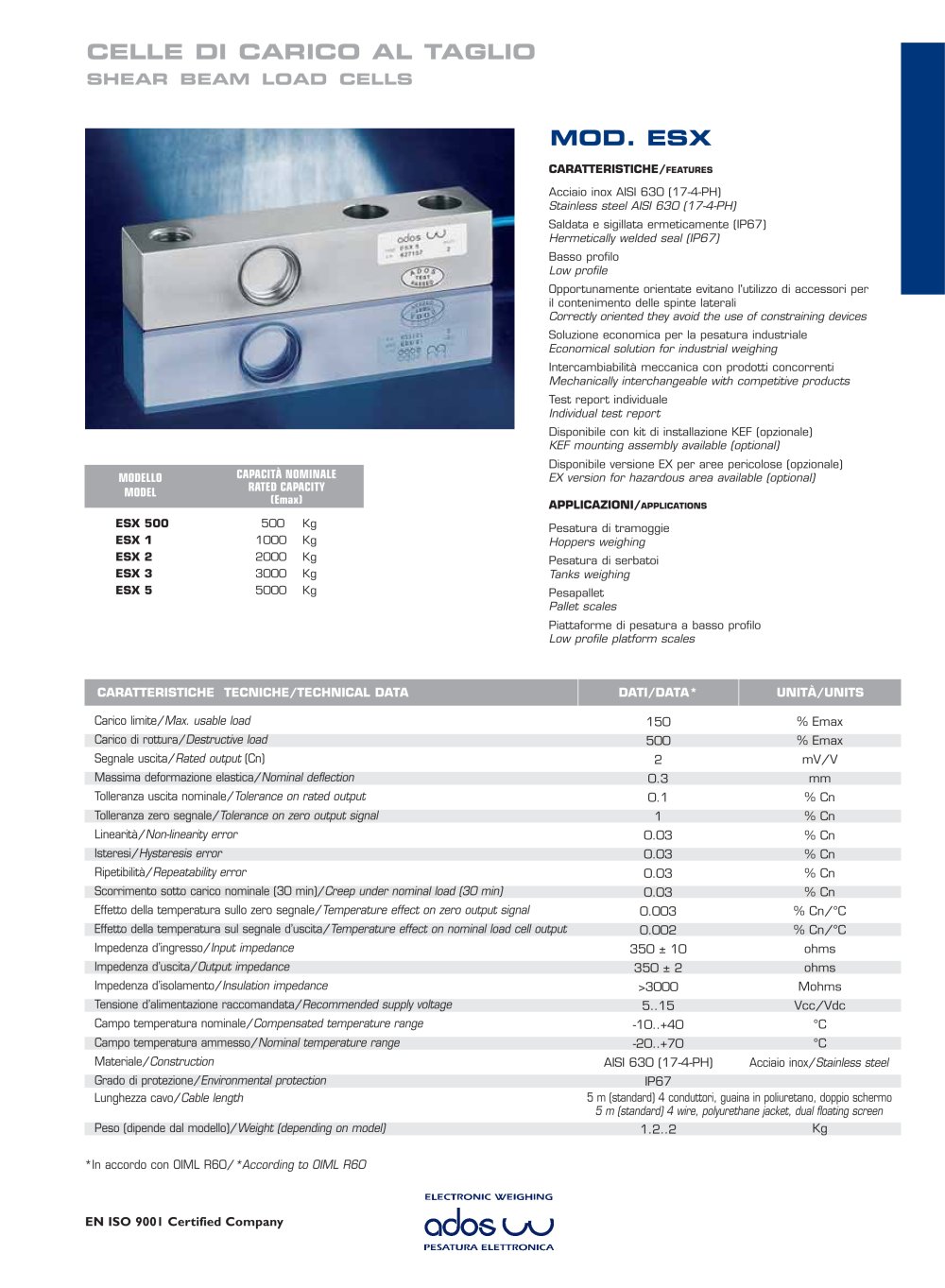

CARATTERISTICHE/ FEATURES Acciaio inox AISI 630 (17-4-PH) Stainless steel AISI 630 (17-4-PH) Saldata e sigillata ermeticamente (IP67) Hermetically welded seal (IP67) Basso profilo Low profile Opportunamente orientate evitano l'utilizzo di accessori peril contenimento delle spinte laterali Correctly oriented they avoid the use of constraining devices Soluzione economica per la pesatura industriale Economical solution for industrial weighing Intercambiabilit meccanica con prodotti concorrenti Mechanically interchangeable with competitive products Test report individuale Individual test report Disponibile con kit di installazione KEF (opzionale) KEF mounting assembly available (optional) Disponibile versione EX per aree pericolose (opzionale) 500Kg1000Kg 2000Kg3000Kg 5000Kg EX version for hazardous area available (optional) MODELLOMODELCAPACIT NOMINALERATED CAPACITY(Emax) > APPLICAZIONI/ APPLICATIONS ESX 500ESX 1 ESX 2 ESX 3ESX 5 Pesatura di tramoggie Hoppers weighing Pesatura di serbatoi Tanks weighing Pesapallet Pallet scales Piattaforme di pesatura a basso profilo Low profile platform scales CARATTERISTICHE TECNICHE/TECHNICAL DATA DATI/DATA*UNIT/UNITS Carico limite/ Max. usable load 15050020.3 0.110.03 0.03 0.03 0.030.003 0.002350 10350 ѱ2>30005..15-10..+40 -20..+70AISI 630 (17-4-PH)IP671.2..2 % Emax% EmaxmV/Vmm% Cn % Cn % Cn % Cn % Cn % Cn% Cn/C % Cn/аCohms ohmsMohmsVcc/VdcC аC Carico di rottura/ Destructive load Segnale uscita/ Rated output (Cn)Massima deformazione elastica/ Nominal deflection Tolleranza uscita nominale/ Tolerance on rated output Tolleranza zero segnale/ Tolerance on zero output signal Linearit/ Non-linearity error Isteresi/ Hysteresis error Ripetibilit/ Repeatability error Scorrimento sotto carico nominale (30 min)/ Creep under nominal load (30 min) Effetto della temperatura sullo zero segnale/ Temperature effect on zero output signal Effetto della temperatura sul segnale dࠒuscita/ Temperature effect on nominal load cell output Impedenza dingresso/ Input impedance Impedenza dҒuscita/ Output impedance Impedenza disolamento/ Insulation impedance Tensione dҒalimentazione raccomandata/ Recommended supply voltage Campo temperatura nominale/ Compensated temperature range Campo temperatura ammesso/ Nominal temperature range Materiale/ Construction Acciaio inox/ Stainless steel Grado di protezione/ Environmental protection Lunghezza cavo/ Cable length 5 m (standard) 4 conduttori, guaina in poliuretano, doppio schermo 5 m (standard) 4 wire, polyurethane jacket, dual floating screen Peso (dipende dal modello)/ Weight (depending on model) Kg *In accordo con OIML R60/ *According to OIML R60 >
