PRODUCT OVERVIEW

Product catalog summary

Product Overview

BP Series: Low capacity load cells with a maximum load area of 400x400 mm, accuracy of 0.2% Cn, and IP45 protection. Capacities range from 5 kg to 75 kg.
KAF Series: Low profile, easy installation, stainless steel AISI 630, accuracy of 0.1% Cn, IP67 protection, and available in EX version. Capacities range from 100 kg to 12,000 kg.
CCX Series: High capacity load cells with stainless steel construction, accuracy of 0.1% Cn, IP67 protection, and EX version available. Capacities range from 30 t to 1000 t.
ESX Series: Low profile, interchangeable with competitive products, stainless steel, accuracy of 0.03% Cn, IP67 protection, and EX version available. Capacities range from 500 kg to 5000 kg.

Load Monitoring Systems

SAF: For monitoring loads on trucks, lifts, cranes, and mechanical strain on steel structures. Includes overload monitoring.
TMOPX: Load monitoring with 2.4 GHz ISM radio transmission, relay alarm output, CAN output, and battery power. Capacities of 2000 kg and 3200 kg.

Weight Indicators

A400E: Multipurpose weight indicator with a 24-bit A/D converter, up to 60,000 displayable divisions, and multiple output options including RS232, RS485, and CAN. Supports MODBUS-RTU, ASCII ADOS, and PROFIBUS DP protocols.
A100E: Similar to A400E but with up to 20,000 displayable divisions.

Special Load Cells

SPT/SMF/SCF/SDT/SCA-SFA-STA: Custom-designed load cells with a wide capacity range from 0.1 t to 1000 t, suitable for high-temperature environments up to 200°C, and available in EX versions.
STA: Redundant tension load cell for lifting devices with capacities from 2 t to 50 t, featuring double 4-20 mA analog output and IP67 protection.

Instrumentation for Offshore Market

Load cells equipped with cables and connectors suitable for underwater applications.

Additional Products

Check Weigher Systems: For dynamic weighing on belts.
ATEX Systems: Approved for hazardous area installations.

Catalog excerpts

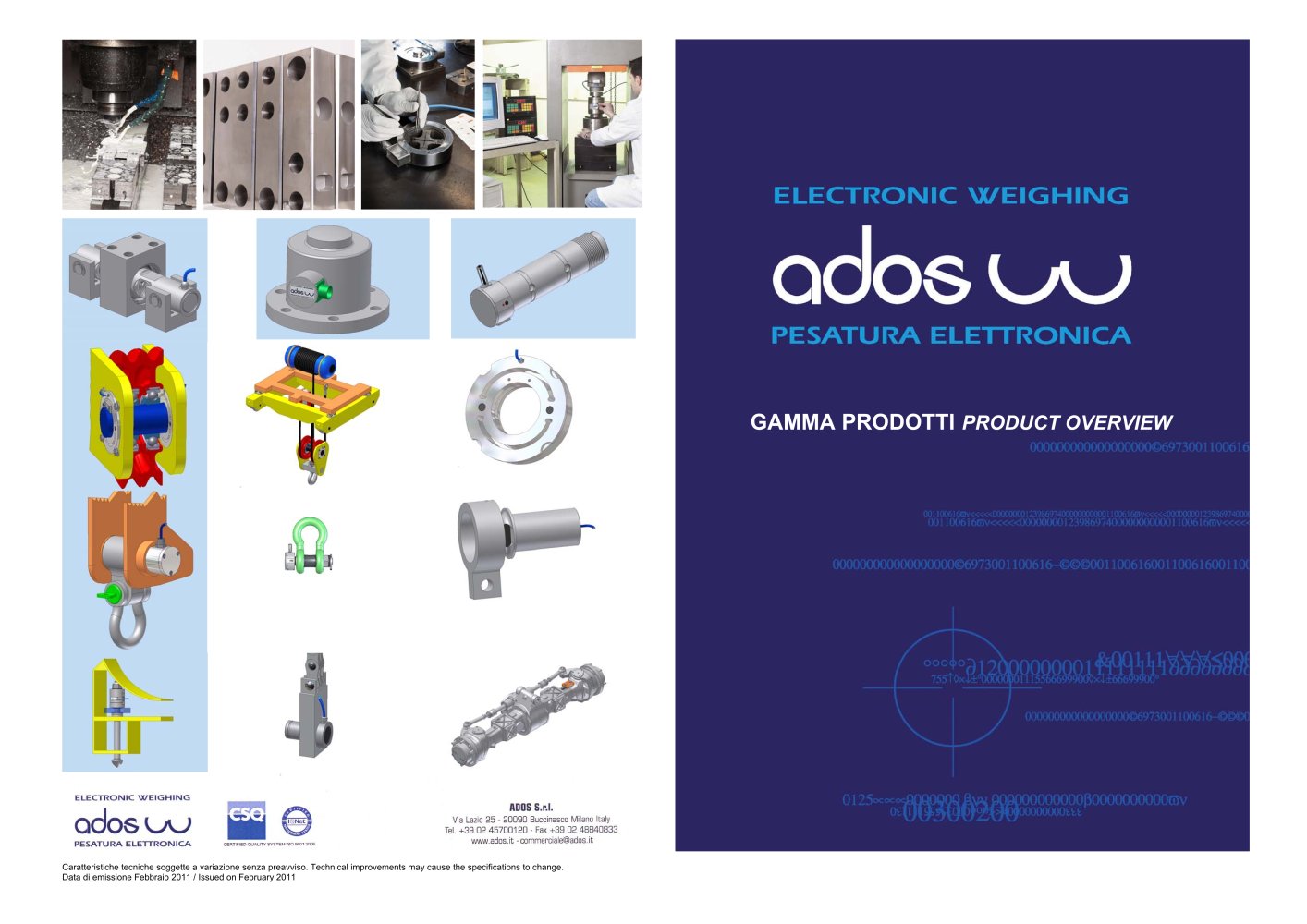

Caratteristiche tecniche soggette a variazione senza preavviso. Technical improvements may cause the specifications to change. Data di emissione Febbraio 2011 / Issued on February 2011 GAMMA PRODOTTI

Open the catalog to page 1

BP Bassa portata Low capacity Piano di carico Max 400x400 mm Precisione 0,2%Cn Accuracy 0,2 %Cn IP45 Portate (kg) Capacities (kg) 5, 7, 10, 15, 20, 30, 50, 75 KAF CEX Bassa profilo Low profile Facile installazione Simple installation Acciaio inox AISI 630 Stainless steel AISI 630 Precisione 0,1%Cn Accuracy 0,1 %Cn IP67 Disponibile versione EX EX version available Portate (kg) Capacities (kg) 100, 250, 500, 1000, 2500, 5000, 7500, 10000, 12000 KLF CFX/CRX Basso profilo Low profile Facile installazione Simple installation Acciaio inox AISI 630 Stainless steel AISI 630 Precisione 0,05 %Cn Accuracy...

Open the catalog to page 2

A400E Indicatore del peso multifunzione Multipurpose weight indicator Convertitore A/D Sigma Delta 24 bit Sigma delta 24 bit A/D converter Fino a 60000d visualizzabili Up to displayable 60000d Due uscite seriali RS232 e RS485 Two serial outputs: RS232 or RS485 Una uscita CAN One CAN output Uscita analogica optoisolata 16 bit 0-10V o 4-20 mA Analog output 16 bit optoisolated 0-10V or 4-20 mA Protocolli di trasmissione MODBUS-RTU, ASCII ADOS, PROFIBUS DP (opzione) Transmission protocols MODBUS-RTU, ASCII ADOS, PROFIBUS DP (option) Versioni per dosaggi multicomponente, gestione nastro trasportatore,...

Open the catalog to page 3

STA Cella a trazione ridondante Redundant tension load cell Applicazioni su apparecchiature di sollevamento Lifting device applications Portata 2 t, 5t, 10t, 20t, 50t Capacity 2 t, 5t, 10t, 20t, 50t Doppia uscita analogica 4-20 mA (12 bit) Double 4-20 mA analog output (12 bit) Acciaio inox AISI 630 Stainless steel AISI 630 Precisione 0,5 %Cn Accuracy 0,5 %Cn Collegamento elettrico (Binder 715 M12x1) Collegamento elettrico (Binder 715 M12x1) IP67 STX Cella a trazione Tension load cell Applicazioni su apparecchiature di sollevamento Lifting device applications Portata 10, 20, 30, 50 t Capacity...

Open the catalog to page 4
