Product catalog summary

Technical Specifications Overview

General Information: The document outlines the specifications for load cell junction boxes, specifically models 1308 and 1308EX-I, with a note that technical improvements may lead to changes in specifications.

Model 1308 Features:

Designed for parallel connection of up to four load cells.
Constructed from ABS material with IP66 protection according to EN 60529 standards.
Operational temperature range is from -40°C to +60°C.
Dimensions are 240 x 160 x 91 mm (L x W x H).

Options: The 1308TR version includes adjustable potentiometers for corner adjustments.

Model 1308EX-I Features:

Also supports parallel connection of up to four load cells.
Suitable for installation in hazardous areas (zone 21).
Made from polyester reinforced with glass fibers, offering IP65 protection as per EN 60529.
Protection mode is II 2 GD EEx ia IIC T6 T80°C.
Dimensions are 220 x 120 x 90 mm (L x W x H).

Catalog excerpts

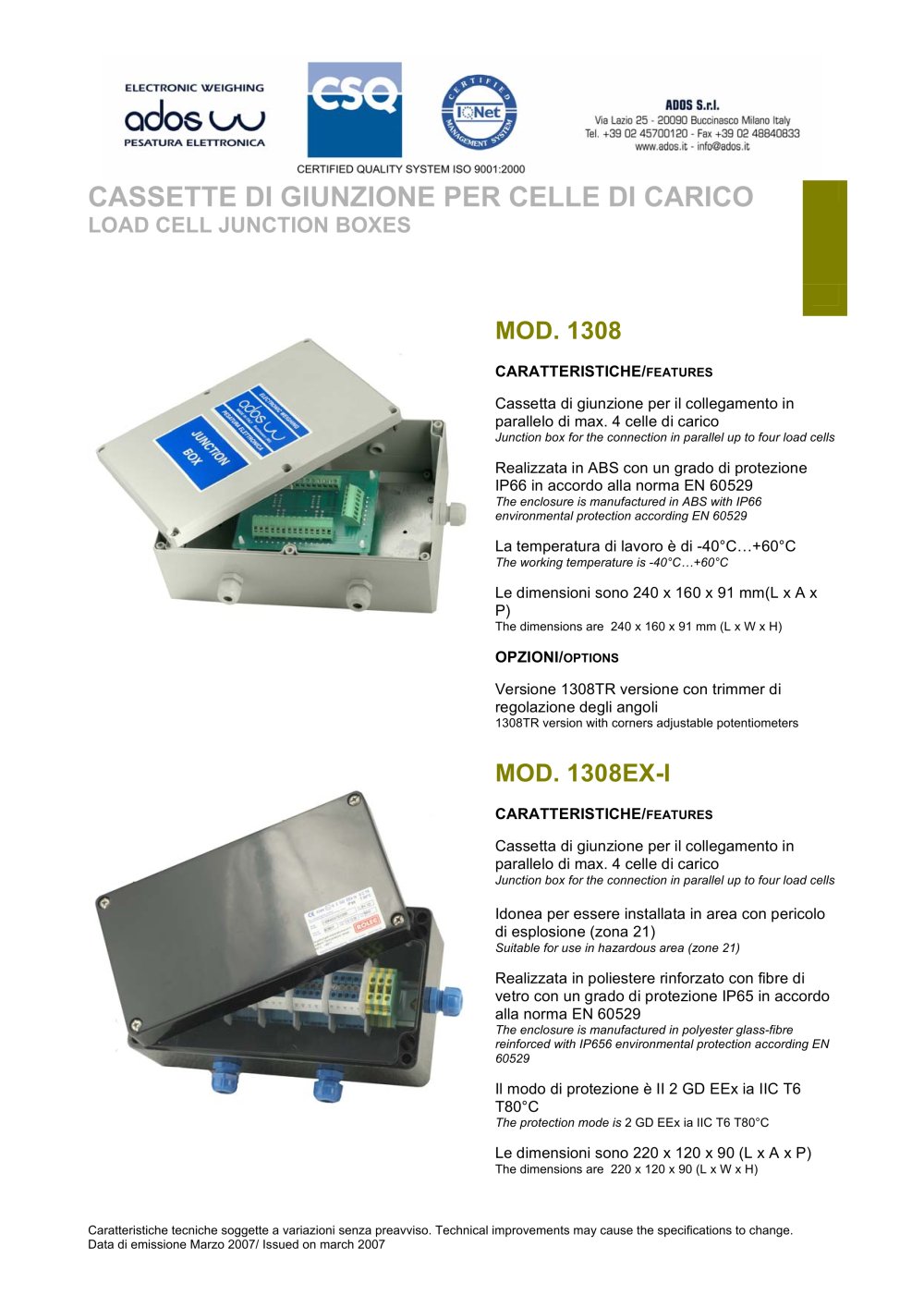

Junction box for the connection in parallel up to four load cells > The enclosure is manufactured in ABS with IP66 environmental protection according EN 60529 > 1308TR version with corners adjustable potentiometers > Junction box for the connection in parallel up to four load cells > Suitable for use in hazardous area (zone 21) > The enclosure is manufactured in polyester glass-fibre reinforced with IP656 environmental protection according EN 60529 > The dimensions are 220 x 120 x 90 (L x W x H) Caratteristiche tecniche soggette a variazioni senza preavviso. Technical improvements may cause the specifications to change. Data di emissione Marzo 2007/ Issued on march 2007 >
