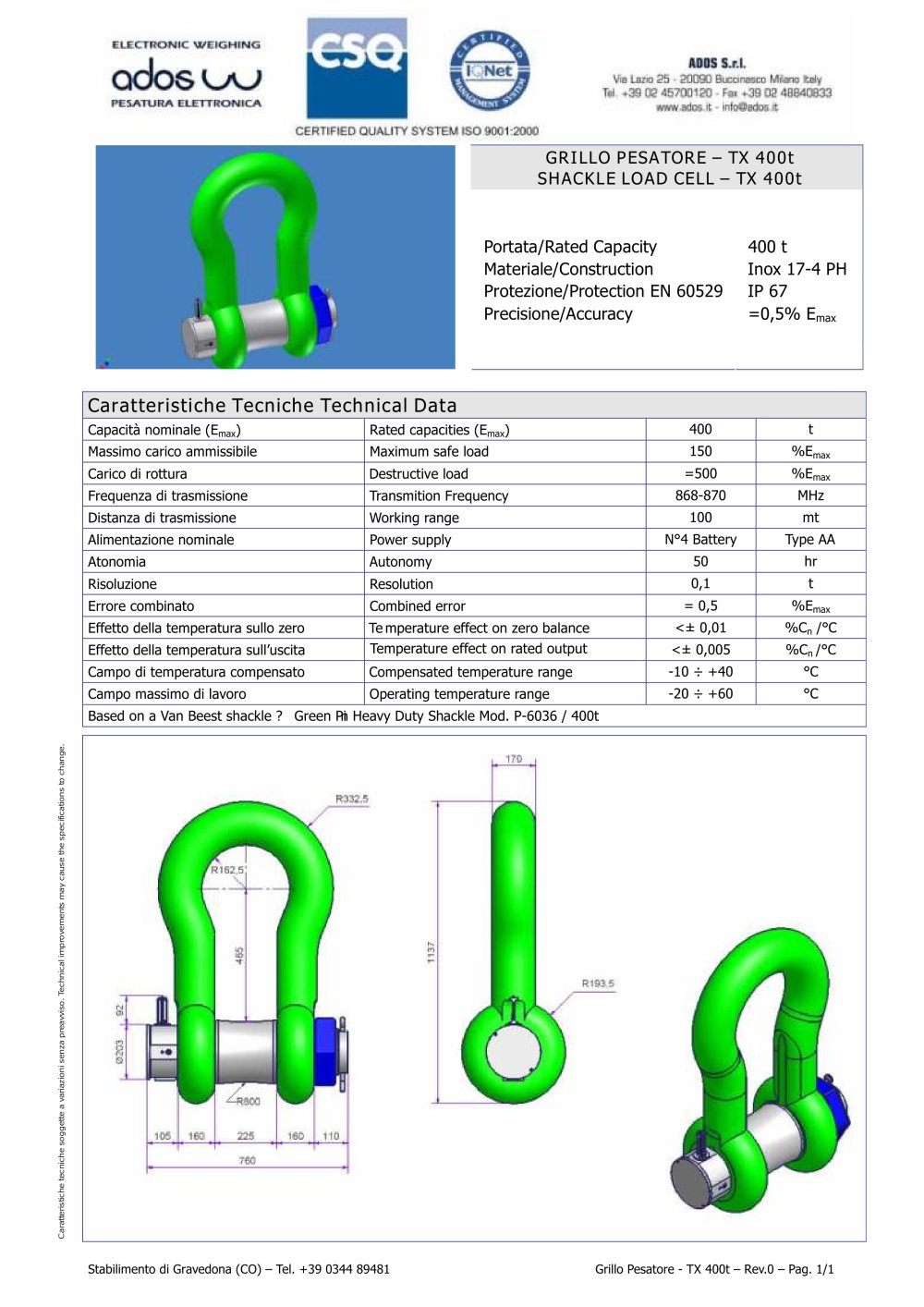

Shackle Load Cell – TX 400t Overview
This document provides technical specifications for the Shackle Load Cell model TX 400t, designed for heavy-duty applications.
This document provides technical specifications for the Shackle Load Cell model TX 400t, designed for heavy-duty applications.
Specifications
- Rated Capacity: 400 tons
- Material: Stainless Steel 17-4 PH
- Protection: EN 60529 IP 67
- Accuracy: 0.5% of Emax
Technical Data
- Maximum Safe Load: 150% of Emax
- Destructive Load: 500% of Emax
- Transmission Frequency: 868-870 MHz
- Working Range: 100 meters
- Power Supply: 4 AA batteries
- Autonomy: 50 hours
- Resolution: 0.1 tons
- Combined Error: 0.5% of Emax
- Temperature Effect on Zero Balance: <± 0.01 %Cn/°C
- Temperature Effect on Rated Output: <± 0.005 %Cn/°C
- Compensated Temperature Range: -10 to +40 °C
- Operating Temperature Range: -20 to +60 °C
Additional Information
The load cell is based on a Van Beest Green Pin Heavy Duty Shackle Model P-6036 / 400t. Technical specifications are subject to change without prior notice due to potential improvements.
The load cell is based on a Van Beest Green Pin Heavy Duty Shackle Model P-6036 / 400t. Technical specifications are subject to change without prior notice due to potential improvements.
