ADOS
PIN SPT

PIN SPT

Product catalog summary

Overview: The document provides technical specifications and features of the SPT model pin load cells, manufactured by ADOS S.r.l. These load cells are designed for force monitoring and crane applications, offering a wide range of capacities and customization options.

Specifications:

Material: Made from stainless steel AISI 630 (17-4-PH).
Sealing: Hermetically welded with protection ratings of IP65 to IP67.
Capacity Range: Available from 0.5 to 300 tons.
Temperature Range: Operates within a large temperature range, with extended options up to 200°C on request.
Overload and Lateral Force: Capable of withstanding significant overloads and lateral forces.
Redundancy: Available with a double strain gauge bridge for redundancy.
Hazardous Areas: Optional EX version for use in hazardous areas.

Technical Data:

Max Usable Load and Destructive Load: Specific values depend on the model.
Rated Output: Varies between 0.3 to 2 mV/V.
Nominal Deflection: 0.2 mm.
Tolerances: Includes tolerances on rated output and zero output signal.
Impedance: Input impedance is 350 ± 10 ohms, output impedance is 350 ± 2 ohms, and insulation impedance is greater than 3000 Mohms.
Supply Voltage: Recommended between 5 to 15 Vcc/Vdc.
Temperature Ranges: Compensated range from -10 to +40°C, nominal range from -20 to +70°C.

Applications: The load cells are suitable for force monitoring and crane applications, ensuring reliable performance in various industrial settings.

Additional Information: The document mentions that technical improvements may lead to changes in specifications without prior notice. The product is ISO 9001 certified, ensuring quality and reliability.

Catalog excerpts

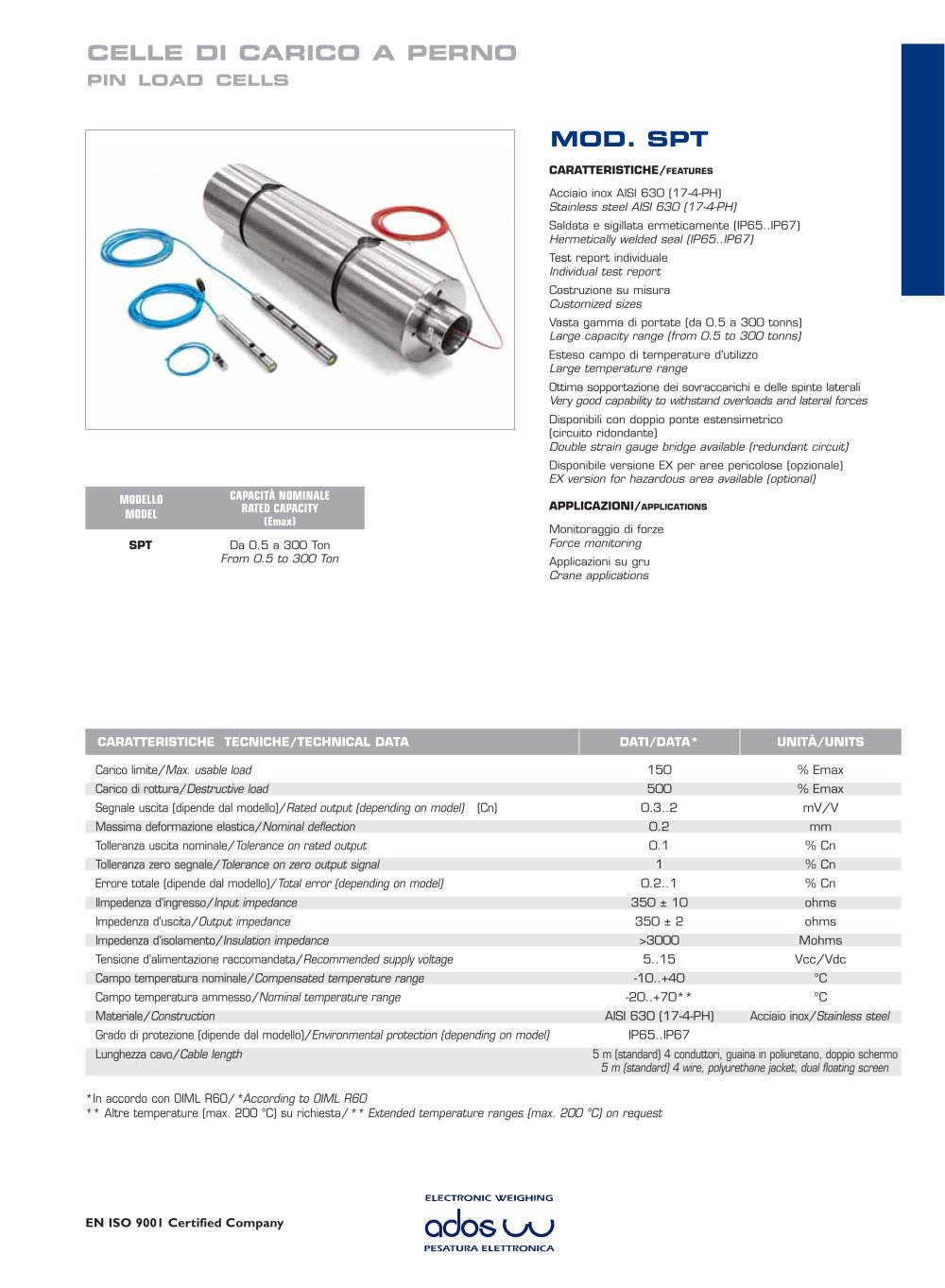

CARATTERISTICHE/ FEATURES Acciaio inox AISI 630 (17-4-PH) Stainless steel AISI 630 (17-4-PH) Saldata e sigillata ermeticamente (IP65..IP67) Hermetically welded seal (IP65..IP67) Test report individuale Individual test report Costruzione su misura Customized sizes Vasta gamma di portate (da 0.5 a 300 tonns) Large capacity range (from 0.5 to 300 tonns) Esteso campo di temperature d'utilizzo Large temperature range Ottima sopportazione dei sovraccarichi e delle spinte laterali Verygood capability to withstand overloads and lateral forces Disponibili con doppio ponte estensimetrico (circuito ridondante) Double strain gauge bridge available (redundant circuit) Disponibile versione EX per aree pericolose (opzionale) EX version for hazardous area available (optional) APPLICAZIONI/ MODELLOMODELCAPACIT NOMINALERATED CAPACITY(Emax) > APPLICATIONS Monitoraggio di forze SPT Da 0.5 a 300 Ton Force monitoring From 0.5 to 300 Ton Applicazioni su gru Crane applications CARATTERISTICHE TECNICHE/TECHNICAL DATA DATI/DATA*UNIT/UNITS Carico limite/ Max. usable load 1505000.3..20.2 0.110.2..1350 10350 ѱ2>30005..15-10..+40-20..+70**AISI 630 (17-4-PH)IP65..IP67 % Emax% EmaxmV/Vmm% Cn % Cn % Cnohms ohmsMohmsVcc/VdcC аC Carico di rottura/ Destructive load Segnale uscita (dipende dal modello)/ Rated output (depending on model) (Cn)Massima deformazione elastica/ Nominal deflection Tolleranza uscita nominale/ Tolerance on rated output Tolleranza zero segnale/ Tolerance on zero output signal Errore totale (dipende dal modello)/ Total error (depending on model) IImpedenza dingresso/ Input impedance Impedenza dҒuscita/ Output impedance Impedenza disolamento/ Insulation impedance Tensione dҒalimentazione raccomandata/ Recommended supply voltage Campo temperatura nominale/ Compensated temperature range Campo temperatura ammesso/ Nominal temperature range Materiale/ Construction Acciaio inox/ Stainless steel Grado di protezione (dipende dal modello)/ Environmental protection (depending on model) Lunghezza cavo/ Cable length 5 m (standard) 4 conduttori, guaina in poliuretano, doppio schermo 5 m (standard) 4 wire, polyurethane jacket, dual floating screen *In accordo con OIML R60/ *According to OIML R60 ** Altre temperature (max. 200 C) su richiesta/ ** Extended temperature ranges (max. 200 аC) on request >

Open the catalog to page 1

Dimensioni inmm. Toll. 0.5 Dimensions inmm. Toll. ѱ0.5 Le celle di carico perno sono realizzate su disegno, comunicare le dimensioni corrispondenti alle lettere indicate nel disegno. Pin load cells are tailor-made, communicate the dimensions correspondent to the letters as showed in the drawing. > +ALIM./ EXC. ROSSO/ RED -ALIM./ EXC. NERO/ BLACK +SEGN./ SIGN. VERDE/ GREEN -SEGN./ SIGN. BIANCO/ WHITE > Caratteristiche tecniche soggette a variazioni senza preavviso. Technical improvements may cause the specifications to change. Data di emissione Giugno 2007 / Issued on June 2007. Certified quality...

Open the catalog to page 2
