LOAD CELLS ACCESSORIES SLF20/SLX20

Product catalog summary

Specifications

Constraining Device: Allows for lateral force containment with a maximum horizontal force along the X-axis of 2 tons and a permissible side offset along the Y-axis of ±5 mm.
Installation: Compact installation with bolts and washers included for load cell mounting. A grounding strap is also included.
Materials: Available in galvanized steel (SLF20) and stainless steel (SLX20).
Weight: SLF20 weighs 11.1 kg, and SLX20 weighs 11.5 kg.

Applications

Mounting kit for load cells model CFX/CRX.

Additional Model - KS20

Movement: Allows side movement in all directions up to 25 mm, accommodating side constraints and thermal expansion. It does not have self-balancing functions.
Material: Constructed from stainless steel.
Weight: Kit weighs 13 kg.
Applications: Mounting kit for compression load cells.

General Information

Dimensions are provided in mm with a tolerance of ±1.
Technical improvements may change specifications without notice.
Certified quality system ISO 9001:2000.
Issued in June 2007.

Catalog excerpts

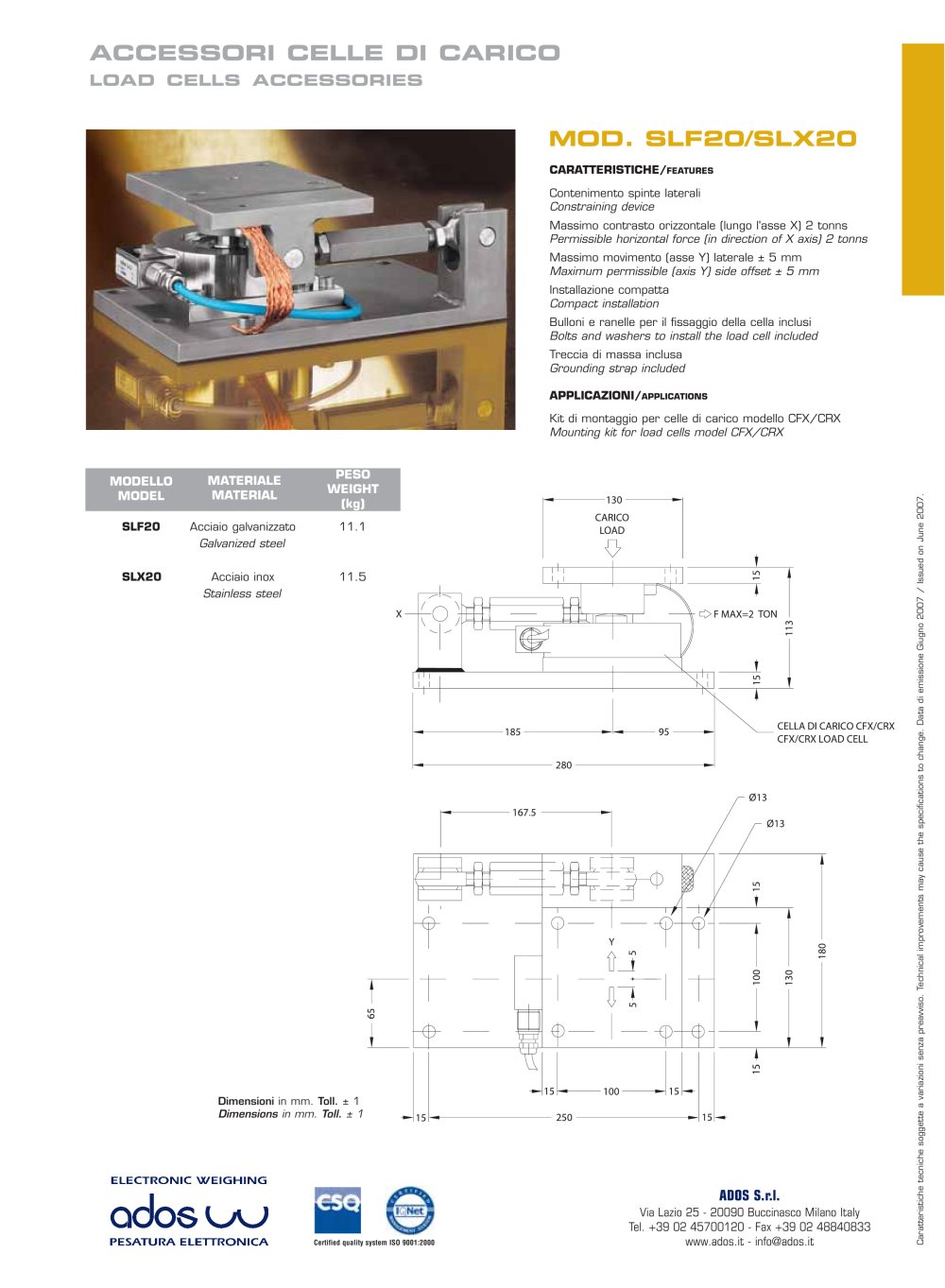

CARATTERISTICHE/ > FEATURES Contenimento spinte laterali Constraining device Massimo contrasto orizzontale (lungo l'asse X) 2 tonns Permissible horizontal force (in direction of X axis) 2 tonns Massimo movimento (asse Y) laterale 5 mm Maximum permissible (axis Y) side offset ѱ5 mm Installazione compatta Compact installation Bulloni e ranelle per il fissaggio della cella inclusi Bolts and washers to install the load cell included Treccia di massa inclusa Grounding strap included APPLICAZIONI/ > APPLICATIONS Kit di montaggio per celle di carico modello CFX/CRX Mounting kit for load cells model CFX/CRX > SLF20SLX20 Acciaio galvanizzato 11.111.5 Galvanized steel Acciaio inox Stainless steel > Dimensioni inmm. Toll. 1 Dimensions inmm. Toll. ѱ1 Certified quality system ISO 9001:2000 Caratteristiche tecniche soggette a variazioni senza preavviso. Technical improvements may cause the specifications to change. Data di emissione Giugno 2007 / Issued on June 2007. size="-4">

Open the catalog to page 1

CARATTERISTICHE/ > FEATURES Permette un movimento laterale in tutte le direzioni / It allows a side movement in all directions Viene montato sopra la cella di carico / It is mounted on load cell Favorisce i corretti scorrimenti in presenza di spinte laterali e dilatazioni termiche. Il movimento permesso di 25 mm in tutte le direzioni It allows correct sliding in case of side constraints and thermic expansion. The movement allowed is 25 mm in all directions Non ha caratteristiche autocentranti / It does not have self balancing functions Realizzato in acciaio inox / Stainless steel construction...
