LOAD CELLS ACCESSORIES KS20

Product catalog summary

Specifications and Features

Constraining Device: The accessories provide lateral constraint with a maximum permissible horizontal force of 2 tons along the X-axis and a side offset of ±5 mm along the Y-axis.
Installation: The installation is compact, and bolts and washers for fixing the load cell are included. A grounding strap is also provided.
Materials: The SLF20 model is made of galvanized steel, while the SLX20 model is made of stainless steel.
Weight: The SLF20 weighs 11.1 kg, and the SLX20 weighs 11.5 kg.

Applications

The accessories are designed as a mounting kit for load cells model CFX/CRX.

Additional Model - KS20

Movement: Allows side movement in all directions up to 25 mm, accommodating lateral constraints and thermal expansion.
Construction: Made of stainless steel, the kit weighs 13 kg.
Applications: Suitable for mounting compression load cells.

General Information

Dimensions are provided in millimeters with a tolerance of ±1.
Technical improvements may lead to changes in specifications without prior notice.
The document was issued in June 2007 and the quality system is certified ISO 9001:2000.

Catalog excerpts

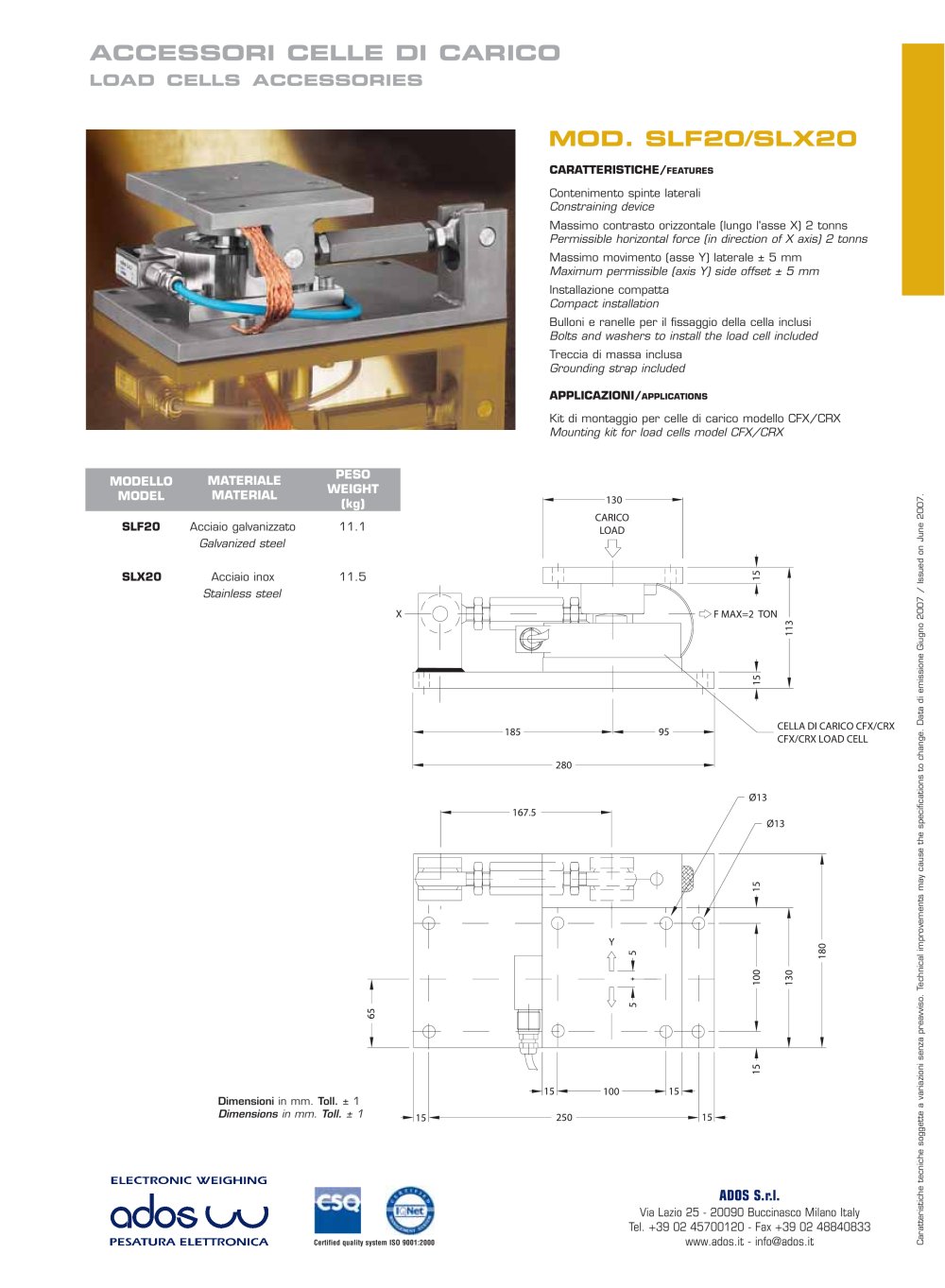

CARATTERISTICHE/ > FEATURES Contenimento spinte laterali Constraining device Massimo contrasto orizzontale (lungo l'asse X) 2 tonns Permissible horizontal force (in direction of X axis) 2 tonns Massimo movimento (asse Y) laterale 5 mm Maximum permissible (axis Y) side offset ѱ5 mm Installazione compatta Compact installation Bulloni e ranelle per il fissaggio della cella inclusi Bolts and washers to install the load cell included Treccia di massa inclusa Grounding strap included APPLICAZIONI/ > APPLICATIONS Kit di montaggio per celle di carico modello CFX/CRX Mounting kit for load cells model CFX/CRX > SLF20SLX20 Acciaio galvanizzato 11.111.5 Galvanized steel Acciaio inox Stainless steel > Dimensioni inmm. Toll. 1 Dimensions inmm. Toll. ѱ1 Certified quality system ISO 9001:2000 Caratteristiche tecniche soggette a variazioni senza preavviso. Technical improvements may cause the specifications to change. Data di emissione Giugno 2007 / Issued on June 2007. size="-4">
