ADOS
LOAD CELLS ACCESSORIES KLF

LOAD CELLS ACCESSORIES KLF

Product catalog summary

Overview
This document provides technical specifications and applications for two models of load cell accessories, MOD. KAF and MOD. KLF, manufactured by ADOS S.r.l. Both models are designed for use with load cells model CEX and feature compact installation, galvanized steel construction, and include a grounding strap. The document was issued in June 2007 and the company is ISO 9001:2000 certified.

MOD. KAF Features

Lift-off securing device with a maximum permissible lift-off force of 5 tons.
Compact installation design.
Kit weight is 5.1 kg.

MOD. KLF Features

Constraining device for lateral forces with a maximum permissible horizontal force of 1.5 tons along the X-axis.
Allows a maximum side offset of ± 3 mm along the Y-axis.
Compact installation design.
Kit weight is 5.1 kg.

Applications
Both models are intended as mounting kits for load cells model CEX.

Additional Information
Dimensions are provided in millimeters with a tolerance of ± 1. Technical improvements may lead to changes in specifications without prior notice.

Catalog excerpts

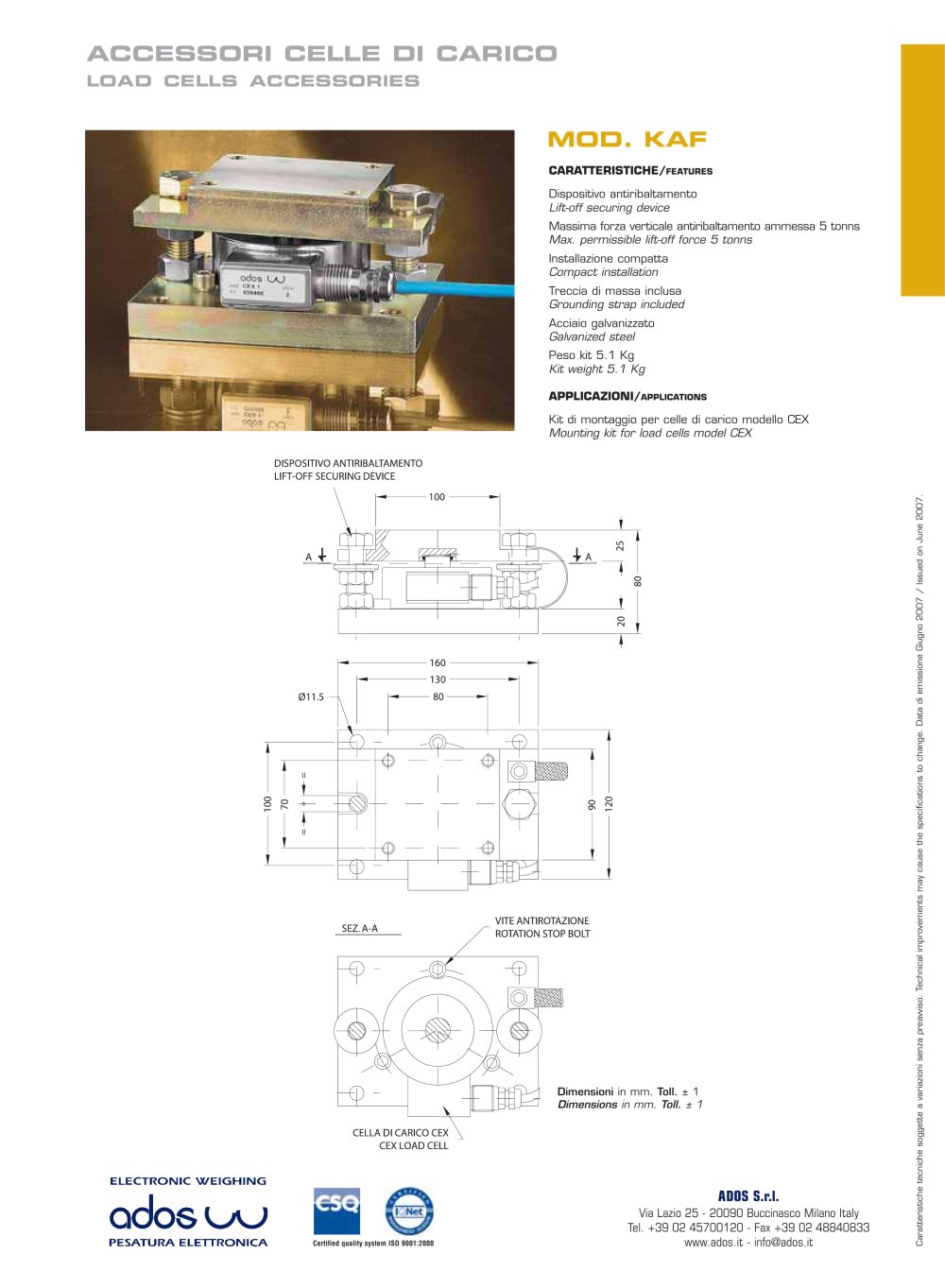

CARATTERISTICHE/ > FEATURES Dispositivo antiribaltamento Lift-off securing device Massima forza verticale antiribaltamento ammessa 5 tonns Max. permissible lift-off force 5 tonns Installazione compatta Compact installation Treccia di massa inclusa Grounding strap included Acciaio galvanizzato Galvanized steel Peso kit 5.1 Kg Kit weight 5.1 Kg APPLICAZIONI/ > APPLICATIONS Kit di montaggio per celle di carico modello CEX Mounting kit for load cells model CEX > Dimensioni inmm. Toll. 1 Dimensions inmm. Toll. ѱ1 Certified quality system ISO 9001:2000 Caratteristiche tecniche soggette a variazioni senza preavviso. Technical improvements may cause the specifications to change. Data di emissione Giugno 2007 / Issued on June 2007. size="-4">

Open the catalog to page 1

CARATTERISTICHE/ > FEATURES Contenimento spinte laterali Constraining device Massimo contrasto orizzontale (lungo l'asse X) 1,5 tonns Permissible horizontal force (in direction of X axis) 1,5 tonns Massimo movimento (asse Y) laterale 3 mm Maximum permissible (axis Y) side offset ѱ3 mm Installazione compatta Compact installation Treccia di massa inclusa Grounding strap included Acciaio galvanizzato Galvanized steel Peso kit 5.1 Kg Kit weight 5.1 Kg APPLICAZIONI/ > APPLICATIONS Kit di montaggio per celle di carico modello CEX Mounting kit for load cells model CEX > Dimensioni inmm. Toll. 1 Dimensions...

Open the catalog to page 2
