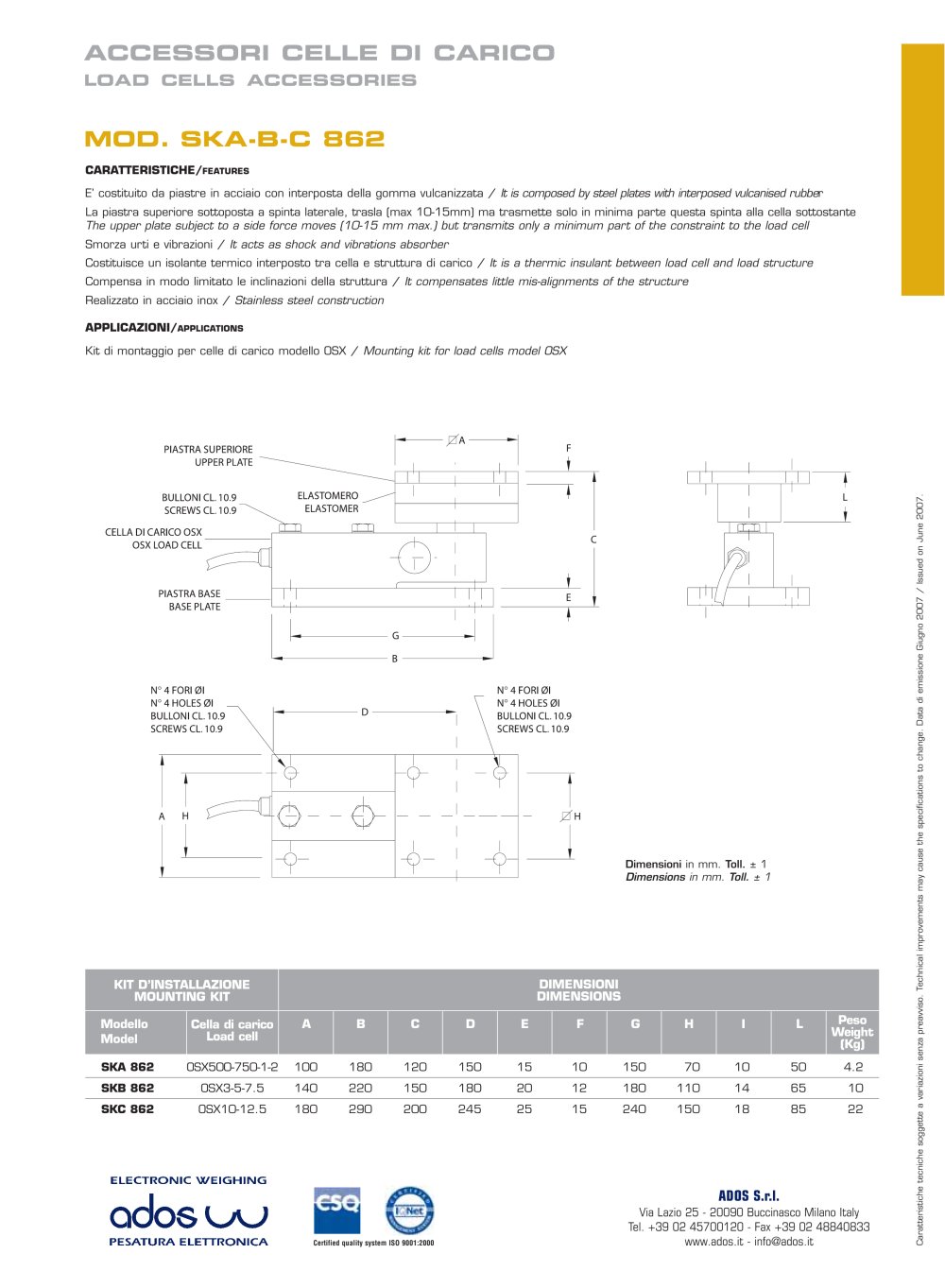

LOAD CELLS ACCESSORIES 862
Product catalog summary
Features
- The accessory is composed of steel plates with vulcanised rubber in between.
- The upper plate can move laterally (maximum 10-15 mm) but transmits minimal force to the underlying load cell.
- It acts as a shock and vibration absorber.
- Serves as a thermal insulator between the load cell and the load structure.
- Compensates for minor misalignments in the structure.
- Constructed from stainless steel.
Applications
- Used as a mounting kit for load cells model OSX.
Dimensions
Dimensions are provided in millimeters with a tolerance of ±1. The models SKA 862, SKB 862, and SKC 862 have specific dimensions for different load cell models (OSX500-750-1-2, OSX3-5-7.5, OSX10-12.5).
Additional Information
- Technical improvements may cause specifications to change without notice.
- Issued in June 2007.
- Certified quality system ISO 9001:2000.
