Product catalog summary

Platform and Pallet Truck Scale Overview

1. General Features
The document describes various models of platform and pallet truck scales offered by ADOS S.r.l., suitable for industrial weighing applications. These scales are available in both painted carbon steel and stainless steel, catering to different environmental conditions, including wet and hazardous areas.

2. Platform Scales (Model PTS)
- Constructed from tubular steel, available in painted or stainless steel.
- Standard version includes an IP67 off-center load cell, with an IP68 option available.
- Weighing capacities range from 3 kg to over 10,000 kg.
- Custom dimensions and capacities are available.
- Special versions are designed for explosive environments.

3. Pallet Truck Scales (Model TP)
- Integrated electronic weighing system.
- Capacities range from 600 kg to 2500 kg.
- Constructed with a painted carbon steel structure, with a stainless steel option.
- Features rubber steering wheels and Vulkolan double loading rollers.
- Fork dimensions: 1170 x 550 x 85 mm.
- Battery-powered with approximately 40 hours of autonomy, charger included.
- Explosion-proof versions are available.

4. Platform Scales (Model PT4)
- Built with welded tubular sheet steel and a removable load deck.
- Equipped with four IP67 load cells.
- Available in over-floor or under-floor versions.
- Standard cable length of 5 meters.

5. Platform Scales (Model PP)
- Designed for weighing goods on pallets.
- Compact and lightweight, equipped with wheels and a handle for easy mobility.
- Standard dimensions: 1260 x 820 x 85 mm.
- Capacities available: 600 kg, 1500 kg, and 3000 kg.

6. Technical Specifications
- The document includes detailed tables listing model dimensions, capacities, and readability in both kg and g.
- Specifications are subject to change without notice.

7. Certification
- ADOS S.r.l. is an ISO 9001 certified company, ensuring quality and reliability in their products.

Catalog excerpts

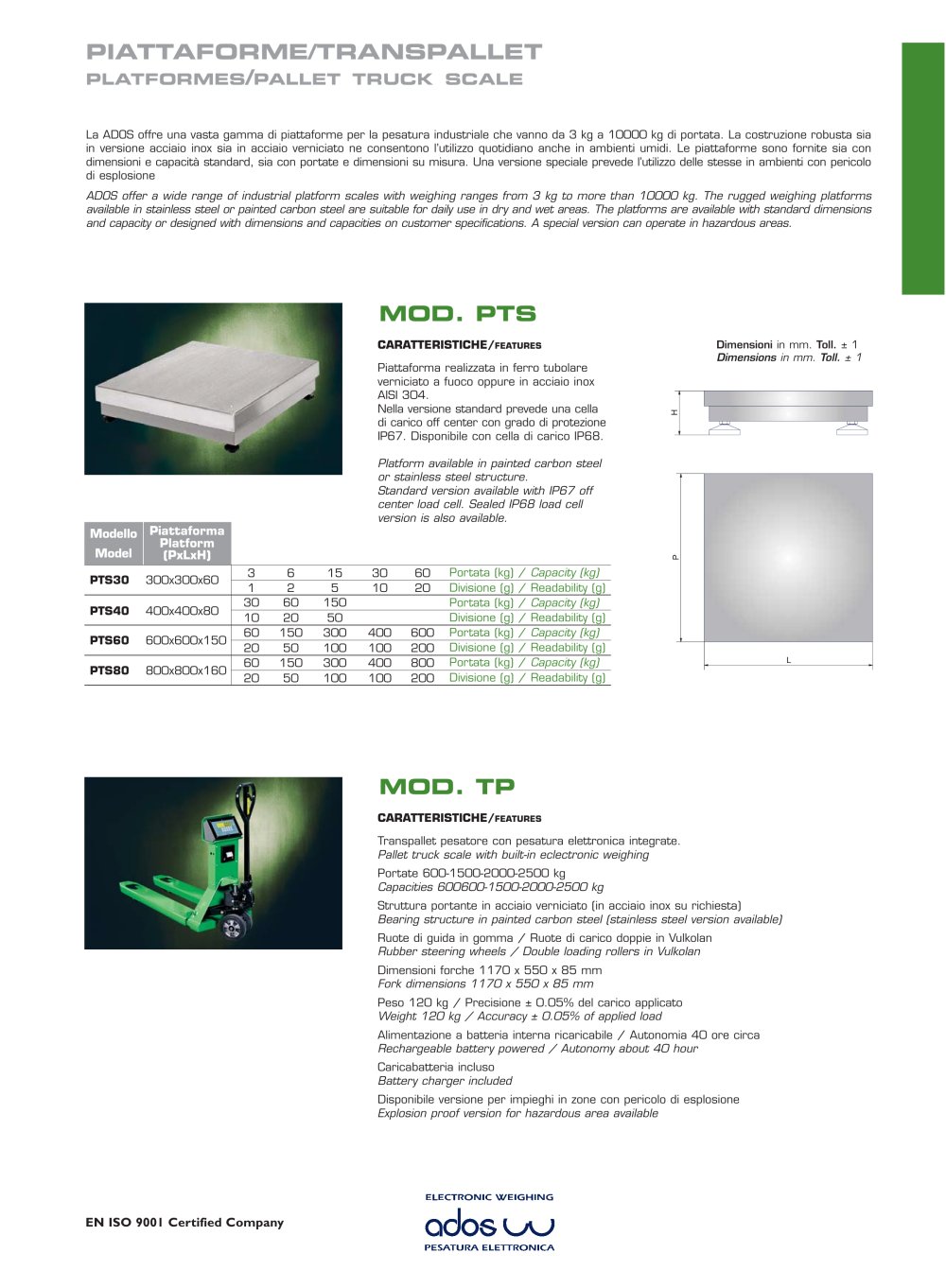

La ADOS offre una vasta gamma di piattaforme per la pesatura industriale che vanno da 3 kg a 10000 kg di portata. La costruzione robusta siain versione acciaio inox sia in acciaio verniciato ne consentono lutilizzo quotidiano anche in ambienti umidi. Le piattaforme sono fornite sia condimensioni e capacitҠ standard, sia con portate e dimensioni su misura. Una versione speciale prevede lutilizzo delle stesse in ambienti con pericolodi esplosione ADOS offer a wide range of industrial platform scales with weighing ranges from 3 kg to more than 10000 kg. The rugged weighing platformsavailable in stainless steel or painted carbon steel are suitable for daily use in dry and wet areas. The platforms are available with standard dimensionsand capacity or designed with dimensions and capacities on customer specifications. A special version can operate in hazardous areas. > CARATTERISTICHE/ > FEATURES Dimensioni inmm. Toll. ұ1 Platform available in painted carbon steel or stainless steel structure. Standard version available with IP67 off center load cell. Sealed IP68 load cell version is also available. > Dimensions inmm. Toll. 1 Piattaforma realizzata in ferro tubolare verniciato a fuoco oppure in acciaio inox AISI 304. Nella versione standard prevede una cella di carico off center con grado di protezione IP67.Disponibile con cella di carico IP68. > PTS30 300x300x6031 Capacity (kg) Divisione (g) / Readability (g)600200800200 PTS40 400x400x803010 Capacity (kg) Divisione (g) / Readability (g)Portata (kg) / PTS60 600x600x1506020 Capacity (kg) Divisione (g) / Readability (g)Portata (kg) / PTS80 800x800x160 6020626020150501505015515050Portata (kg) / Capacity (kg) Divisione (g) / Readability (g)30010030010030104001004001006020Portata (kg) / > CARATTERISTICHE/ > FEATURES Transpallet pesatore con pesatura elettronica integrate. Pallet truck scale with built-in eclectronic weighing Portate 600-1500-2000-2500 kg Capacities 600600-1500-2000-2500 kg Struttura portante in acciaio verniciato (in acciaio inox su richiesta) Bearing structure in painted carbon steel (stainless steel version available) Ruote di guida in gomma / Ruote di carico doppie in Vulkolan Rubber steering wheels / Double loading rollers in Vulkolan Dimensioni forche 1170 x 550 x 85 mm Fork dimensions 1170 x 550 x 85 mm Peso 120 kg / Precisione ѱ0.05% del carico applicato Weight 120 kg / Accuracy 0.05% of applied load Alimentazione a batteria interna ricaricabile / Autonomia 40 ore circa Rechargeable battery powered / Autonomy about 40 hour Caricabatteria incluso Battery charger included Disponibile versione per impieghi in zone con pericolo di esplosione Explosion proof version for hazardous area available >
