END USER PRODUCTS HANGING SCALE D150E

END USER PRODUCTS HANGING SCALE D150E

Product catalog summary

Overview: The D150E is a high-quality hanging scale designed for industrial use, featuring battery operation, an LCD display, and an infrared remote control. It is certified under EN ISO 9001 and built with a rugged aluminum alloy construction.

Specifications:

Power: Operates on 4 standard AA 1.5 V batteries, with an autonomy of approximately 80 hours using 2.3 Ah Ni-Mh batteries.
Display: 5 LCD digits, 1 inch (25.4 mm) in size.
Operating Temperature: -10 to +40 °C.
Safety Factor: 5:1.
Accuracy: 0.1 Emax.

Models and Capacities:

D150E-1: 1000 Kg capacity, 0.5 Kg resolution.
D150E-3: 3200 Kg capacity, 1 Kg resolution.
D150E-6: 6500 Kg capacity, 2 Kg resolution.
D150E-12: 12000 Kg capacity, 5 Kg resolution.

Features:

Infrared remote control with a range of approximately 20 meters.
LPD wireless radio transmission at 869.87 MHz, no licensing required.
Remote unit for reading and printing scale values.

Compliance and Approvals:

EN 60 950: Safety of information technology equipment.
EMC Test Report ARSF00013/e and RADIO Test Report ARSF00013/r issued by IMQ S.p.A.
R&TTE Directive 99/5/CE for radio equipment and telecommunications.
EN 300 220-3 and EN 301 489-3 for electromagnetic compatibility.
EMC Directive 89 336/EC and Machinery Directive 98/37/EC for essential safety requirements.

Dimensions: Detailed dimensions are provided for each model, with tolerances of ±1 mm.

Additional Information: The scale includes an infrared remote control and shackles for models up to 6.5 Ton. Technical improvements may alter specifications without prior notice.

Catalog excerpts

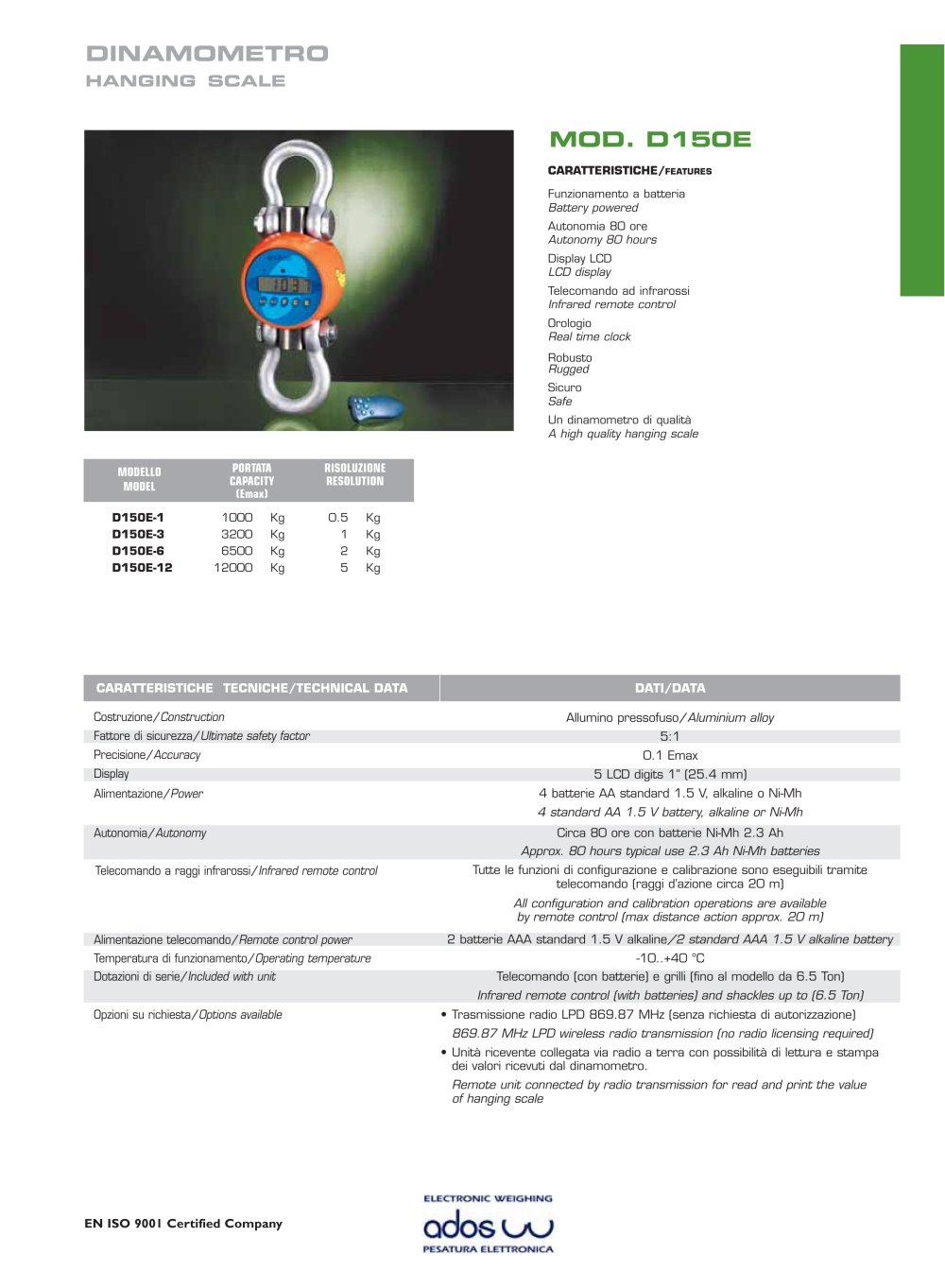

CARATTERISTICHE/ FEATURES Funzionamento a batteria Battery powered Autonomia 80 ore Autonomy 80 hours Display LCD LCD display Telecomando ad infrarossi Infrared remote control Orologio Real time clock Robusto Rugged Sicuro Safe Un dinamometro di qualit A high quality hanging scale 1000Kg3200Kg 6500Kg12000Kg MODELLOMODELPORTATACAPACITY(Emax) RISOLUZIONERESOLUTION > D150E-1D150E-3 D150E-6 D150E-12 0.5Kg1Kg 2Kg 5Kg CARATTERISTICHE TECNICHE/TECHNICAL DATA DATI/DATA Costruzione/ Construction Allumino pressofuso/ Aluminium alloy Fattore di sicurezza/ Ultimate safety factor 5:10.1 Emax5 LCD digits 1 (25.4 mm)4 batterie AA standard 1.5 V, alkaline o Ni-Mh Precisione/ Accuracy DisplayAlimentazione/ Power 4 standard AA 1.5 V battery, alkaline or Ni-Mh Autonomia/ Autonomy Circa 80 ore con batterie Ni-Mh 2.3 Ah Approx. 80 hours typical use 2.3 Ah Ni-Mh batteries Telecomando a raggi infrarossi/ Infrared remote control Tutte le funzioni di configurazione e calibrazione sono eseguibili tramite telecomando (raggi dԒazione circa 20 m) All configuration and calibration operations are available by remote control (max distance action approx. 20 m) Alimentazione telecomando/ Remote control power 2 batterie AAA standard 1.5 V alkaline /2 standard AAA 1.5 V alkaline battery Temperatura di funzionamento/ Operating temperature -10..+40 CTelecomando (con batterie) e grilli (fino al modello da 6.5 Ton) Dotazioni di serie/ Included with unit Infrared remote control (with batteries) and shackles up to (6.5 Ton) Opzioni su richiesta/ Options available ЕTrasmissione radio LPD 869.87 MHz (senza richiesta di autorizzazione) 869.87 MHz LPD wireless radio transmission (no radio licensing required) Unitՠ ricevente collegata via radio a terra con possibilit di lettura e stampa dei valori ricevuti dal dinamometro. Remote unit connected by radio transmission for read and print the value of hanging scale >
