COMPRESSION CEX
1 / 2 PagesView full catalog

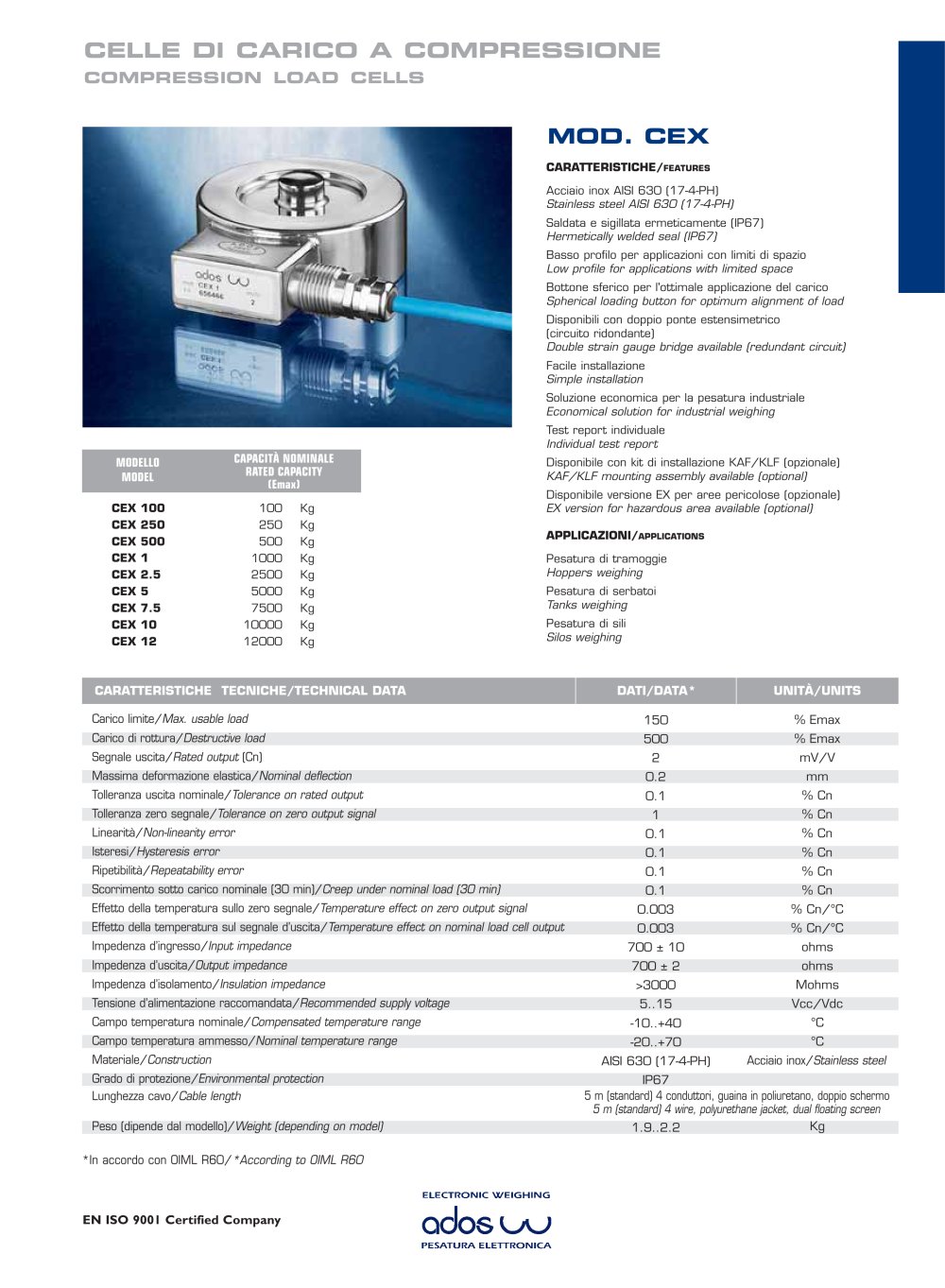

COMPRESSION CEX
Product catalog summary
Compression Load Cells - Model CEX
Features:
- Constructed from stainless steel AISI 630 (17-4-PH).
- Hermetically welded seal with IP67 protection.
- Low profile design suitable for space-constrained applications.
- Equipped with a spherical loading button for optimal load alignment.
- Available with a double strain gauge bridge for redundancy.
- Simple installation process.
- Cost-effective solution for industrial weighing applications.
- Each unit comes with an individual test report.
- Optional KAF/KLF mounting assembly and EX version for hazardous areas.
Applications:
- Weighing of hoppers, tanks, and silos.
Technical Specifications:
- Max. usable load and destructive load vary by model, ranging from 100 Kg to 12000 Kg.
- Rated output is 2 mV/V with a nominal deflection of 0.2 mm.
- Various tolerances and errors are specified, including non-linearity, hysteresis, and repeatability errors, all within 0.1% Cn.
- Temperature effects on zero and nominal load cell output are minimal, at 0.003% Cn/°C.
- Input and output impedance are approximately 700 ohms, with insulation impedance greater than 3000 Mohms.
- Recommended supply voltage is between 5 and 15 Vcc/Vdc.
- Compensated temperature range is -10 to +40°C, with a nominal range of -20 to +70°C.
- Standard cable length is 5 meters with a 4-wire polyurethane jacket and dual floating screen.
Additional Information:
- Dimensions are provided with a tolerance of ± 0.5 mm.
- Color coding for wiring is specified for ease of installation.
- Company is ISO 9001:2000 certified.
See more
Catalog excerpts
Dimensioni inmm. Toll. 0.5 Dimensions inmm. Toll. ѱ0.5 +ALIM./ EXC. ROSSO/ RED -ALIM./ EXC. NERO/ BLACK +SEGN./ SIGN. VERDE/ GREEN -SEGN./ SIGN. BIANCO/ WHITE > Caratteristiche tecniche soggette a variazioni senza preavviso. Technical improvements may cause the specifications to change. Data di emissione Giugno 2007 / Issued on June 2007. Certified quality system ISO 9001:2000 Certified quality system ISO 9001:2000 size="-2">
