Compression Load Cells - Model CCX

Features:

Constructed from stainless steel AISI 630 (17-4-PH).
Hermetically welded seal with IP67 protection.
Available in a wide range of capacities.
Each unit comes with an individual test report.
Optional EX version available for hazardous areas.

Applications:

Weighing of tanks.
Use in steel manufacturing plants.
Weighing of high-capacity silos.

Technical Specifications:

Max. usable load and destructive load are specified per model.
Rated output, nominal deflection, and various tolerances are detailed.
Temperature effects on zero and nominal load cell output are provided.
Input and output impedance, insulation impedance, and recommended supply voltage are specified.
Compensated and nominal temperature ranges are given.
Construction material is stainless steel with IP67 environmental protection.
Weight varies depending on the model.

Model Capacities:

Models range from CCX 30 to CCX 625, with capacities from 30 Ton to 625 Ton.

Additional Information:

Standard cable length is 5 meters with a 4-wire polyurethane jacket and dual floating screen.
Dimensions are provided with a tolerance of ± 0.5 mm.
Color coding for connections is specified.

Note: Technical improvements may cause specifications to change. Data issued in September 2004.

Catalog excerpts

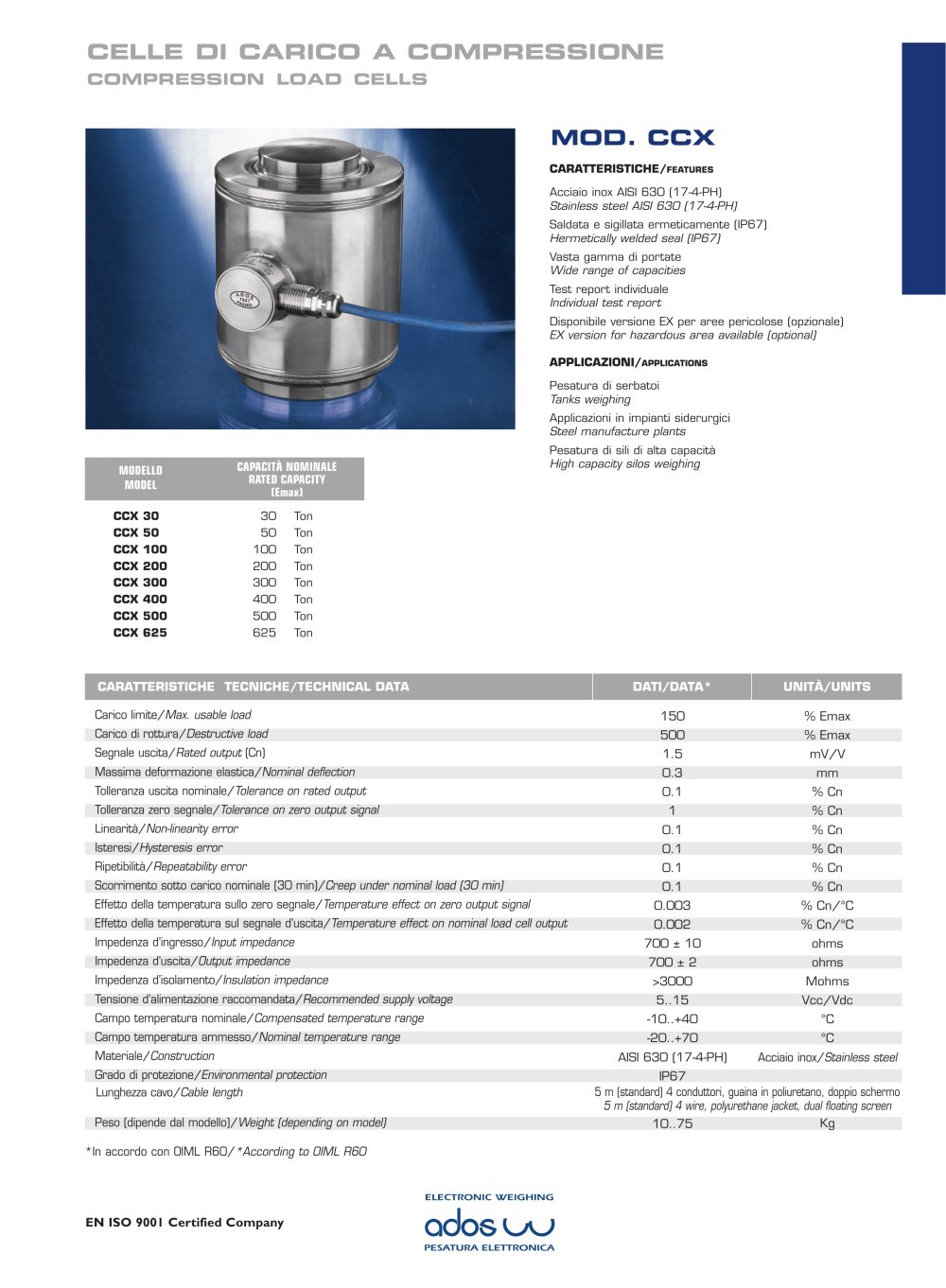

CARATTERISTICHE/ FEATURES Acciaio inox AISI 630 (17-4-PH) Stainless steel AISI 630 (17-4-PH) Saldata e sigillata ermeticamente (IP67) Hermetically welded seal (IP67) Vasta gamma di portate Wide range of capacities Test report individuale Individual test report Disponibile versione EX per aree pericolose (opzionale) EX version for hazardous area available (optional) APPLICAZIONI/ APPLICATIONS 30Ton50Ton100Ton200Ton 300Ton 400Ton500Ton625Ton Pesatura di serbatoi Tanks weighing Applicazioni in impianti siderurgici Steel manufacture plants Pesatura di sili di alta capacit MODELLOMODELCAPACIT NOMINALERATED CAPACITY(Emax) > High capacity silos weighing CCX 30CCX 50 CCX 100 CCX 200CCX 300CCX 400 CCX 500 CCX 625 CARATTERISTICHE TECNICHE/TECHNICAL DATA DATI/DATA*UNIT/UNITS Carico limite/ Max. usable load 1505001.5 0.3 0.110.1 0.1 0.1 0.10.003 0.002700 10700 ѱ2>30005..15-10..+40 -20..+70AISI 630 (17-4-PH) IP6710..75 % Emax% EmaxmV/Vmm% Cn % Cn % Cn % Cn % Cn % Cn% Cn/C % Cn/аCohms ohmsMohmsVcc/VdcC аC Carico di rottura/ Destructive load Segnale uscita/ Rated output (Cn)Massima deformazione elastica/ Nominal deflection Tolleranza uscita nominale/ Tolerance on rated output Tolleranza zero segnale/ Tolerance on zero output signal Linearit/ Non-linearity error Isteresi/ Hysteresis error Ripetibilit/ Repeatability error Scorrimento sotto carico nominale (30 min)/ Creep under nominal load (30 min) Effetto della temperatura sullo zero segnale/ Temperature effect on zero output signal Effetto della temperatura sul segnale dࠒuscita/ Temperature effect on nominal load cell output Impedenza dingresso/ Input impedance Impedenza dҒuscita/ Output impedance Impedenza disolamento/ Insulation impedance Tensione dҒalimentazione raccomandata/ Recommended supply voltage Campo temperatura nominale/ Compensated temperature range Campo temperatura ammesso/ Nominal temperature range Materiale/ Construction Acciaio inox/ Stainless steel Grado di protezione/ Environmental protection Lunghezza cavo/ Cable length 5 m (standard) 4 conduttori, guaina in poliuretano, doppio schermo 5 m (standard) 4 wire, polyurethane jacket, dual floating screen Peso (dipende dal modello)/ Weight (depending on model) Kg *In accordo con OIML R60/ *According to OIML R60 >
