Company and Contact Information

ADOS operates from two locations in Italy: Gravedona (CO) and Buccinasco (MI), providing contact details including telephone, fax, website, and email.

Certifications

The company holds ISO 9001:2000 certification, ensuring quality management standards. Some load cells have optional OIML R60 approval, indicating compliance with international metrology standards.

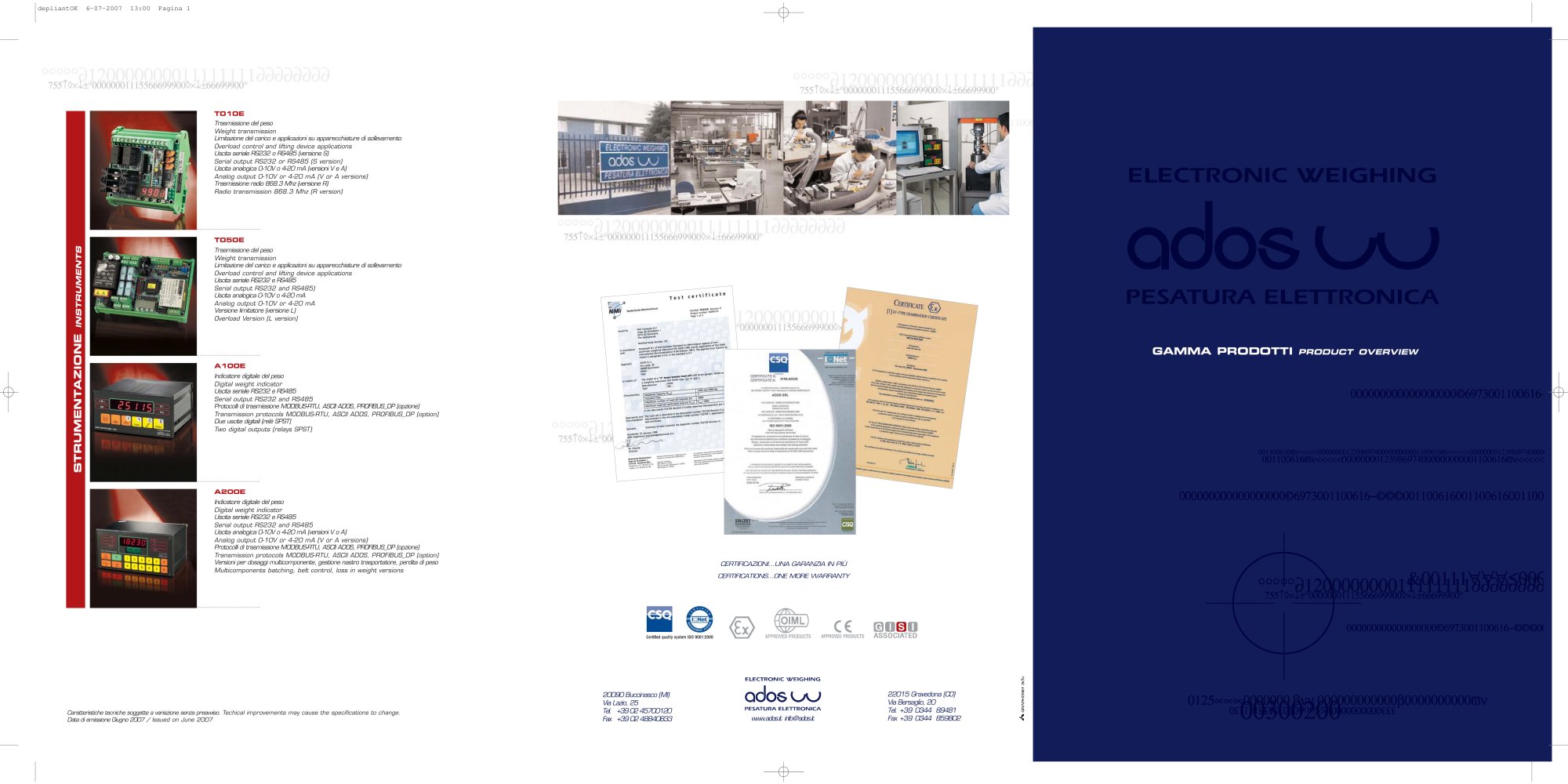

Product Overview

ADOS offers a wide range of weighing instruments, load cells, and accessories designed for industrial applications such as weight transmission, overload control, and lifting device monitoring.

Instruments and Indicators

• T010E and T050E: Weight transmission devices with serial outputs (RS232/RS485), analog outputs (0-10V or 4-20 mA), and radio transmission options. T050E includes overload control and supports MODBUS-RTU, ASCII ADOS, and optional PROFIBUS_DP protocols.
• A100E and A200E: Digital weight indicators with serial and analog outputs, supporting multiple transmission protocols and specialized versions for multicomponent batching, belt control, and loss-in-weight applications.

Load Cells and Accessories

Load cells are categorized by capacity, profile, material, accuracy, and protection rating. Key features include stainless steel construction (AISI 630), IP ratings from IP45 to IP67, and availability of explosion-proof (EX) versions.

• Low Capacity Cells: Platform size up to 400x400 mm, accuracy 0.2% Cn, capacities from 5 to 75 kg.
• Low Profile Cells (BP, OSX, CEX, CCX): Stainless steel, accuracies ranging from 0.03% to 0.1% Cn, capacities from 100 kg up to 12,500 kg, with EX versions available.
• High Capacity Cells (CFX/CRX, TBX/TSX, TCC): Capacities from 10 t to 625 t, accuracy 0.1% Cn, stainless steel construction, high overload capacity, and EX versions.
• Custom Designed Cells (TCA): Designed per customer specifications, capacity range 0.1 to 300 t, operating temperature up to 200 °C, hermetically sealed stainless steel construction.

Accessories

• Nickeled steel bodies with stainless steel bellows, OIML R60 C3 approval for models 75 to 300 kg, accuracy 0.03% Cn, IP67 protection.
• Various accessory models including KAF, KLF, SLF20/SLX20, KEF, KOF/KOX, KSB, KTF/KTX.

End User Products

• Load Monitoring Systems: For vehicles, elevators, cranes, and steel structure strain monitoring.
• SAF and LMTX: High brightness LED displays (38 mm), accuracy 0.03% Emax, with remote control and rotating hook.
• D110E and D150E: LCD displays, accuracy 0.1% Emax, remote control included, optional radio transmission (LPD 869.87 MHz), and ATEX certified versions.
• Transpallet Weighing Scales (D150E): Capacity 2000 kg, stainless steel and ATEX options.
• Platform Scales (TRANS, PT): Custom sizes, wide capacity range, optional ATEX certification.
• Radio Devices: Battery powered, SRD classified for load monitoring and overload control.

Technical Notes and Recommendations

• Specifications are subject to change without notice due to technical improvements.
• Accuracy is expressed as a percentage of rated output (Cn or Emax) depending on the model.
• Explosion-proof (EX) versions are available for many products, suitable for hazardous environments.
• Products feature various communication protocols including MODBUS-RTU, ASCII ADOS, PROFIBUS_DP, and serial interfaces RS232/RS485.

Summary

ADOS provides a comprehensive range of industrial weighing and load monitoring solutions, including load cells, digital indicators, and accessories. Their products cater to diverse applications requiring high accuracy, robust construction, and compliance with international standards. The availability of explosion-proof versions and multiple communication protocols enhances their suitability for demanding industrial environments.
