RG 399 | Flue Gas Analyser

Product catalog summary

Overview
The RG 399 Flue Gas Analyser by ADOS GmbH is designed for monitoring exhaust and process gases, particularly those containing corrosive gases or dust. It features a self-regenerating double-filter system for gas preparation.

Applications

Supervision of flue gases and boiler installations
Monitoring of process and exhaust gases
Adaptable for various measurement sensors

Features

Pre-cleaning of test gas to extend sensor life
Application-specific gas conditioning with various filter media
Automatic filter regeneration
Suction system for hot gas monitoring
Integrated flow control and colored LC-Display for status recognition
Menu-assisted operation with two keys
Three adjustable alarm levels and floating alarm outputs
Serial output options (RS 232 or RS 485) and 4–20 mA current interface
Available in different housing designs, including 19" rack and wall-mounting
High service reliability and low power consumption
Optional un-interruptible power supply (UPS)

Technical Data

Measurable gases include CO2, CO, CH4, O2, and others upon request
Sensor types: Heat reaction, heat conductivity, chemical measurement cell, infrared
Measurement range adjustable by software with accuracy < 2% or < 5% f.s.d.
Operating temperature: -10 °C to +40 °C
Output signals: 4–20 mA, RS 232 or RS 485, 3 alarm relays, 1 fault relay
Power supply options: 230 V, 50Hz or 115 V, 60 Hz
Dimensions: 710 x 600 x 380 mm; Weight: approx. 45 kg

Accessories
Includes protective cover, fine dust filter, extraction pipe, special probe, condensate collector, and gas cooler. Additional accessories available upon request.

Catalog excerpts

ADOS GmbHInstrumentation and Control P.O. Box 500 444 52088 Aachen ׷ FRG Trierer Strasse 23-25 52078 Aachen ׷ FRGTel: +49 (0)2 41 / 97 69 - 0Fax: +49 (0)2 41 / 97 69 - 16 E-Mail: [email protected] www.ados.de >

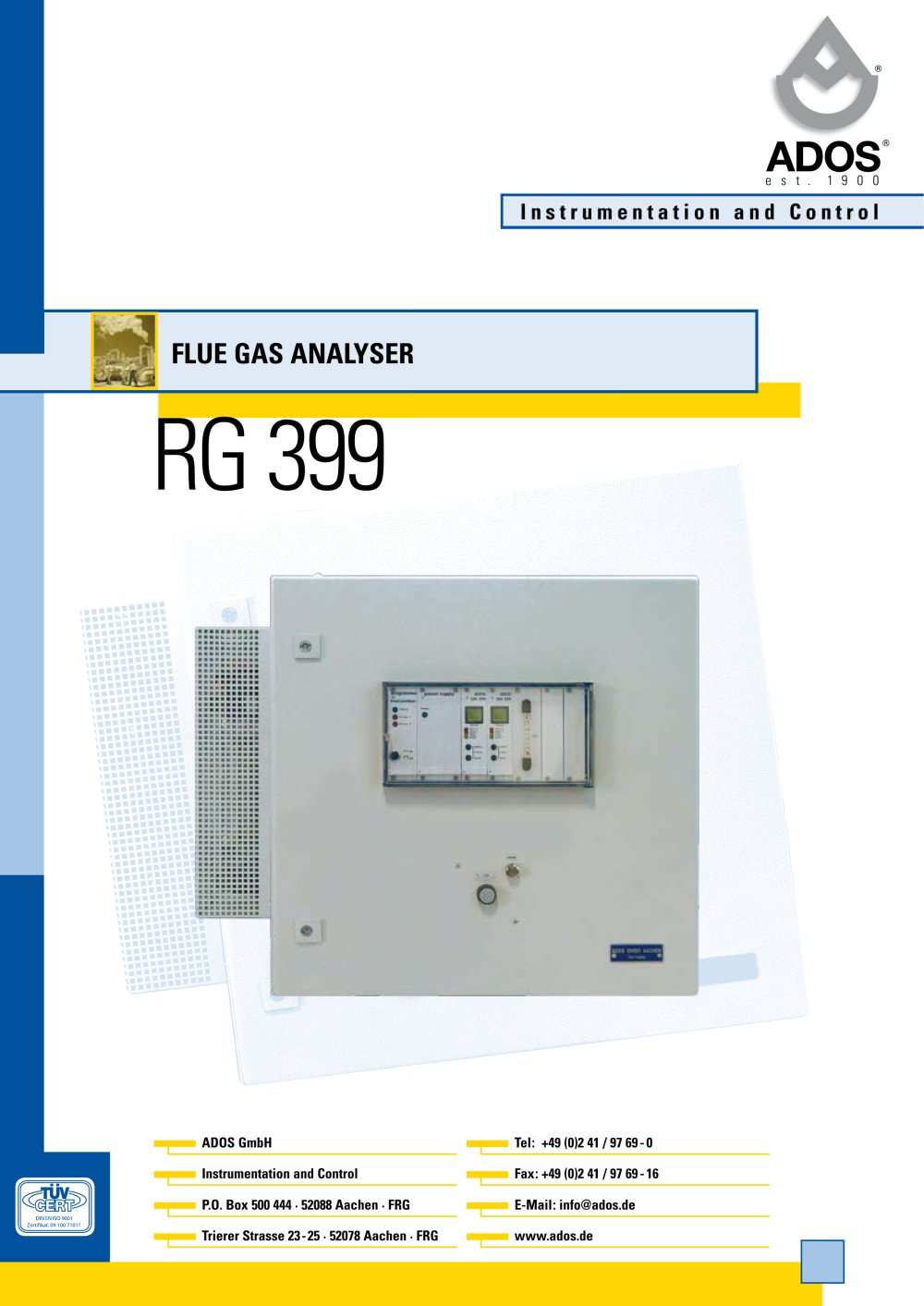

Open the catalog to page 1

The flue gas analyser RG 399 is suitable for supervising exhaust and process gases that contain traces of corrosive gas and /or dust. The gas preparation before analysing, is achieved by way of a double-filter that is self-regenerating. Gas extraction with protective cover, test gas connection with fine dust filter, gas extraction pipe, special extraction probe, installation connection pieces, condensate collector with mounting plate, sampled gas cooler with single or double cooling system. Further accessories can be offered on request, according to the intended measurement task. > O Supervision...

Open the catalog to page 2
