LON®Center 2000

Product catalog summary

Overview: The ADOS LON® Center 2000 is a sophisticated test, control, and warning unit designed for gas sensor technology. It continuously monitors ambient air to provide early warnings of dangerous gases and vapors, both explosive and non-combustible. The system is compatible with various sensor types via the LON® field-bus.

Technical Specifications:

Sensors: Utilizes LON® 4-wire techniques, galvanically isolated, with a data transfer rate of 78 kB/s and a 24V sensor supply.
Digital Inputs/Outputs: Includes opto-isolated inputs and floating control outputs with a maximum of 230 V 2A for control and 230 V 4A for warning outputs.
Battery Life: Operates for over 10 hours during mains failure, with an optional extension to over 1 hour while retaining all functions.
Standard Output Signals: Features a serial interface RS 232 and an analog output of 4-20 mA.
Environmental Conditions: Operates within an ambient temperature range of -10 °C to +40 °C.
Dimensions: Measures 240 x 160 x 90 mm.
Mains Connection: Compatible with 230 V~ / 50 Hz; 115 V~ / 60 Hz, or optionally 24 V= 50 VA.
Certification: TÜV acceptance test according to VDI 2053, in conjunction with ADOS 592 TOX CO LON®.

Features:

Supports up to 40 different test sensors and monitors up to 5 areas.
Menu-assisted operation with 4 keys and 5 independently adjustable alarm levels.
Indicators for readiness, faults, and gas warnings.
Includes 6 floating alarm outputs for external equipment control.
Equipped with a LON®-Interface and a 4 – 20 mA current interface.
Constructed with a hammer-proof thermoplastic housing for durability.
Offers high operational reliability and low current consumption.
Easy installation with an optional UPS unit available.

Fields of Application: The unit is suitable for various environments including heating systems, garages, tunnels, liquid gas storage rooms, laboratories, cold storage houses, plastic processing plants, chemical industries, and paint manufacturing plants.

Measurable Gases: The system can measure a wide range of gases including Acetylene (C2H2), Ether (C4H10O), Alcohols (e.g., C2H6O), Ammonia (NH3), Butane (C4H10), Chloroform (CHCl3), Hydrogen Chloride (HCI), Helium (He), Carbon Dioxide (CO2), Carbon Monoxide (CO), Methane (CH4), Neon (Ne), Propane (C3H8), Oxygen (O2), Carbon Tetrachloride (CCl4), Toluene (C7H8), Hydrogen (H2), and Xylene (C8H10).

Catalog excerpts

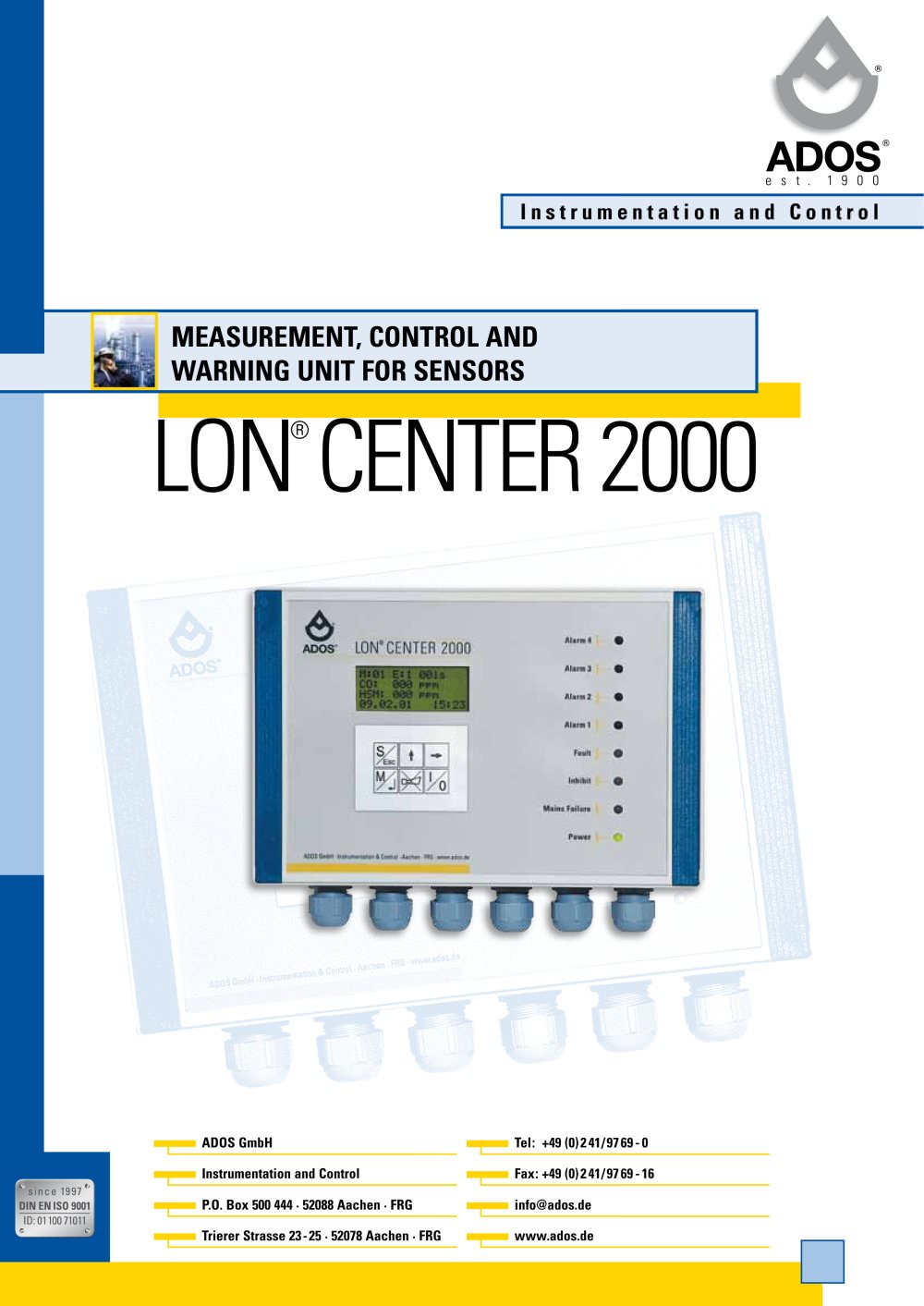

LON® CENTER 2000 I n s t r u m e n t a t i o n a n d C o n t r o l e s t . 1 9 0 0 ADOS GmbH Instrumentation and Control P.O. Box 500 444 · 52088 Aachen · FRG Trierer Strasse 23-25 · 52078 Aachen · FRG Tel: +49 (0) 2 41/97 69 - 0 Fax: +49 (0) 2 41/97 69 - 16 [email protected] www.ados.de Measurement, Control and Warning Unit for Sensors

Open the catalog to page 1

www.neck-heyn.de LON® CENTER 2000 ADOS GmbH Instrumentation and Control e s t . 1 9 0 0 Details as for control unit Sensors: LON® 4-wire techniques, galvanically isolated, data transfer 78 kB/s 24V sensor supply Ranges: adjustable via software Digital inputs: Opto-isolated input with isolated voltage supply (siren cancel, ventilator fault) Digital outputs: Floating Control outputs max. 230 V 2A Warning outputs max. 230 V 4A Battery operating time: >10 hours with mains failure display >1 hour optional, retaining all functions Standard output signals: Serial interface RS 232 Analog output, 4-20...

Open the catalog to page 2
