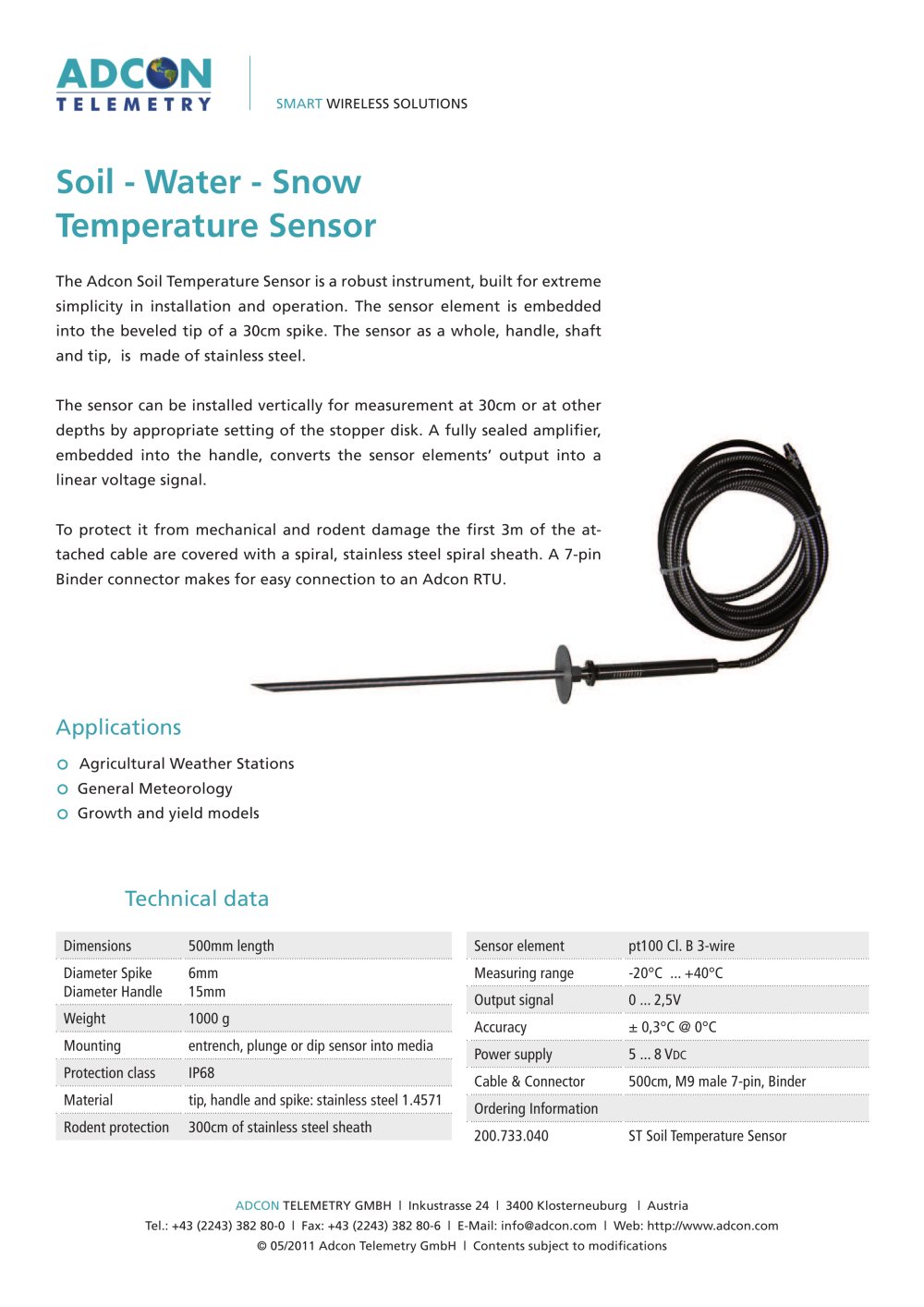

ST Soil Temperature Sensor

Product catalog summary
Overview: The Adcon Soil Temperature Sensor is designed for easy installation and operation, featuring a robust construction suitable for extreme conditions. It is primarily used in agricultural weather stations, general meteorology, and growth and yield models.
Specifications:
  • Dimensions: 500mm length
  • Diameter: Spike - 6mm, Handle - 15mm
  • Weight: 1000g
  • Material: Stainless steel 1.4571 for tip, handle, and spike
  • Protection Class: IP68
  • Rodent Protection: 300cm stainless steel sheath
  • Sensor Element: pt100 Cl. B 3-wire
  • Measuring Range: -20°C to +40°C
  • Output Signal: 0 to 2.5V
  • Accuracy: ± 0.3°C at 0°C
  • Power Supply: 5 to 8 VDC
  • Cable & Connector: 500cm, M9 male 7-pin, Binder
Installation: The sensor can be installed vertically for 30cm depth measurement or adjusted for other depths using a stopper disk. It features a fully sealed amplifier in the handle for converting sensor output to a linear voltage signal.
Protection: The first 3 meters of the cable are protected by a stainless steel spiral sheath to prevent mechanical and rodent damage.
Ordering Information: Model number 200.733.040 ST Soil Temperature Sensor.
Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: http://www.adcon.com
