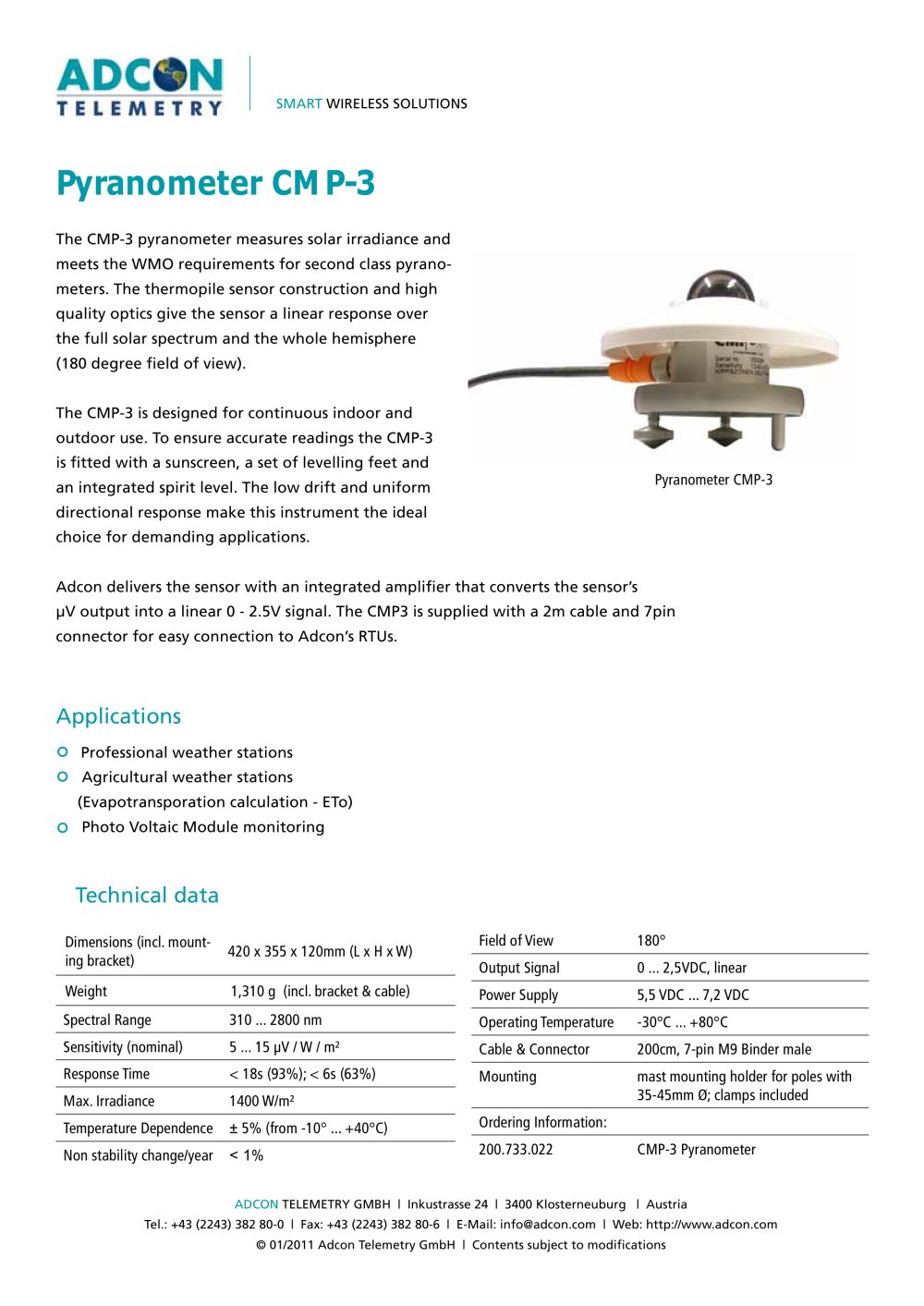

CMP-3
Product catalog summary
Overview: The CMP-3 pyranometer is designed to measure solar irradiance and complies with the World Meteorological Organization (WMO) standards for second-class pyranometers. It features a thermopile sensor and high-quality optics for a linear response across the solar spectrum and a 180-degree field of view.
Design and Features: The CMP-3 is suitable for both indoor and outdoor continuous use. It includes a sunscreen, levelling feet, and an integrated spirit level for accurate readings. The sensor has low drift and uniform directional response, making it ideal for demanding applications.
Technical Specifications:
- Dimensions: 420 x 355 x 120 mm (including mounting bracket)
- Weight: 1,310 g (including bracket and cable)
- Spectral Range: 310 to 2800 nm
- Sensitivity: 5 to 15 µV/W/m²
- Response Time: Less than 18 seconds for 93% response; less than 6 seconds for 63% response
- Maximum Irradiance: 1400 W/m²
- Temperature Dependence: ± 5% from -10°C to +40°C
- Non-stability Change/Year: Less than 1%
- Field of View: 180°
- Output Signal: 0 to 2.5 VDC, linear
- Power Supply: 5.5 VDC to 7.2 VDC
- Operating Temperature: -30°C to +80°C
- Cable & Connector: 200 cm, 7-pin M9 Binder male
Applications: The CMP-3 is used in professional and agricultural weather stations, particularly for evapotranspiration calculations (ETo), and photovoltaic module monitoring.
Ordering Information: The product code for ordering is 200.733.022 CMP-3 Pyranometer.
Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: www.adcon.com
