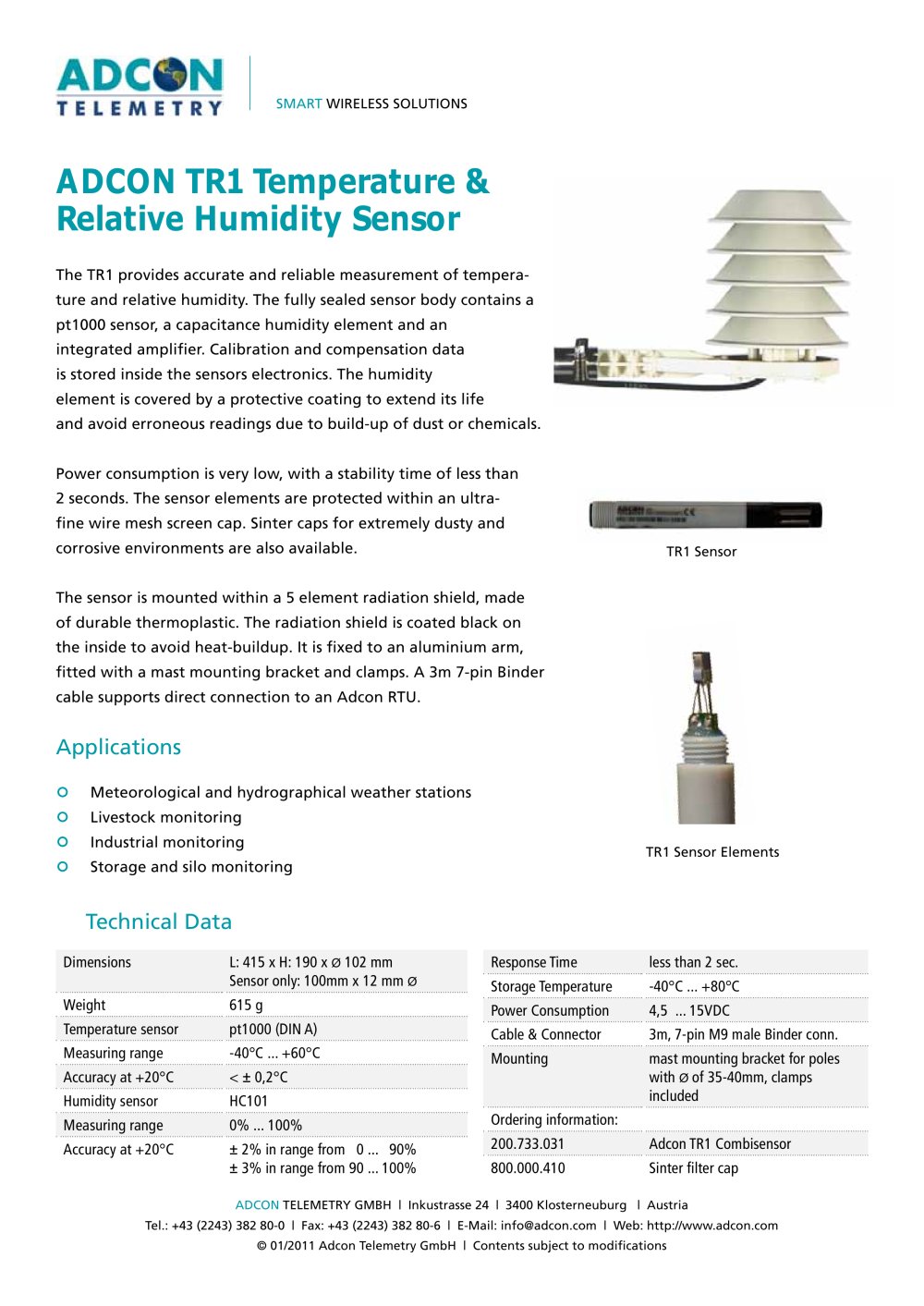

Adcon TR1

Product catalog summary
Overview: The ADCON TR1 is a sensor designed for accurate measurement of temperature and relative humidity. It features a pt1000 temperature sensor, a capacitance humidity element, and an integrated amplifier. Calibration and compensation data are stored within the sensor's electronics.
Design and Protection: The sensor is fully sealed and includes a protective coating over the humidity element to prevent erroneous readings from dust or chemicals. It is housed within a 5-element radiation shield made of durable thermoplastic, coated black inside to prevent heat buildup. The sensor is mounted on an aluminum arm with a mast mounting bracket and clamps.
Technical Specifications:
  • Dimensions: 415 x 190 x Ø 102 mm; Sensor only: 100mm x 12 mm Ø
  • Weight: 615 g
  • Temperature Sensor: pt1000 (DIN A), Range: -40°C to +60°C, Accuracy: < ± 0.2°C at +20°C
  • Humidity Sensor: HC101, Range: 0% to 100%, Accuracy: ± 2% (0-90%), ± 3% (90-100%) at +20°C
  • Response Time: < 2 seconds
  • Storage Temperature: -40°C to +80°C
  • Power Consumption: 4.5 to 15VDC
  • Cable & Connector: 3m, 7-pin M9 male Binder connector
  • Mounting: Suitable for poles with Ø of 35-40mm, clamps included
Applications: The TR1 sensor is suitable for meteorological and hydrographical weather stations, livestock monitoring, industrial monitoring, and storage and silo monitoring.
Ordering Information:
  • 200.733.031 Adcon TR1 Combisensor
  • 800.000.410 Sinter filter cap
Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel.: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: http://www.adcon.com
