Adcon SM1 Soil Moisture Sensor

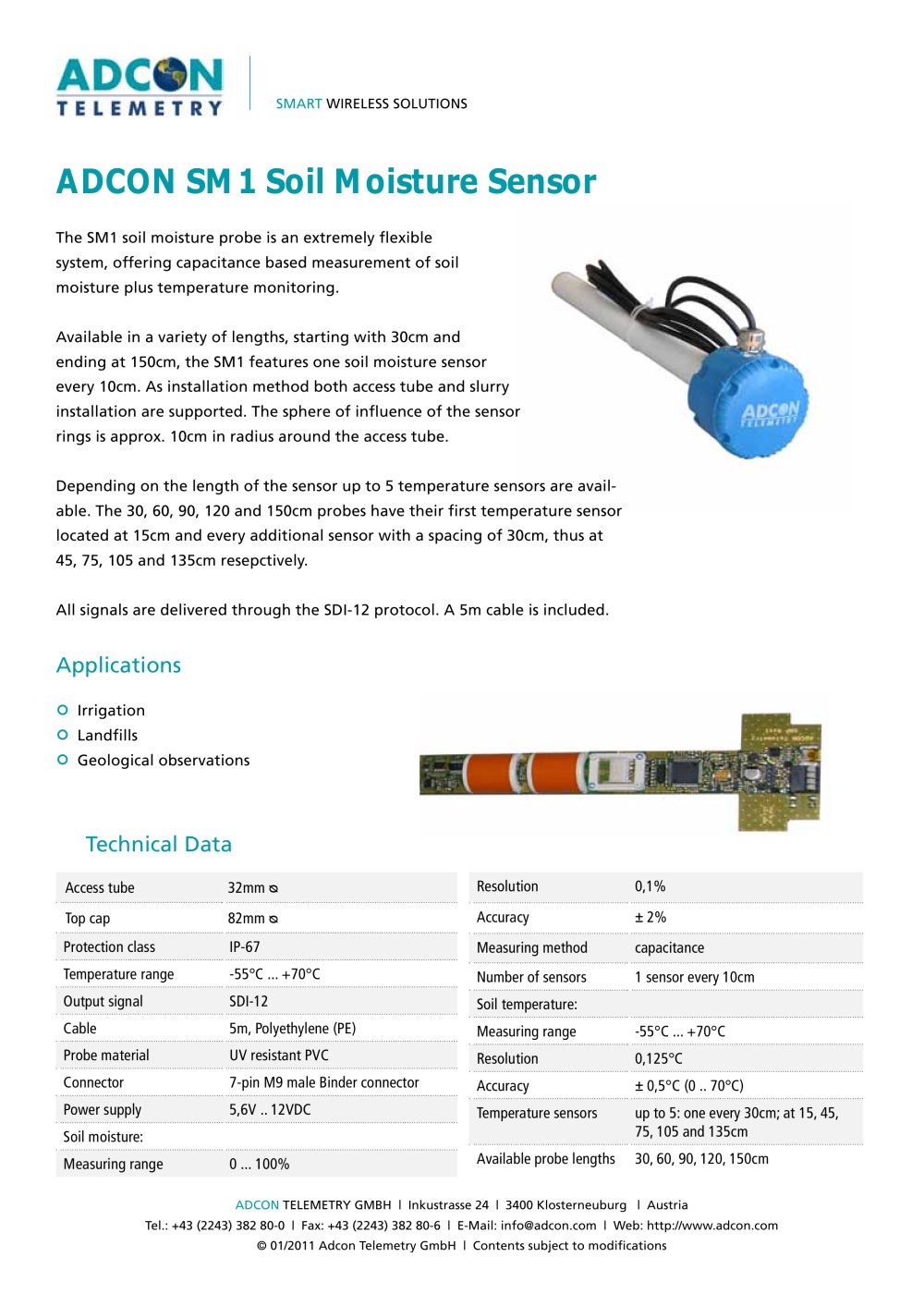

1 / 1 PageView full catalog
Adcon SM1 Soil Moisture Sensor
Product catalog summary
Overview: The ADCON SM1 Soil Moisture Sensor is a versatile tool designed for measuring soil moisture and temperature. It utilizes capacitance-based technology and is available in lengths ranging from 30cm to 150cm, with sensors placed every 10cm.
Specifications:
- Installation: Supports both access tube and slurry installation methods. The sensor's influence extends approximately 10cm in radius around the access tube.
- Temperature Sensors: Depending on the probe length, up to 5 temperature sensors are included, starting at 15cm and spaced every 30cm.
- Output: Uses the SDI-12 protocol for signal delivery, with a 5m polyethylene cable included.
- Protection: Rated IP-67 for protection against dust and water.
- Temperature Range: Operates between -55°C and +70°C.
- Power Supply: Requires 5.6V to 12VDC.
- Material: Constructed from UV-resistant PVC.
- Connector: Features a 7-pin M9 male Binder connector.
Performance:
- Soil Moisture: Measures from 0% to 100% with a resolution of 0.1% and an accuracy of ±2%.
- Soil Temperature: Measures from -55°C to +70°C with a resolution of 0.125°C and an accuracy of ±0.5°C within the range of 0°C to 70°C.
Applications: Suitable for irrigation, landfill monitoring, and geological observations.
Contact Information: ADCON TELEMETRY GMBH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel.: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: www.adcon.com
