Adcon RG1, both models
1 / 1 PageView full catalog

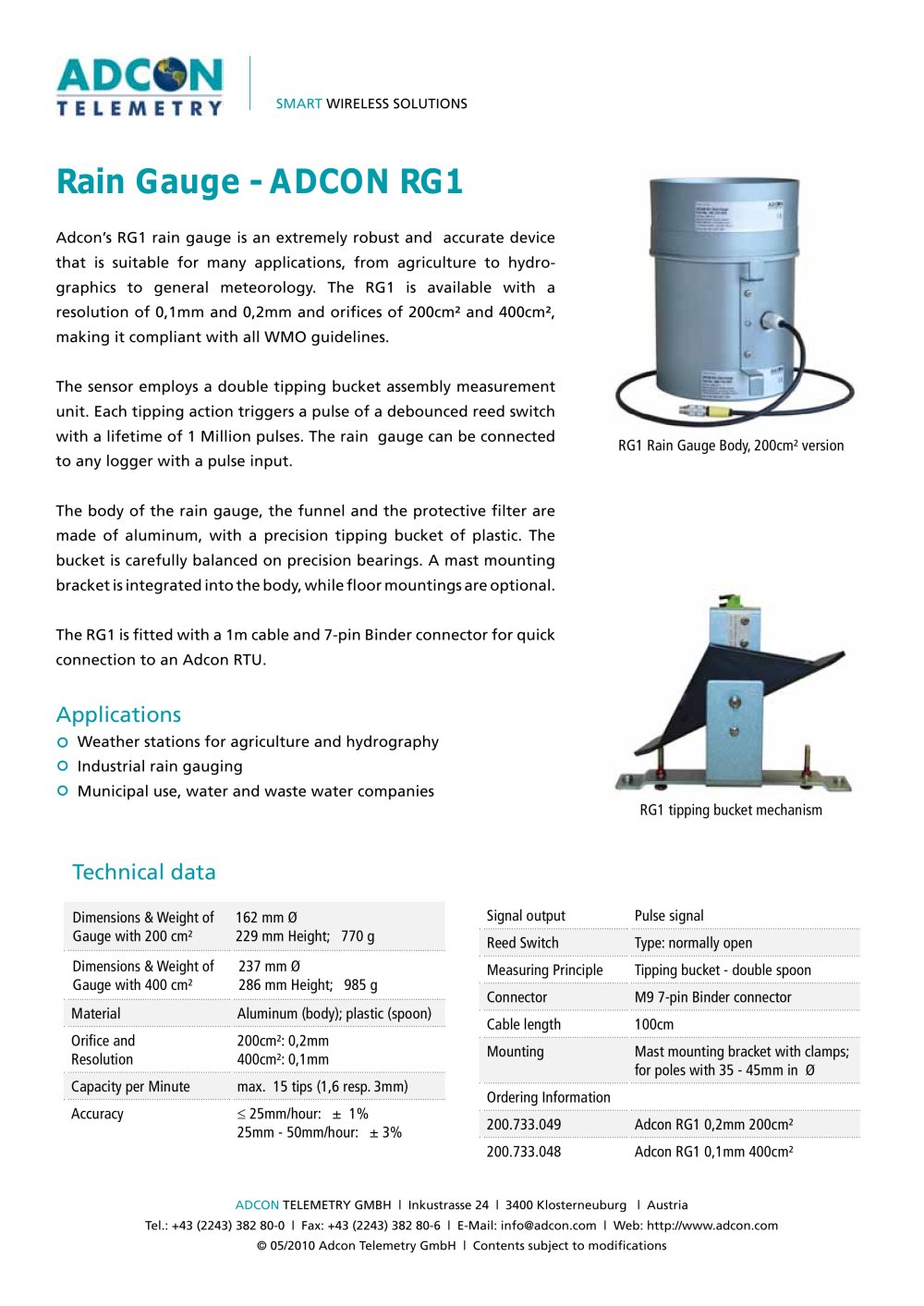

Adcon RG1, both models
Product catalog summary
Overview: The ADCON RG1 rain gauge is a durable and precise instrument designed for various applications including agriculture, hydrographics, and meteorology. It adheres to WMO guidelines and is available in two resolutions: 0.1mm and 0.2mm, with orifice sizes of 200cm² and 400cm².
Specifications:
- Measurement Unit: Double tipping bucket assembly with a debounced reed switch, capable of 1 million pulses.
- Material: Aluminum body and funnel, plastic precision tipping bucket.
- Mounting: Integrated mast mounting bracket; optional floor mountings.
- Connectivity: 1m cable with a 7-pin Binder connector for easy connection to Adcon RTU.
- Dimensions & Weight:
- 200cm² version: 162mm diameter, 229mm height, 770g.
- 400cm² version: 237mm diameter, 286mm height, 985g.
- Accuracy: ±1% for ≤25mm/hour, ±3% for 25mm-50mm/hour.
- Capacity: Maximum 15 tips per minute (1.6mm or 3mm).
Applications: Suitable for weather stations in agriculture and hydrography, industrial rain gauging, and municipal water management.
Ordering Information:
- 200.733.049: Adcon RG1 0.2mm 200cm²
- 200.733.048: Adcon RG1 0.1mm 400cm²
Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel: +43 (2243) 382 80-0, Email: [email protected], Web: http://www.adcon.com
