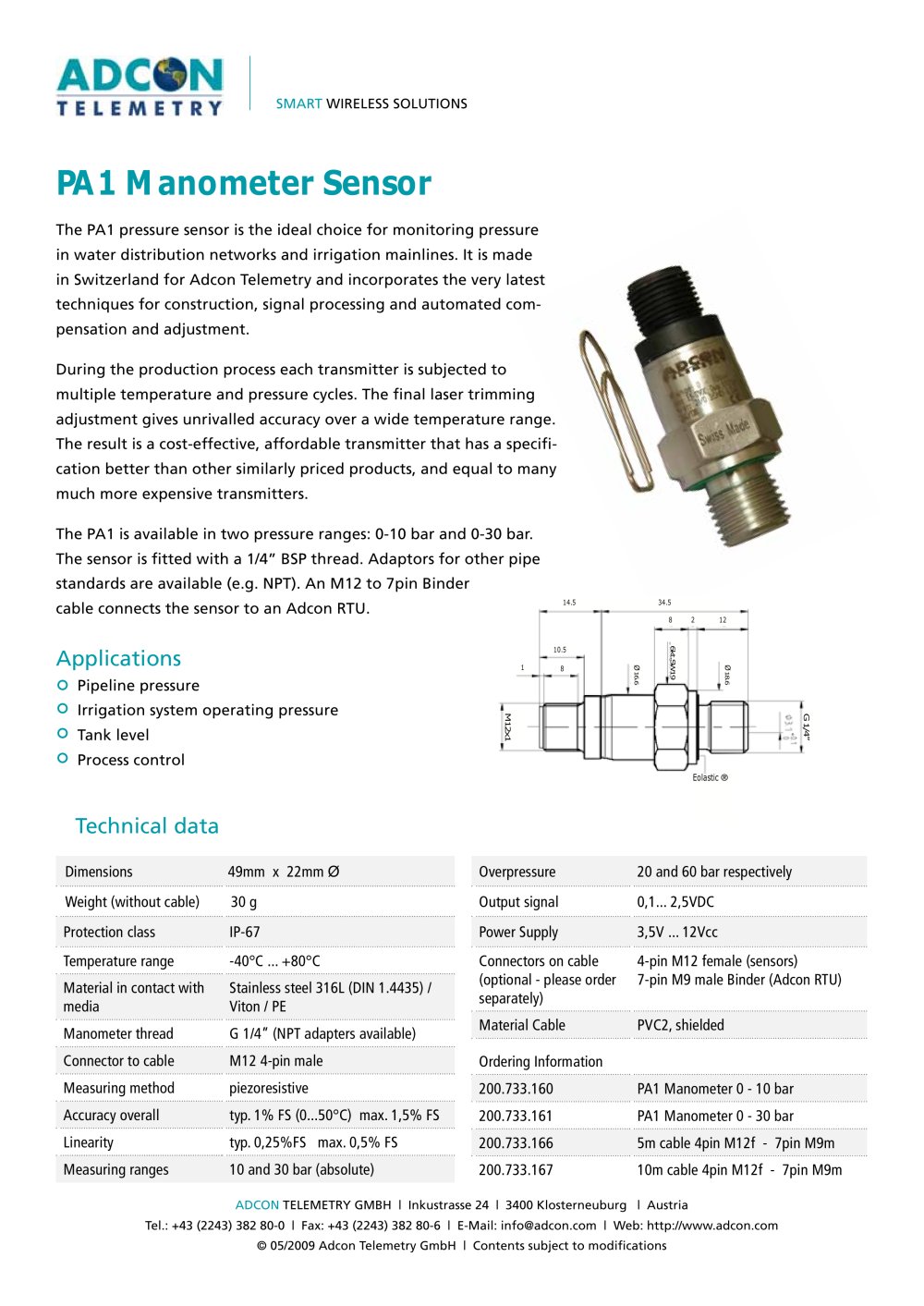

Adcon PA1 Manometer Sensor

Product catalog summary

Overview: The PA1 pressure sensor is designed for monitoring pressure in water distribution networks and irrigation systems. Manufactured in Switzerland for Adcon Telemetry, it features advanced construction, signal processing, and automated compensation techniques.

Specifications:

Pressure Ranges: Available in 0-10 bar and 0-30 bar.
Thread: 1/4” BSP with available adaptors for other standards like NPT.
Dimensions: 49mm x 22mm Ø.
Weight: 30 g (without cable).
Protection Class: IP-67.
Temperature Range: -40°C to +80°C.
Material: Stainless steel 316L, Viton, PE.
Measuring Method: Piezoresistive.
Accuracy: Typical 1% FS (0...50°C), max 1.5% FS.
Linearity: Typical 0.25% FS, max 0.5% FS.
Overpressure: 20 and 60 bar respectively.
Output Signal: 0.1... 2.5VDC.
Power Supply: 3.5V to 12Vcc.

Applications:

Pipeline pressure monitoring.
Irrigation system operating pressure.
Tank level measurement.
Process control.

Connectivity: The sensor connects to an Adcon RTU via an M12 to 7-pin Binder cable. Optional connectors include 4-pin M12 female for sensors and 7-pin M9 male Binder for Adcon RTU.

Ordering Information:

200.733.160: PA1 Manometer 0 - 10 bar.
200.733.161: PA1 Manometer 0 - 30 bar.
200.733.166: 5m cable 4pin M12f - 7pin M9m.
200.733.167: 10m cable 4pin M12f - 7pin M9m.

Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel.: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: http://www.adcon.com
