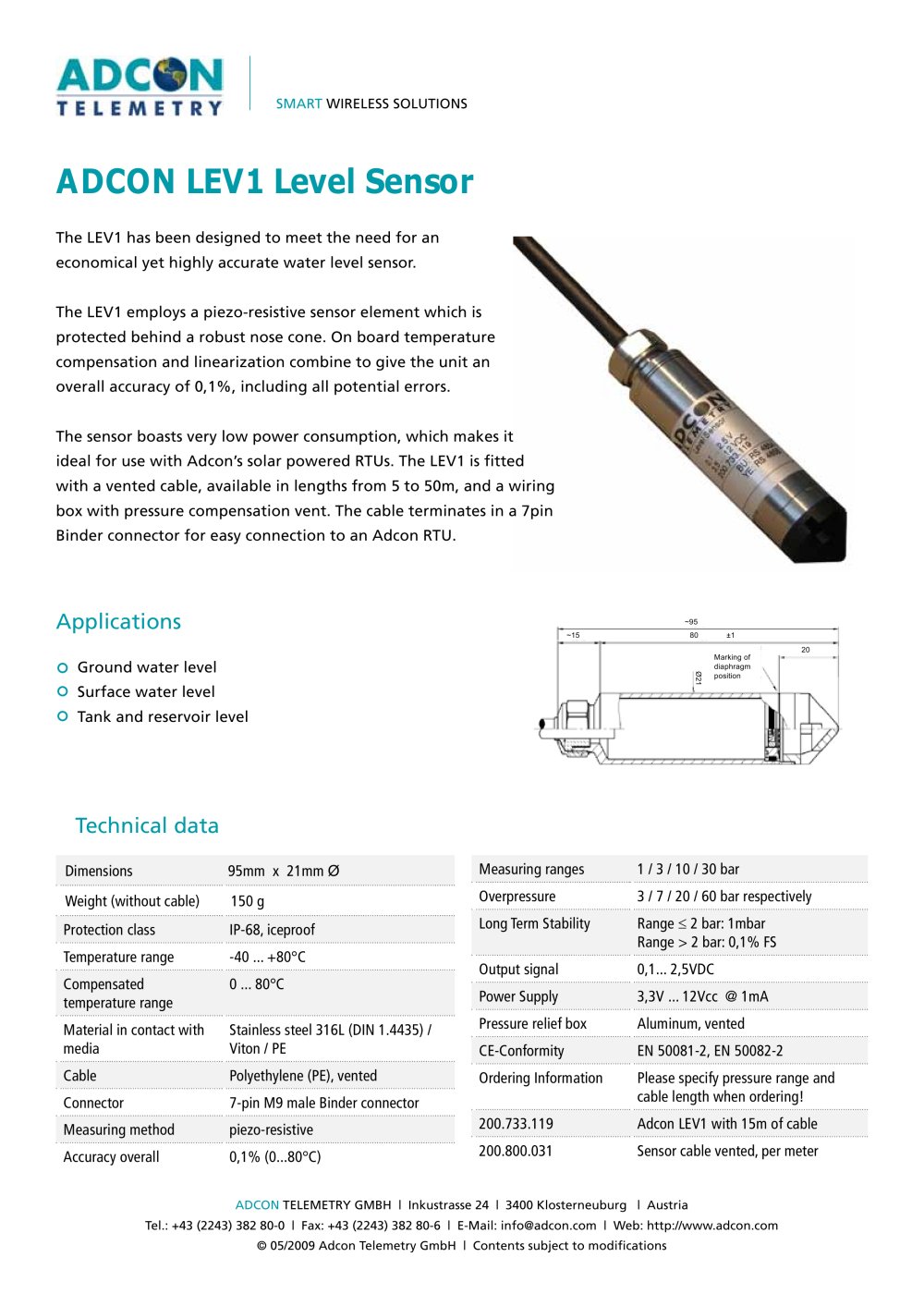

Adcon LEV1 Level Sensor

Product catalog summary

Overview: The ADCON LEV1 Level Sensor is designed for accurate water level measurement, utilizing a piezo-resistive sensor element. It offers high accuracy of 0.1% and low power consumption, making it suitable for solar-powered applications.

Specifications:

Dimensions: 95mm x 21mm Ø
Weight: 150g (without cable)
Protection Class: IP-68, iceproof
Temperature Range: -40 to +80°C
Compensated Temperature Range: 0 to 80°C
Materials: Stainless steel 316L, Viton, PE
Cable: Polyethylene, vented
Connector: 7-pin M9 male Binder connector
Measuring Method: Piezo-resistive
Accuracy: 0.1% (0 to 80°C)
Measuring Ranges: 1 / 3 / 10 / 30 bar
Overpressure: 3 / 7 / 20 / 60 bar respectively
Long Term Stability: ≤ 2 bar: 1mbar, > 2 bar: 0.1% FS
Output Signal: 0.1 to 2.5VDC
Power Supply: 3.3V to 12Vcc @ 1mA
Pressure Relief Box: Aluminum, vented
CE-Conformity: EN 50081-2, EN 50082-2

Applications: Suitable for measuring ground water level, surface water level, and tank and reservoir levels.

Ordering Information: Specify pressure range and cable length when ordering. Example: Adcon LEV1 with 15m of cable (200.733.119).

Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel: +43 (2243) 382 80-0, Email: [email protected], Web: http://www.adcon.com
