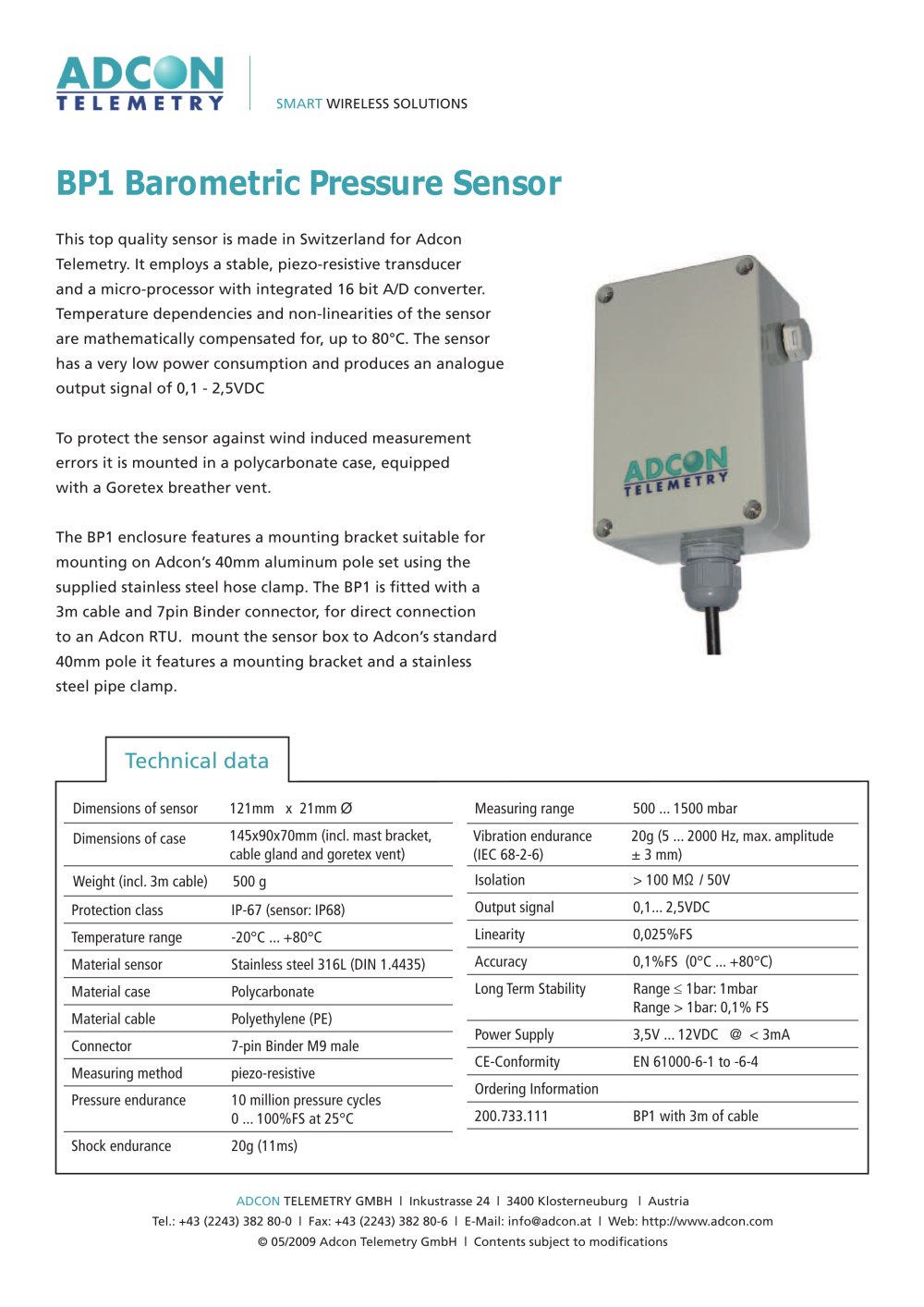

Adcon BP1

Product catalog summary
Overview: The BP1 Barometric Pressure Sensor is a high-quality sensor manufactured in Switzerland for Adcon Telemetry. It utilizes a stable, piezo-resistive transducer and a microprocessor with an integrated 16-bit A/D converter. The sensor compensates for temperature dependencies and non-linearities up to 80°C, ensuring accurate readings.
Specifications:
  • Output Signal: 0.1 - 2.5VDC
  • Power Consumption: Less than 3mA at 3.5V - 12VDC
  • Measuring Range: 500 - 1500 mbar
  • Accuracy: 0.1%FS (0°C to +80°C)
  • Linearity: 0.025%FS
  • Long Term Stability: ≤ 1mbar for range ≤ 1bar; 0.1% FS for range > 1bar
  • Pressure Endurance: 10 million cycles at 0 - 100%FS at 25°C
  • Shock Endurance: 20g (11ms)
  • Vibration Endurance: 20g (5 - 2000 Hz, max. amplitude ± 3 mm)
  • Isolation: > 100 MΩ / 50V
Design and Construction:
  • Sensor Material: Stainless steel 316L (DIN 1.4435)
  • Case Material: Polycarbonate
  • Cable Material: Polyethylene (PE)
  • Protection Class: IP-67 (sensor: IP68)
  • Dimensions: Sensor - 121mm x 21mm Ø; Case - 145x90x70mm
  • Weight: 500g (including 3m cable)
Installation and Connectivity: The sensor is housed in a polycarbonate case with a Goretex breather vent to prevent wind-induced errors. It includes a mounting bracket for attachment to Adcon’s 40mm aluminum pole set using a stainless steel hose clamp. The BP1 is equipped with a 3m cable and a 7-pin Binder connector for direct connection to an Adcon RTU.
Compliance and Ordering: The BP1 complies with CE standards EN 61000-6-1 to -6-4. It is available for order with a 3m cable under the code 200.733.111.
Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: http://www.adcon.com
