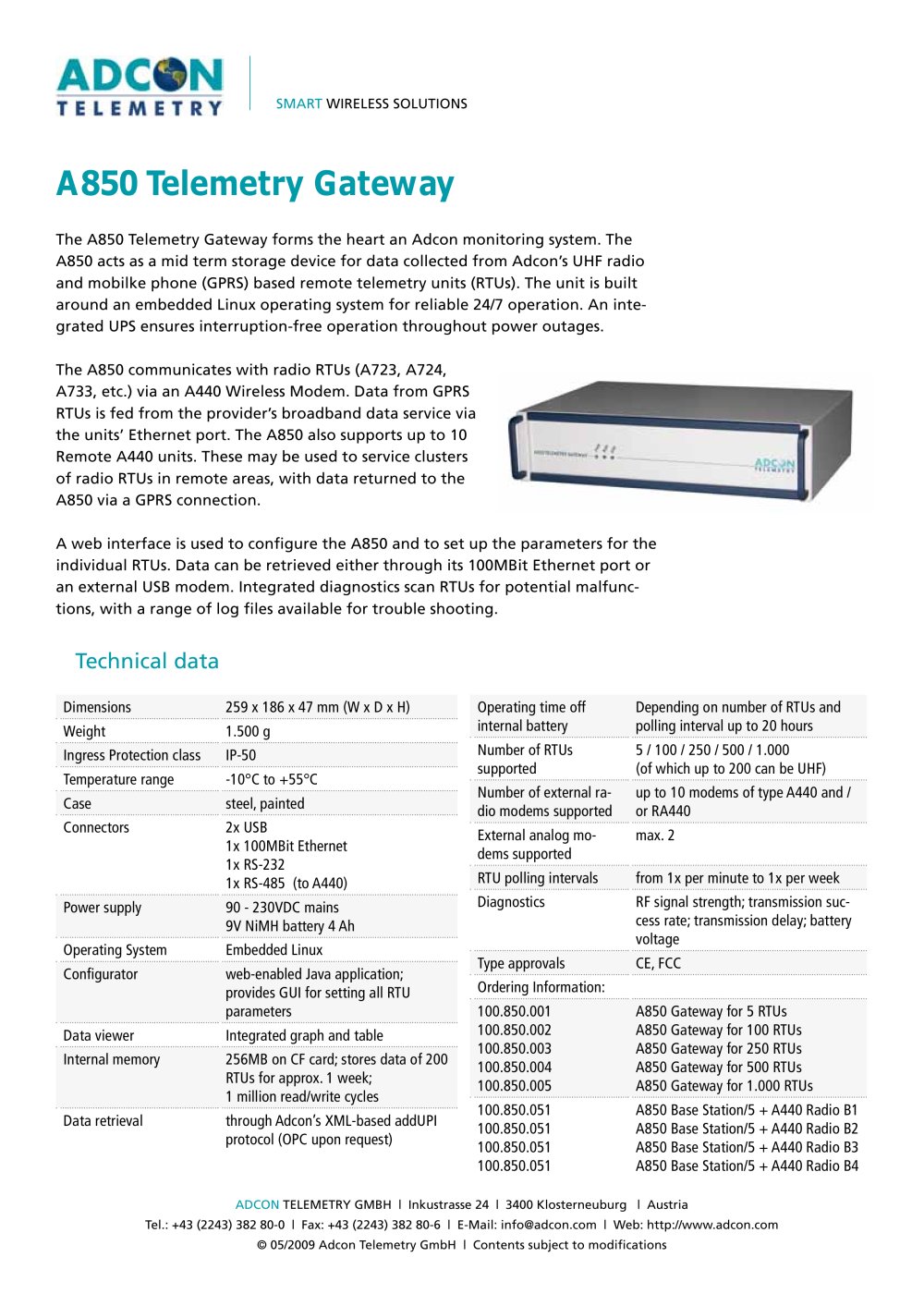

A850 Telemetry Gateway

Product catalog summary
Overview: The A850 Telemetry Gateway is a central component of the Adcon monitoring system, designed for mid-term data storage from UHF radio and GPRS-based remote telemetry units (RTUs). It operates on an embedded Linux system, ensuring reliable 24/7 functionality, and includes an integrated UPS for uninterrupted operation during power outages.
Communication and Configuration: The A850 communicates with radio RTUs via an A440 Wireless Modem and supports data input from GPRS RTUs through an Ethernet port. It can manage up to 10 Remote A440 units for servicing remote RTU clusters. Configuration is managed through a web interface, allowing parameter setup for individual RTUs. Data retrieval is possible via Ethernet or USB modem, and diagnostics are available for troubleshooting.
Specifications:
  • Dimensions: 259 x 186 x 47 mm
  • Weight: 1.500 g
  • Ingress Protection: IP-50
  • Temperature Range: -10°C to +55°C
  • Connectors: 2x USB, 1x 100MBit Ethernet, 1x RS-232, 1x RS-485
  • Power Supply: 90 - 230VDC mains, 9V NiMH battery
  • Internal Memory: 256MB CF card, stores data for 200 RTUs for approximately 1 week
  • Operating Time on Battery: Up to 20 hours
  • RTU Support: 5 to 1,000 RTUs, with up to 200 UHF
  • External Modem Support: Up to 10 A440/RA440 modems, max 2 analog modems
  • Polling Intervals: From 1x per minute to 1x per week
  • Diagnostics: RF signal strength, transmission success rate, delay, battery voltage
  • Type Approvals: CE, FCC
Ordering Information: Various configurations are available, supporting different numbers of RTUs, from 5 to 1,000, with additional options for base stations and radio configurations.
Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: http://www.adcon.com
