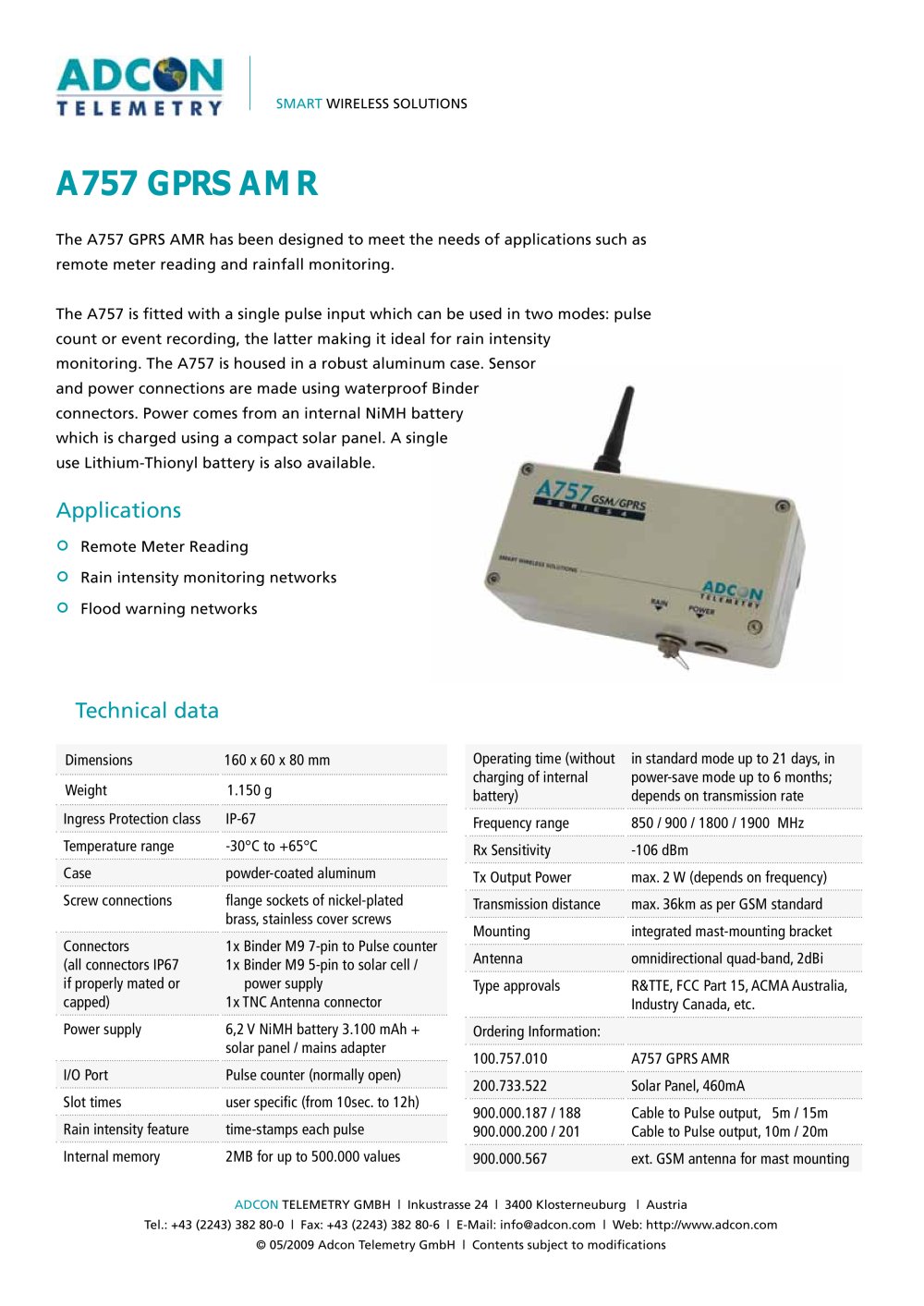

A757 addPULSE GPRS

Product catalog summary

Overview: The A757 GPRS AMR is designed for remote meter reading and rainfall monitoring applications. It features a single pulse input for pulse count or event recording, making it suitable for rain intensity monitoring. The device is housed in a robust aluminum case with waterproof connectors and is powered by an internal NiMH battery charged via a solar panel, with an optional Lithium-Thionyl battery.

Applications: The A757 is used in remote meter reading, rain intensity monitoring networks, and flood warning networks.

Specifications:

Dimensions: 160 x 60 x 80 mm
Weight: 1.150 g
Ingress Protection: IP-67
Temperature Range: -30°C to +65°C
Case Material: Powder-coated aluminum
Connectors: IP67 rated Binder connectors
Power Supply: 6.2 V NiMH battery (3,100 mAh) with solar panel/mains adapter
I/O Port: Pulse counter (normally open)
Internal Memory: 2MB for up to 500,000 values
Operating Time: Up to 21 days in standard mode, up to 6 months in power-save mode
Frequency Range: 850 / 900 / 1800 / 1900 MHz
Rx Sensitivity: -106 dBm
Tx Output Power: Max. 2 W
Transmission Distance: Max. 36 km as per GSM standard
Antenna: Omnidirectional quad-band, 2dBi
Type Approvals: R&TTE, FCC Part 15, ACMA Australia, Industry Canada

Ordering Information: The document provides part numbers for the A757 GPRS AMR, solar panel, and various cable lengths, as well as an external GSM antenna for mast mounting.

Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel.: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: http://www.adcon.com
