A755 addSDI GPRS

A755 addSDI GPRS
1 / 1 PageView full catalog

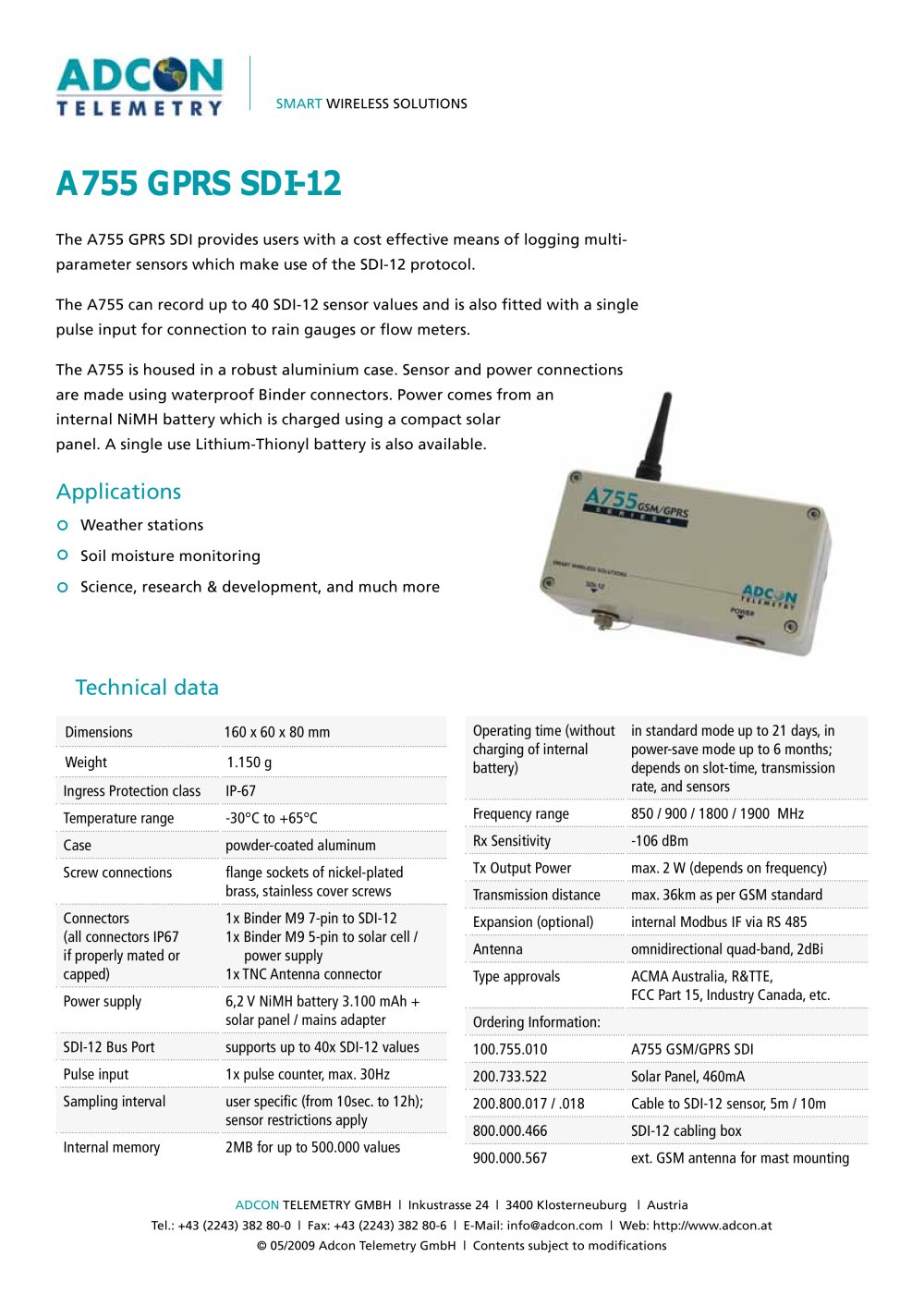

A755 addSDI GPRS

Product catalog summary
Overview: The A755 GPRS SDI-12 is a cost-effective data logger designed for multi-parameter sensors using the SDI-12 protocol. It can record up to 40 sensor values and includes a pulse input for rain gauges or flow meters. The device is housed in a durable aluminum case with waterproof connectors and is powered by an internal NiMH battery, rechargeable via a solar panel or a single-use Lithium-Thionyl battery.
Applications: The A755 is suitable for weather stations, soil moisture monitoring, and various scientific research and development applications.
Technical Specifications:
  • Dimensions: 160 x 60 x 80 mm
  • Weight: 1.150 g
  • Ingress Protection: IP-67
  • Temperature Range: -30°C to +65°C
  • Case Material: Powder-coated aluminum
  • Connectors: IP67 rated Binder connectors for SDI-12 and power supply, TNC antenna connector
  • Power Supply: 6.2 V NiMH battery (3,100 mAh) with solar panel/mains adapter
  • SDI-12 Bus Port: Supports up to 40 values
  • Pulse Input: 1x pulse counter, max. 30Hz
  • Sampling Interval: User-specific (10 sec to 12 hours)
  • Internal Memory: 2MB for up to 500,000 values
  • Operating Time: Up to 21 days in standard mode, up to 6 months in power-save mode
  • Frequency Range: 850/900/1800/1900 MHz
  • Rx Sensitivity: -106 dBm
  • Tx Output Power: Max. 2 W
  • Transmission Distance: Max. 36 km as per GSM standard
  • Expansion: Optional internal Modbus IF via RS 485
  • Antenna: Omnidirectional quad-band, 2dBi
  • Type Approvals: ACMA Australia, R&TTE, FCC Part 15, Industry Canada
Ordering Information:
  • 100.755.010 A755 GSM/GPRS SDI
  • 200.733.522 Solar Panel, 460mA
  • 200.800.017 / .018 Cable to SDI-12 sensor, 5m / 10m
  • 800.000.466 SDI-12 cabling box
  • 900.000.567 External GSM antenna for mast mounting
