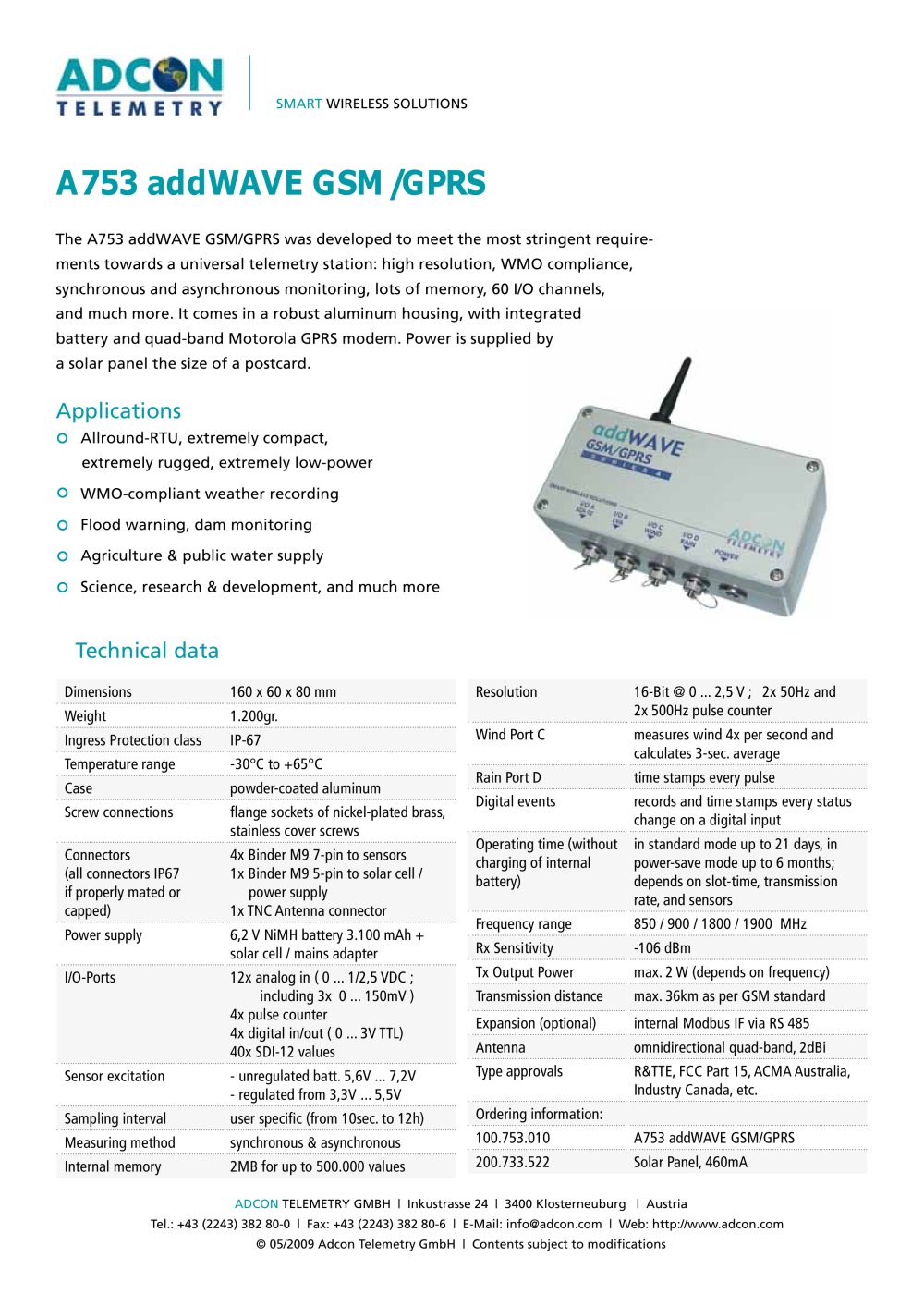

A753 addWAVE GPRS

Product catalog summary
Overview: The A753 addWAVE GSM/GPRS is a versatile telemetry station designed to meet high standards, including WMO compliance. It features high resolution, extensive memory, and 60 I/O channels, housed in a durable aluminum casing with an integrated battery and quad-band Motorola GPRS modem. It is powered by a compact solar panel.
Applications: The device is suitable for various applications such as weather recording, flood warning, dam monitoring, agriculture, public water supply, and scientific research.
Specifications:
  • Dimensions: 160 x 60 x 80 mm
  • Weight: 1,200 grams
  • Ingress Protection: IP-67
  • Temperature Range: -30°C to +65°C
  • Material: Powder-coated aluminum with nickel-plated brass connectors
  • Power Supply: 6.2 V NiMH battery (3,100 mAh) with solar cell/mains adapter
  • I/O Ports: 12 analog inputs, 4 pulse counters, 4 digital I/O, 40 SDI-12 values
  • Internal Memory: 2MB for up to 500,000 values
  • Resolution: 16-Bit at 0-2.5 V
  • Operating Time: Up to 21 days in standard mode, up to 6 months in power-save mode
  • Frequency Range: 850/900/1800/1900 MHz
  • Rx Sensitivity: -106 dBm
  • Tx Output Power: Max 2 W
  • Transmission Distance: Max 36 km
  • Expansion: Optional internal Modbus IF via RS 485
  • Antenna: Omnidirectional quad-band, 2dBi
Certifications: The device has type approvals from R&TTE, FCC Part 15, ACMA Australia, Industry Canada, etc.
Ordering Information: The product can be ordered with the code 100.753.010, and an optional solar panel with the code 200.733.522.
Contact Information: Adcon Telemetry GmbH, Inkustrasse 24, 3400 Klosterneuburg, Austria. Tel: +43 (2243) 382 80-0, Fax: +43 (2243) 382 80-6, Email: [email protected], Web: http://www.adcon.com
