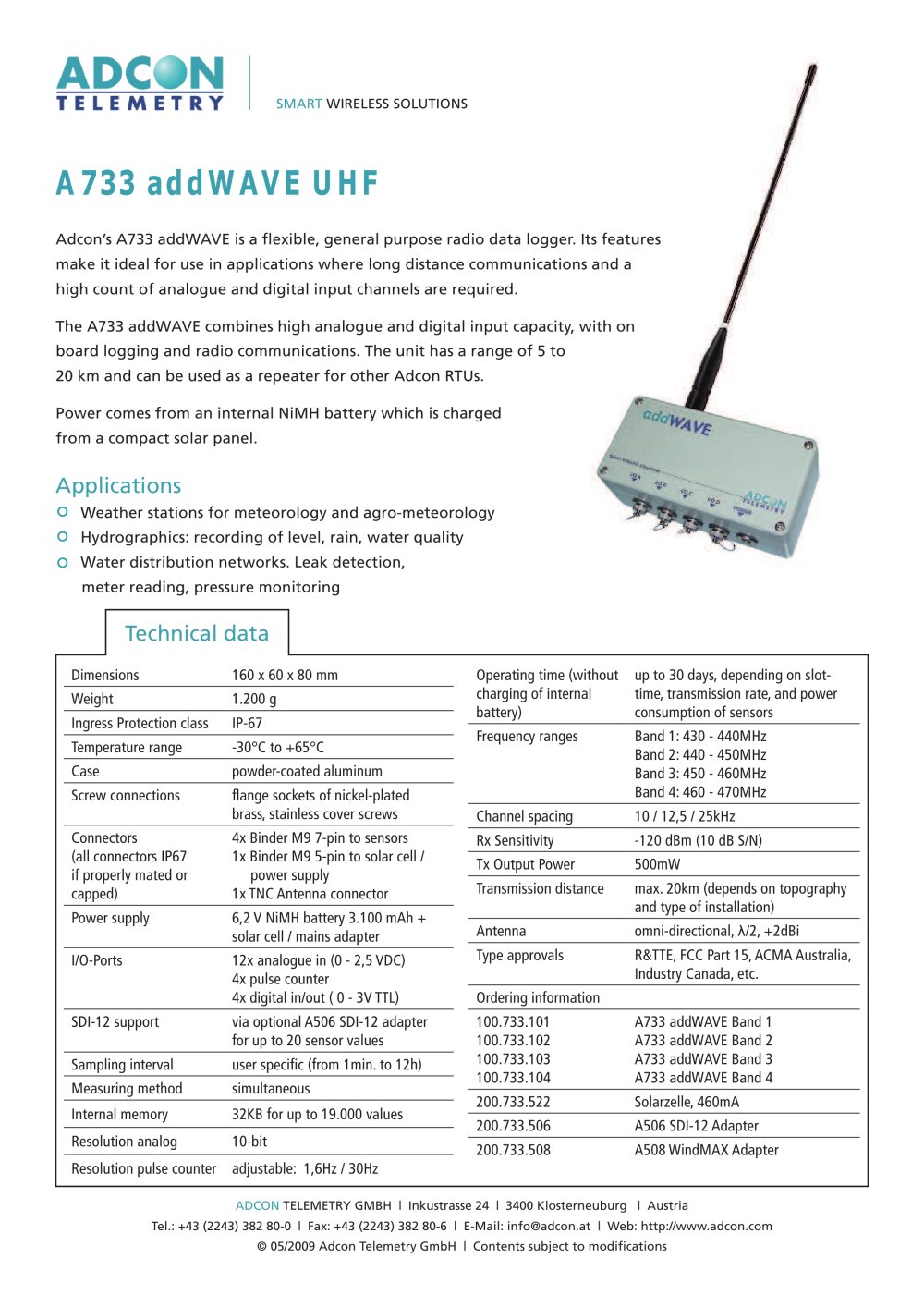

A733 addWAVE

Product catalog summary
Overview: The A733 addWAVE by Adcon is a versatile radio data logger designed for applications requiring long-distance communication and numerous analogue and digital input channels. It features onboard logging and radio communications with a range of 5 to 20 km and can function as a repeater for other Adcon RTUs. It is powered by an internal NiMH battery charged via a solar panel.
Applications: The device is suitable for weather stations, hydrographic data collection, and water distribution network monitoring, including leak detection and pressure monitoring.
Specifications:
  • Dimensions: 160 x 60 x 80 mm
  • Weight: 1,200 g
  • Ingress Protection: IP-67
  • Temperature Range: -30°C to +65°C
  • Case Material: Powder-coated aluminum
  • Connectors: IP67 rated if properly mated or capped
  • Power Supply: 6.2 V NiMH battery (3,100 mAh) with solar cell/mains adapter
  • I/O Ports: 12 analogue inputs, 4 pulse counters, 4 digital in/out ports, SDI-12 support via optional adapter
  • Sampling Interval: User-specific (1 min to 12 hours)
  • Internal Memory: 32KB for up to 19,000 values
  • Resolution: 10-bit for analogue, adjustable for pulse counter
  • Operating Time: Up to 30 days without charging
  • Frequency Ranges: 430-470 MHz across four bands
  • Channel Spacing: 10/12.5/25 kHz
  • Rx Sensitivity: -120 dBm
  • Tx Output Power: 500 mW
  • Transmission Distance: Max 20 km
  • Antenna: Omni-directional, λ/2, +2 dBi
  • Type Approvals: R&TTE, FCC Part 15, ACMA Australia, Industry Canada
Ordering Information: The A733 addWAVE is available in four frequency bands, with additional accessories like the solar cell and SDI-12 adapter available for purchase.
